Installation Procedure

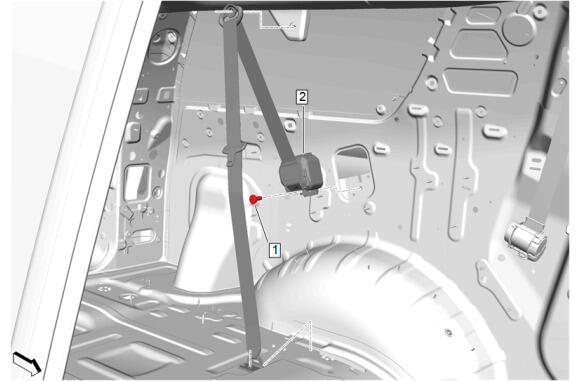

  1. GM5613454Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Belt Retractor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. 3rd Row Seat Belt Retractor Bolt (1) - Install and tighten - Fastener Specifications
  3. GM5580464Courtesy of GENERAL MOTORS COMPANY

    If equipped, connect the electrical connectors and wiring harness retainers.

    4. NOTE:

    Feed the rear seat belt opening bezel and 3rd row seat belt through the quarter lower rear trim panel.

  4. Quarter Lower Rear Trim Panel (1) - Install
  5. GM5580415Courtesy of GENERAL MOTORS COMPANY

    Cargo Tie Down Loop (4) - Install

  6. Cargo Tie Down Loop Bolt (3) - Install and tighten - Fastener Specifications
  7. Cargo Tie Down Loop Bolt Cap (2) - Close
  8. Convenience Net Retainer (1) - Install and tighten - Fastener Specifications
  9. GM5580387Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Belt Guide Bolt (2) - Install and tighten - Fastener Specifications

  10. 3rd Row Seat Belt Retractor Anchor Cover (1) - Close
  11. GM5580388Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Belt Opening Bezel (1) - Install

  12. GM5580384Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat Belt Anchor Bolt (1) - Install and tighten - Fastener Specifications

  13. GM5573197Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (2) - Install

  14. Electrical Connector (1) - Connect
  15. GM5573150Courtesy of GENERAL MOTORS COMPANY

    Body Rear Corner Upper Garnish Molding (1) - Install

  16. GM5573149Courtesy of GENERAL MOTORS COMPANY

    Body Rear Corner Upper Garnish Molding Bolt (1) - Install and tighten - Fastener Specifications

  17. GM5572493Courtesy of GENERAL MOTORS COMPANY

    Body Side Rear Window Garnish Molding Tether Retaining Clip (2) - Install

  18. Body Side Rear Window Garnish Molding Bolt (1) - Install and tighten - Fastener Specifications
  19. GM5572488Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Position the body side rear window garnish molding tether in the same position as before the molding removal.

    Body Side Rear Window Garnish Molding (1) - Install

  20. GM5569959Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

    Body Lock Pillar Upper Trim Panel (1) - Install

  21. GM5569956Courtesy of GENERAL MOTORS COMPANY

    Quarter Window Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications

  22. Quarter Window Trim Finish Panel Bolt Cap (1) - Install
  23. GM5569954Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Belt Opening Bezel (1) - Install

  24. GM5569952Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Belt Retractor Anchor Plate Bolt (2) - Install and tighten - Fastener Specifications

  25. Rear Seat Belt Retractor Sleeve (1) - Reposition
  26. GM5577844Courtesy of GENERAL MOTORS COMPANY

    Rear End Trim Finish Panel (1) - Install

  27. GM5577843Courtesy of GENERAL MOTORS COMPANY

    Liftgate Lock Striker Cover (1) - Install

  28. GM5577842Courtesy of GENERAL MOTORS COMPANY

    Liftgate Weatherstrip (1) - Reposition

  29. GM5607362Courtesy of GENERAL MOTORS COMPANY

    Return the rear seat (1) to the original position.

  30. GM5562688Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Sill Garnish Molding (1) - Install

  31. Enable the SIR System. SIR Disabling and Enabling
  32. GM5598917Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat (2) - Install - 3rd Row Seat Removal and Installation
