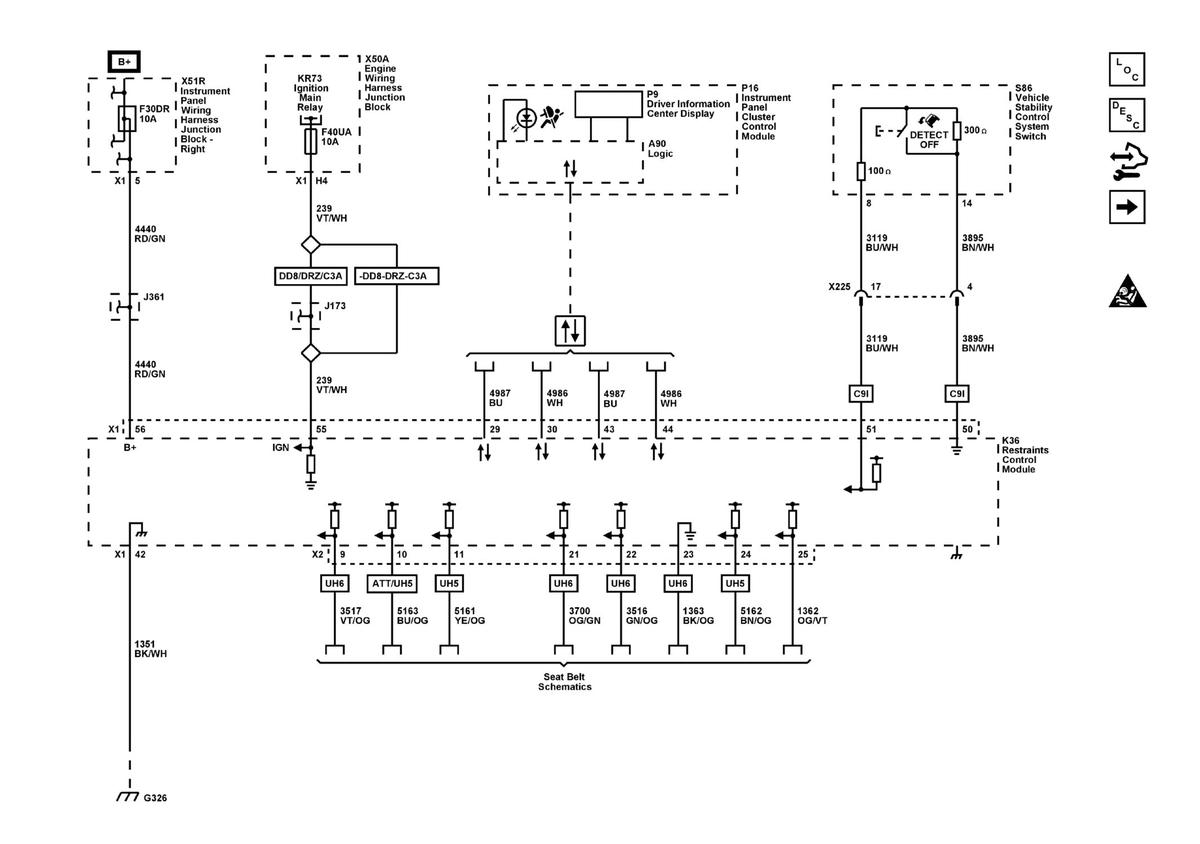

Module Power, Ground, Serial Data, Controls, Indicators, and Subsystem References

GM5371288

Courtesy of GENERAL MOTORS COMPANY
