Removal Procedure
WARNING:
Do not strike or jolt the Restraints Control Module (RCM). Before applying power to the RCM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs.
WARNING:
Refer to SIR Warning .
- Disable the SIR system. SIR Disabling and Enabling
- Front Floor Console - Remove - Front Floor Console Removal and Installation (DCK, D07)Front Floor Console Removal and Installation (DCH)

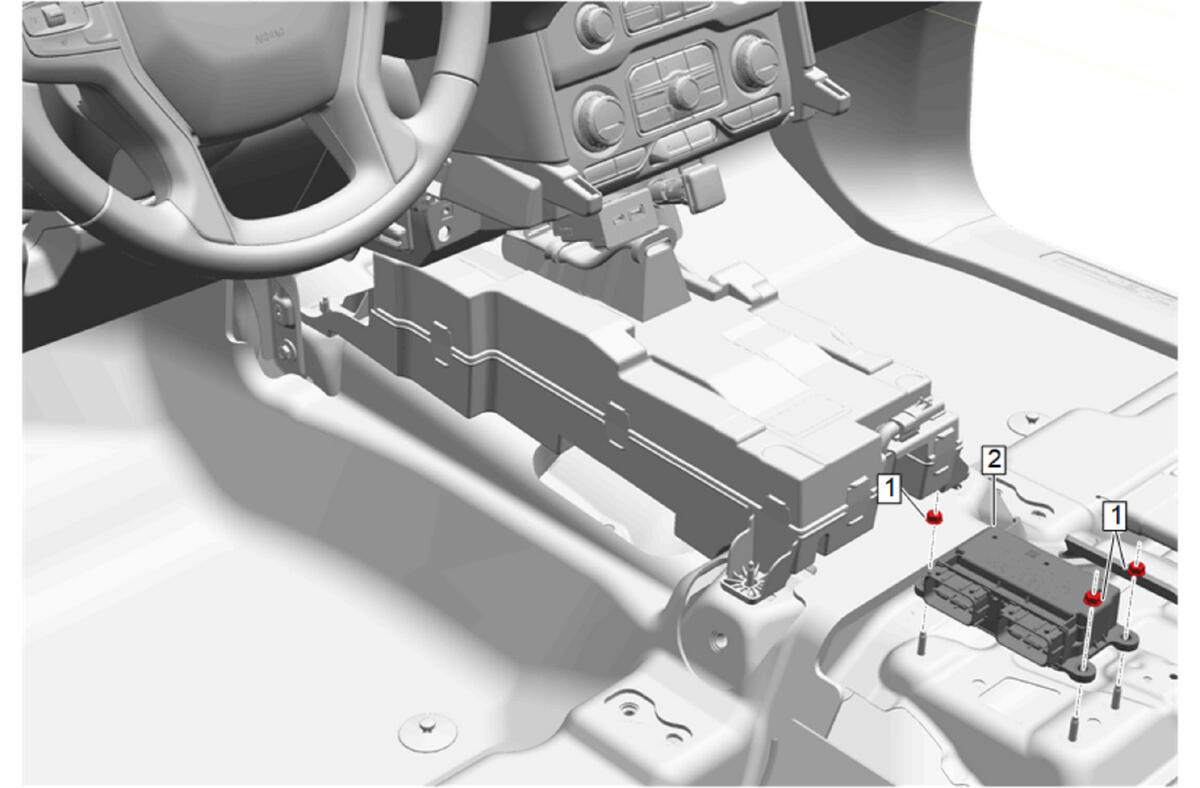

Airbag Sensing and Diagnostic Module Nut(1) - Remove [3x]
- Restraints Control Module(2) - Remove
- Disconnect the electrical connector.
