Installation Procedure

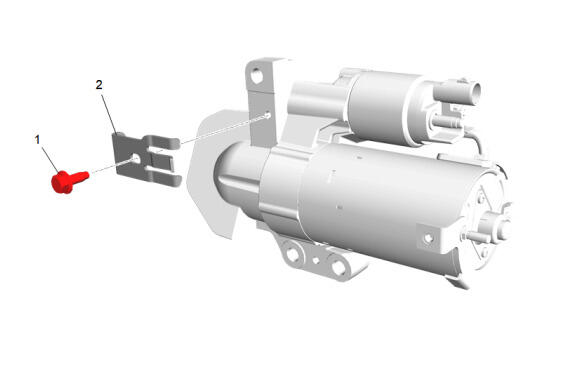

- Starter Shield Retainer (2) - Install
- Starter Shield Bolt (1) - Install and tighten - Fastener Specifications

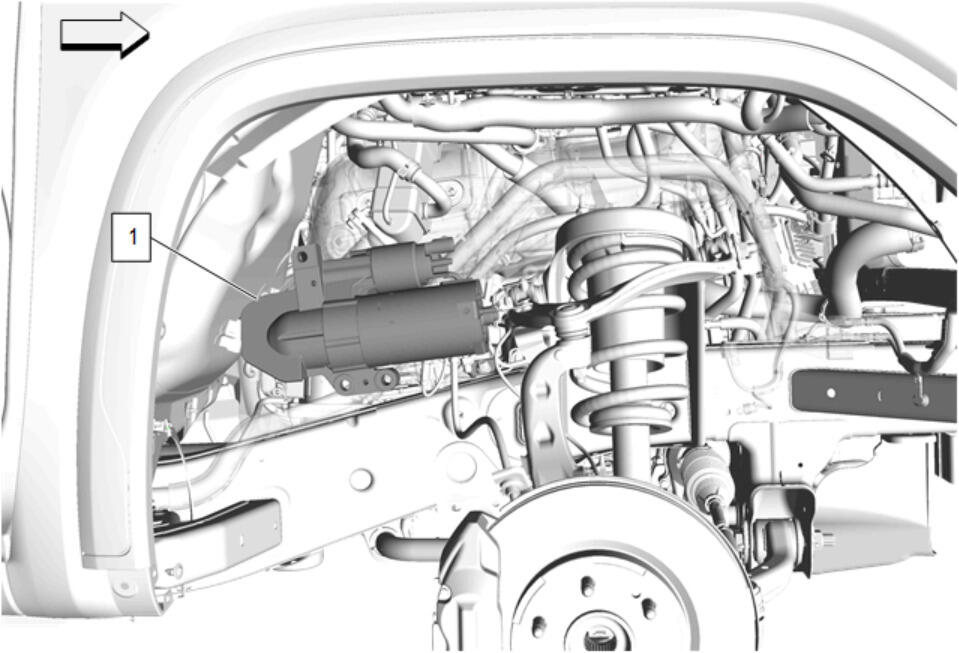

- Install the starter (1) through the wheel well.

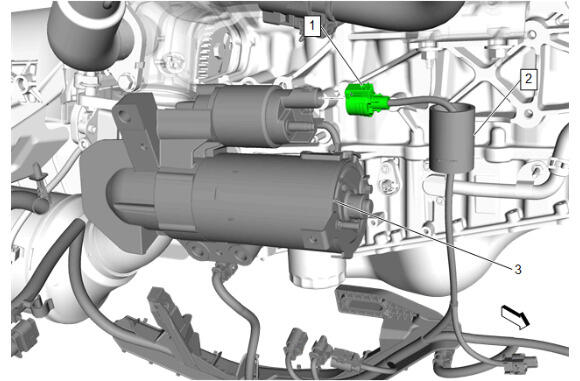

- Electrical Connector (1) - Connect
- Install the protective sleeve (2).

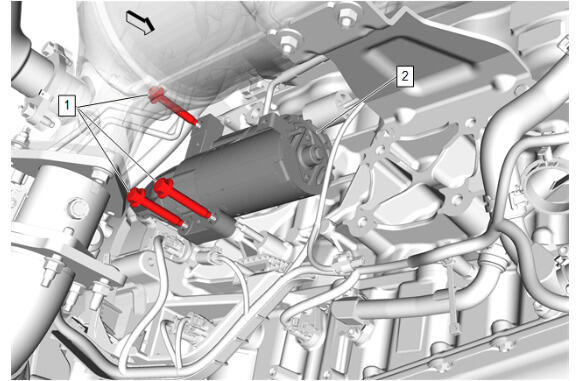

- Starter Bolt (1) - Install and tighten [3x] - Fastener Specifications

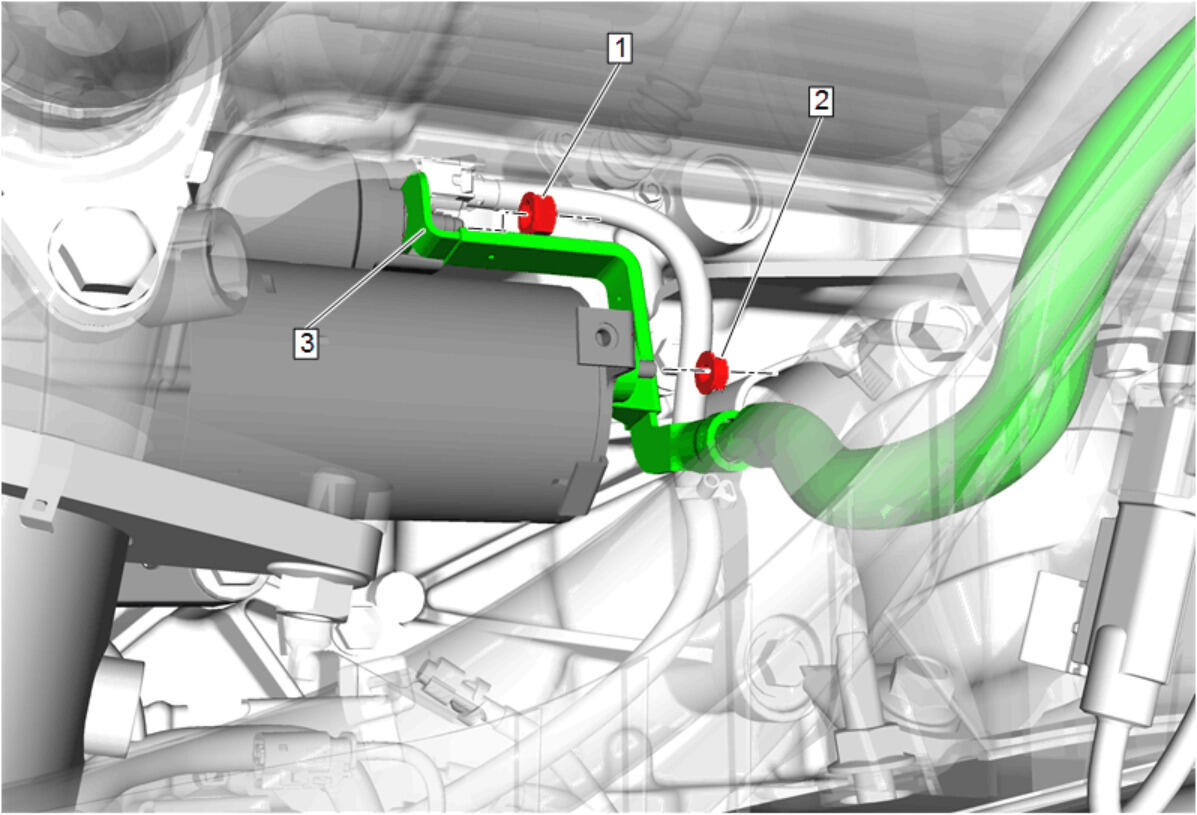

- Starter Solenoid Cable (3) - Install
- Starter Solenoid Cable Nut (1) - Install and tighten - Fastener Specifications
- Wiring Harness Conduit Nut (2) - Install and tighten - Fastener Specifications

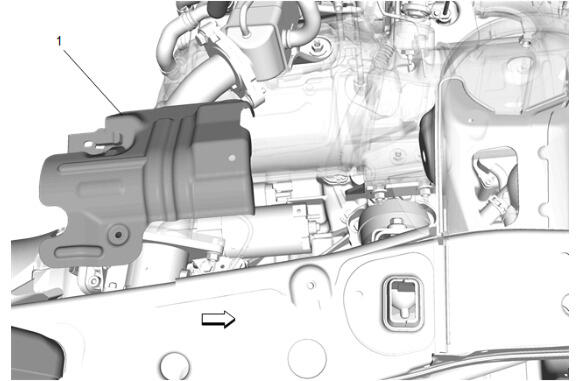

- Starter Heat Shield (1) - Install

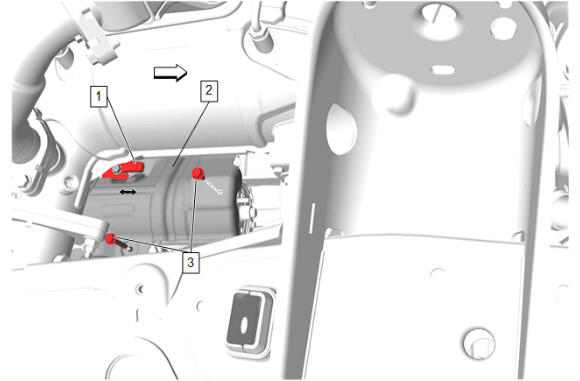

- Engage the starter heat shield (2) into the retainer (1).NOTE:
Components removed for graphic clarity.
- Starter Heat Shield Bolt (3) - Install and tighten [2x] - Fastener Specifications

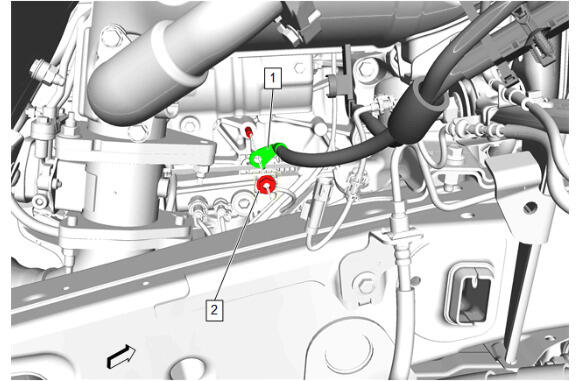

- Starter Solenoid Cable (1) - Install
- Engine Wiring Harness Ground Nut (2) - Install and tighten - Fastener Specifications

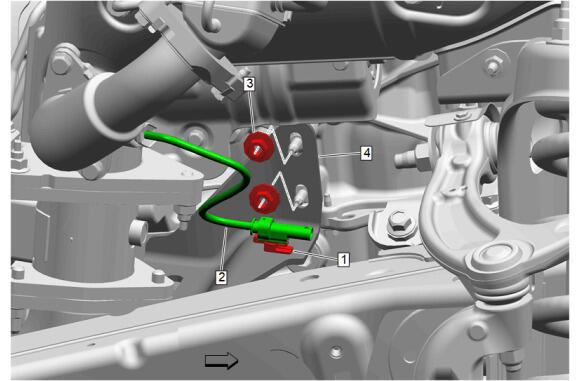

- Catalytic Converter Brace Bracket (4) - Install
- Catalytic Converter Brace Bracket Nut (3) - Install and tighten [2x] - Fastener Specifications

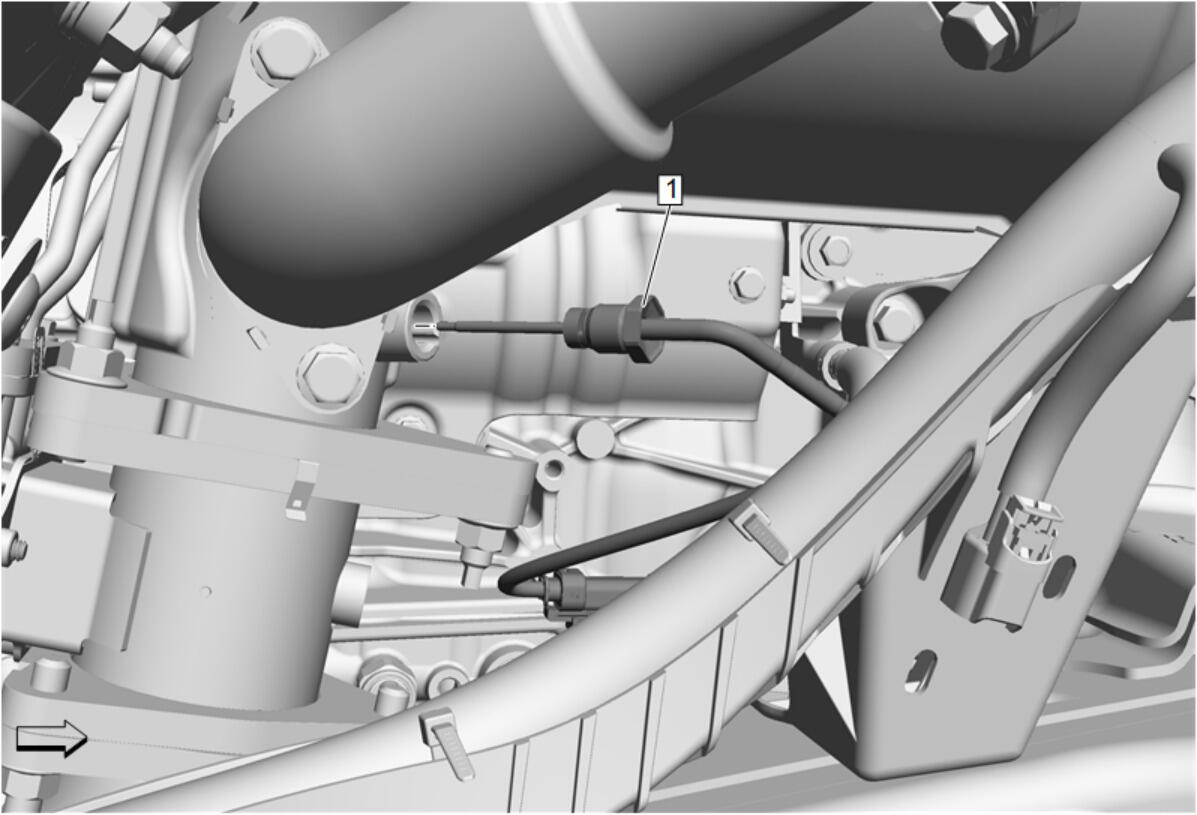

- Exhaust Temperature Sensor - Position 3 (1) - Install and tighten - Fastener Specifications
- Wiring Harness Retainer (1) @Catalytic Converter Brace Bracket (4) - Install
- Exhaust Front Pipe Nut (1) - Install and tighten [2x] - Fastener Specifications

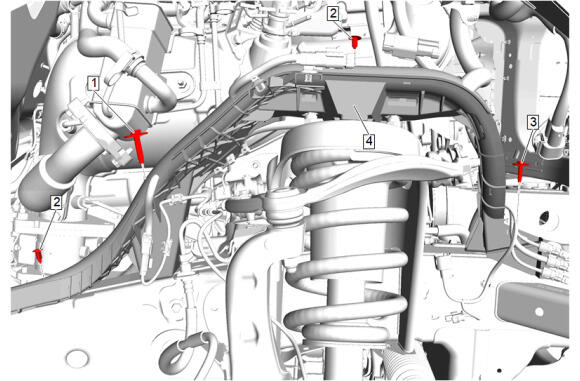

- Chassis Wiring Harness (4) - Install
- Install the positive battery cable retainers to the chassis wiring harness front bracket.
- Chassis Front Wiring Harness Bracket Bolt- Front (3) - Install and tighten - Fastener Specifications
- Chassis Front Wiring Harness Bracket Bolt- Rear (1) - Install and tighten - Fastener Specifications
- Chassis Wiring Harness Front Bracket Retainer (2) - Install [2x]
- Front Wheelhouse Liner- Right Side - Install - Front Wheelhouse Liner Replacement
- Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
CAUTION:
Refer to Fastener Caution
