Installation Procedure
- Generator Battery Jumper Cable (2) - Install
- Battery Positive Cable Nut (1) @Generator - Install and tighten - Fastener Specifications
- Retainer (3) - Engage

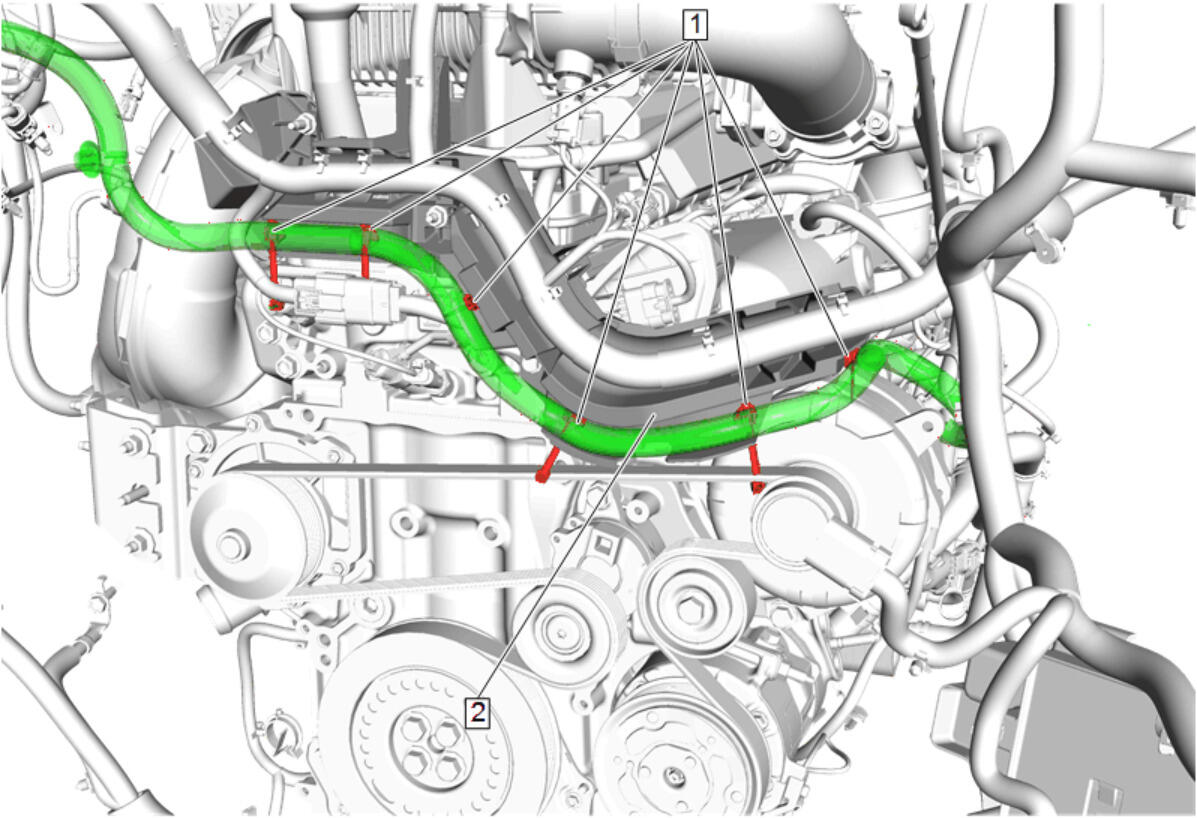

- Retainer (1) @ Engine Harness Channel Conduit (2) - Engage [6x]
- Air Cleaner Lower Housing (1) - Install
- Air Cleaner Nut (1) - Install and tighten - Fastener Specifications
- Accessory Wiring Junction Block (2) - Install
- Engine Wiring Harness Fuse Block Bracket Bolt (1) - Install and tighten - Fastener Specifications
- Electrical Connector (1) @Air Cleaner Lower Housing - Install
- Install all retainers to the air cleaner lower housing.
- Air Cleaner Upper Housing (2) - Install
- Air Cleaner Housing Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Connect the mass airflow sensor electrical connector.

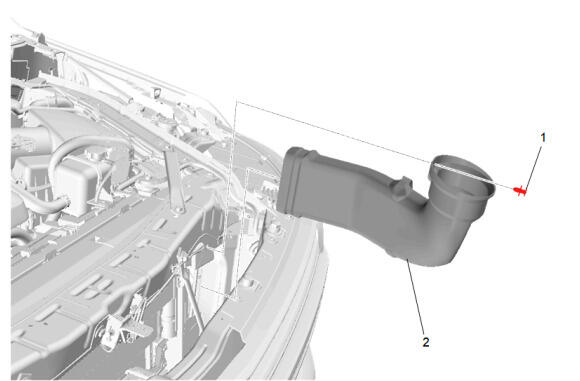

- Intake Air Duct (2) - Install
- Intake Air Duct Retainer (1) - Install
- Intake Air Splash Shield (2) - Install
- Intake Air Baffle Retainer (1) - Install [9x]
- Hood Secondary Latch Release Handle (2) - Install
- Hood Latch Actuator Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Air Cleaner Outlet Front Duct (2) - Install
- Air Cleaner Outlet Duct Clamp (1) - Tighten [2x] - Fastener Specifications

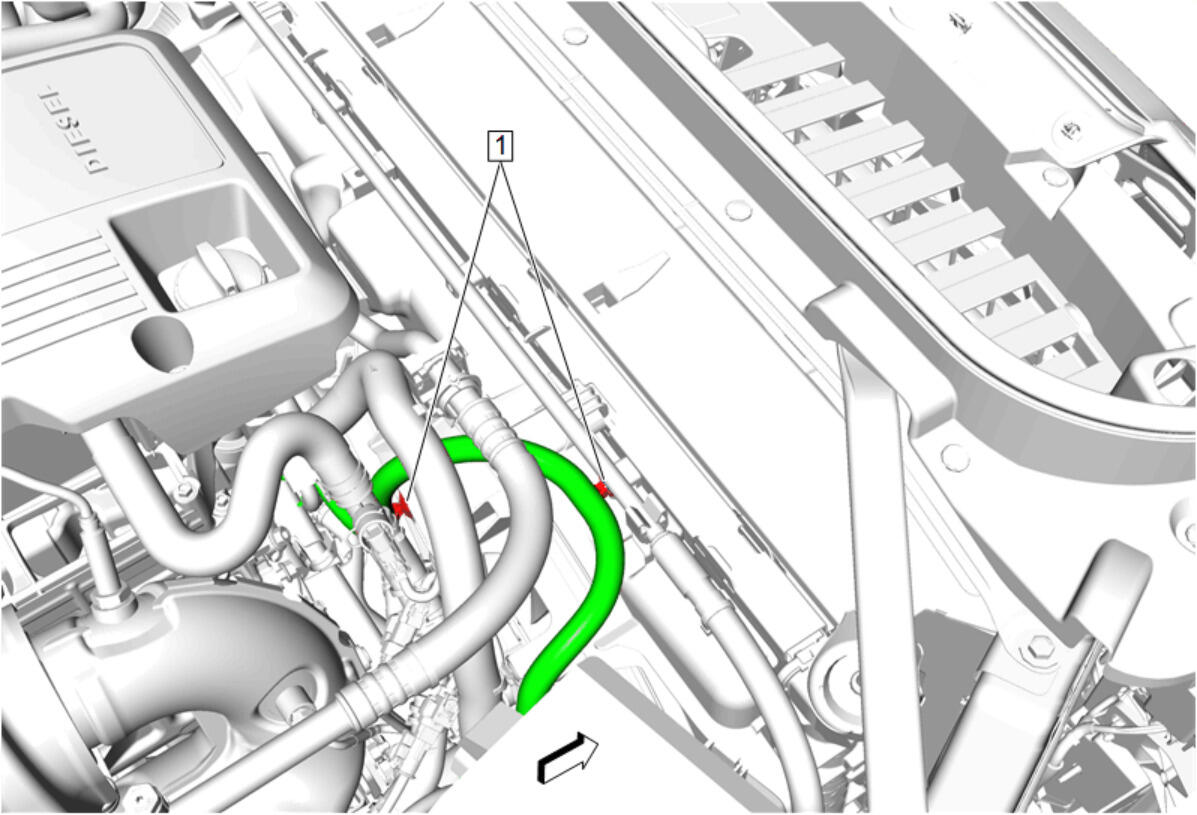

- Retainer (1) - Engage [3x]
- Generator Battery Jumper Cable (3) - Install

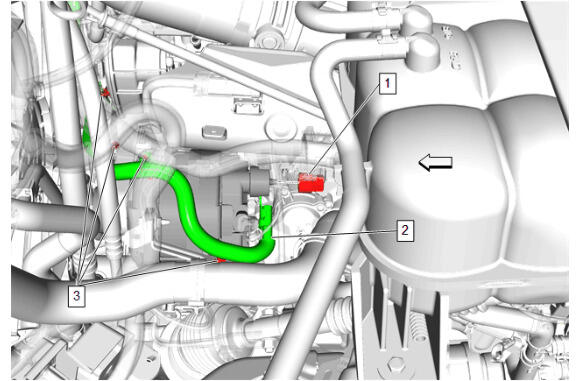

- Battery Positive Cable Nut (2) @Engine Wiring Harness Junction Block - Install and tighten - Fastener Specifications

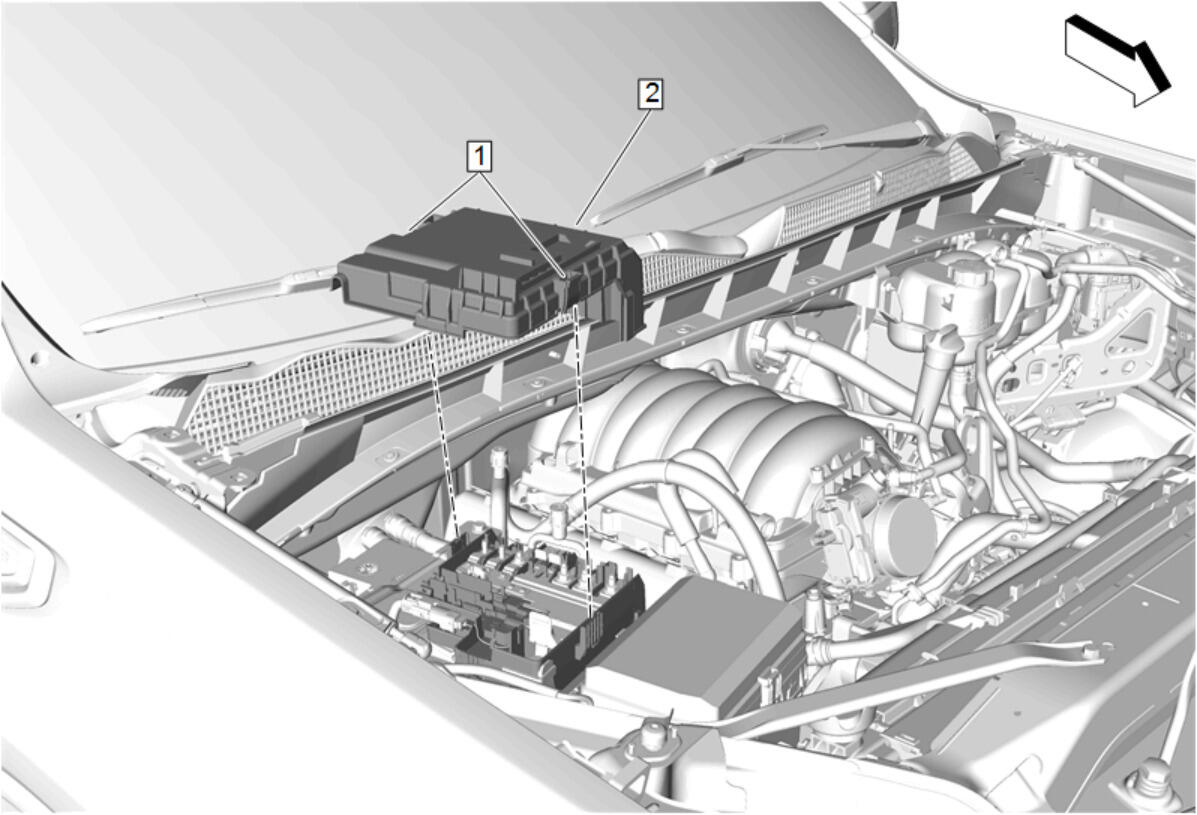

- Engine Wiring Harness Junction Block Cover (1) - Install

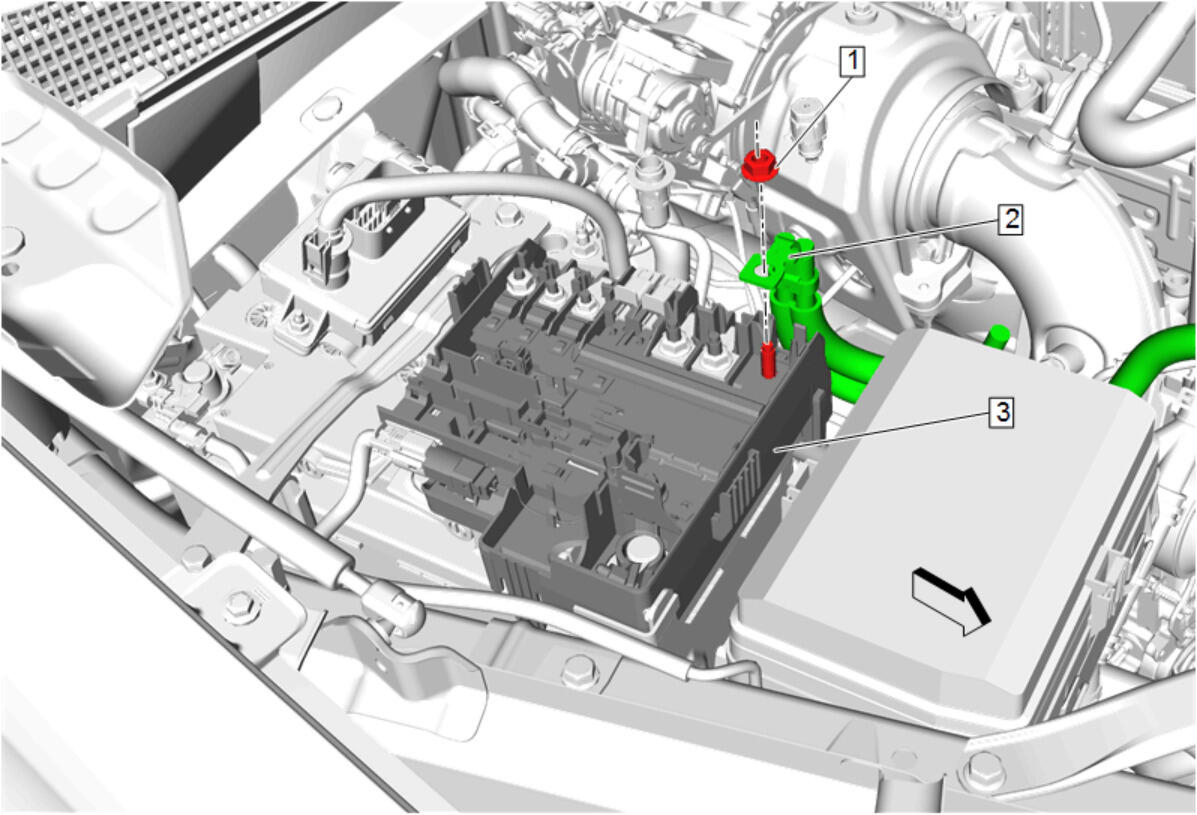

- Generator Battery Jumper Cable (2) - Install

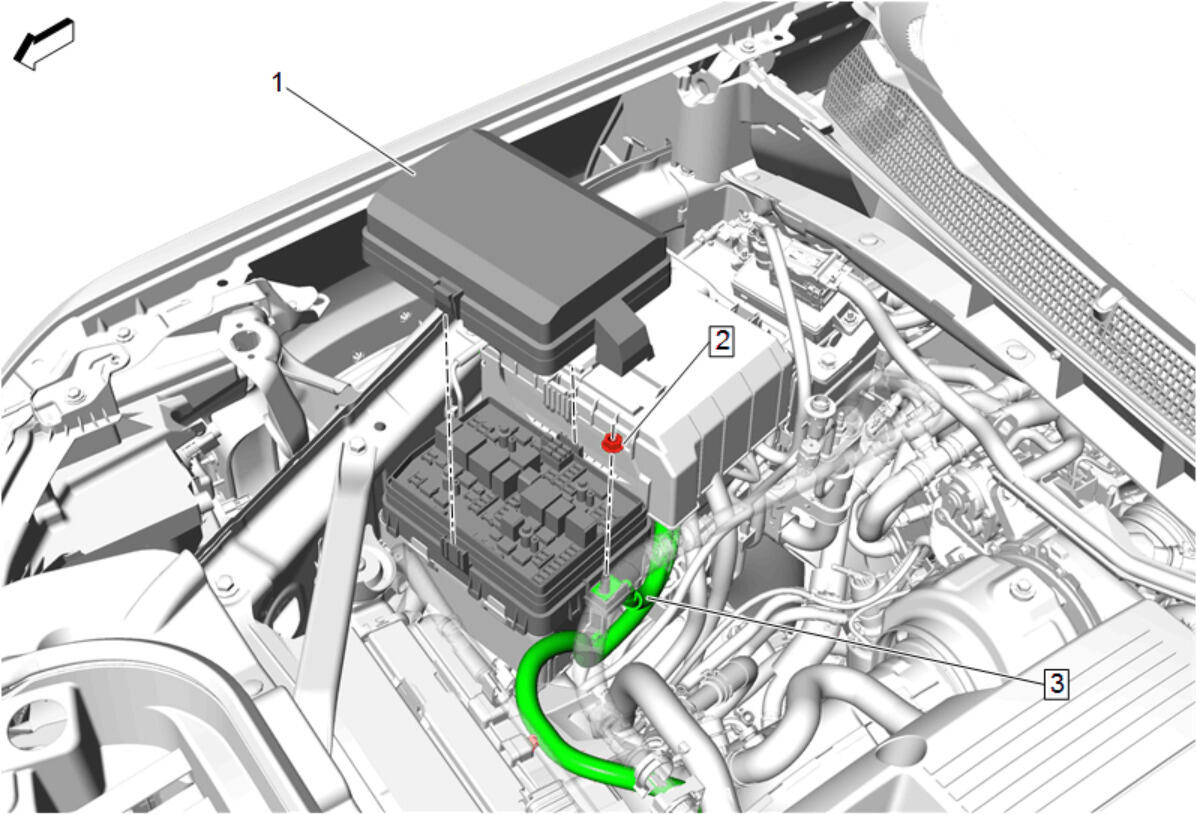

- Battery Positive Cable Nut (1) @Battery Distribution Engine Compartment Fuse Block (3) - Install and tighten - Fastener Specifications
- Front Compartment Fuse Block Cover (2) - Install
- Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
CAUTION:
Refer to Fastener Caution .
