Installation Procedure

  1. Battery Positive and Negative Cable Strap (2) - Install

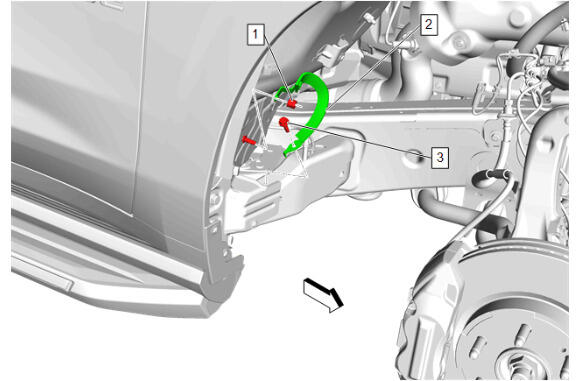

    GM5579657Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution .

  2. Battery Negative Cable Ground Bolt (3) - Install and tighten - Fastener Specifications
  3. Body Ground Stud Nut (1) - Install and tighten - Fastener Specifications
  4. Front Wheelhouse Liner- Right Side (1) - Install
    GM5513756Courtesy of GENERAL MOTORS COMPANY
  5. Front Wheelhouse Liner Bolt- Right Side (1) - Install and tighten [3x] - Fastener Specifications
    GM5513753Courtesy of GENERAL MOTORS COMPANY
  6. Front Wheelhouse Liner Bolt- Right Side (1) - Install and tighten [3x] - Fastener Specifications
    GM5513751Courtesy of GENERAL MOTORS COMPANY
  7. Front Wheelhouse Liner Retainer- Right Side (2) - Install
    GM5513749Courtesy of GENERAL MOTORS COMPANY
  8. Front Wheelhouse Liner Bolt- Right Side (1) - Install and tighten [3x] - Fastener Specifications
  9. Front Wheelhouse Liner Bolt- Right Side (1) - Install and tighten [3x] - Fastener Specifications
    GM5513747Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Quantity of fasteners may vary based on option content.

  10. {If equipped}Front Tire Front Air Deflector Bolt- Right Side (1) - Install and tighten - Fastener Specifications
    GM5522093Courtesy of GENERAL MOTORS COMPANY
  11. Install the right front tire and wheel assembly. Tire and Wheel Removal and Installation (Steel Wheel) , or Tire and Wheel Removal and Installation (Aluminum Wheel)
