Removal Procedure

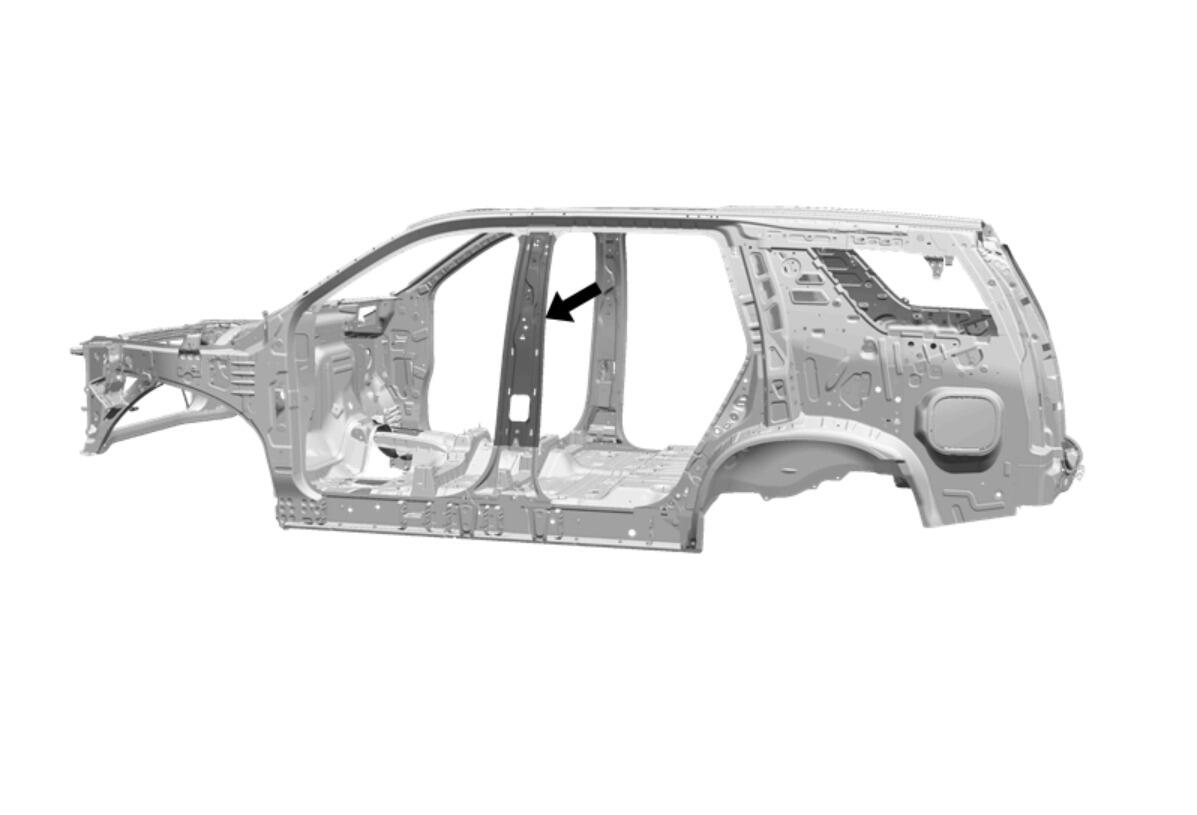

Fig 1: Center Pillar Inner Panel Sectioning Component Location
GM5280799Courtesy of GENERAL MOTORS COMPANY
WARNING:

Refer to Approved Equipment for Collision Repair Warning .

WARNING:

Refer to Collision Sectioning Warning .

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

NOTE:

Left shown, right similar.

NOTE:

The center pillar inner panel is ultra high strength steel. ULTRA HIGH STRENGTH STEEL

NOTE:

Refer to Collision Repair Specifications

  1. Disable the SIR system. SIR Disabling and Enabling .
  2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4)Battery Negative Cable Disconnection and Connection (KL9)
  3. Remove all related panels and components.
  4. Remove bodyside. Body Side Outer Panel Replacement (SWB) Body Side Outer Panel Replacement (LWB) , Body Side Outer Panel Sectioning (SWB) Body Side Outer Panel Sectioning (LWB) , or Center Pillar Sectioning
  5. Remove center pillar outer panel reinforcement. Center Pillar Outer Panel Reinforcement Replacement
  6. Remove the sealers and anti-corrosion materials from the repair area as necessary. Anti-Corrosion Treatment and Repair
    GM5281102Courtesy of GENERAL MOTORS COMPANY
    7. NOTE:

    Do not damage or cut attaching panels and reinforcements.

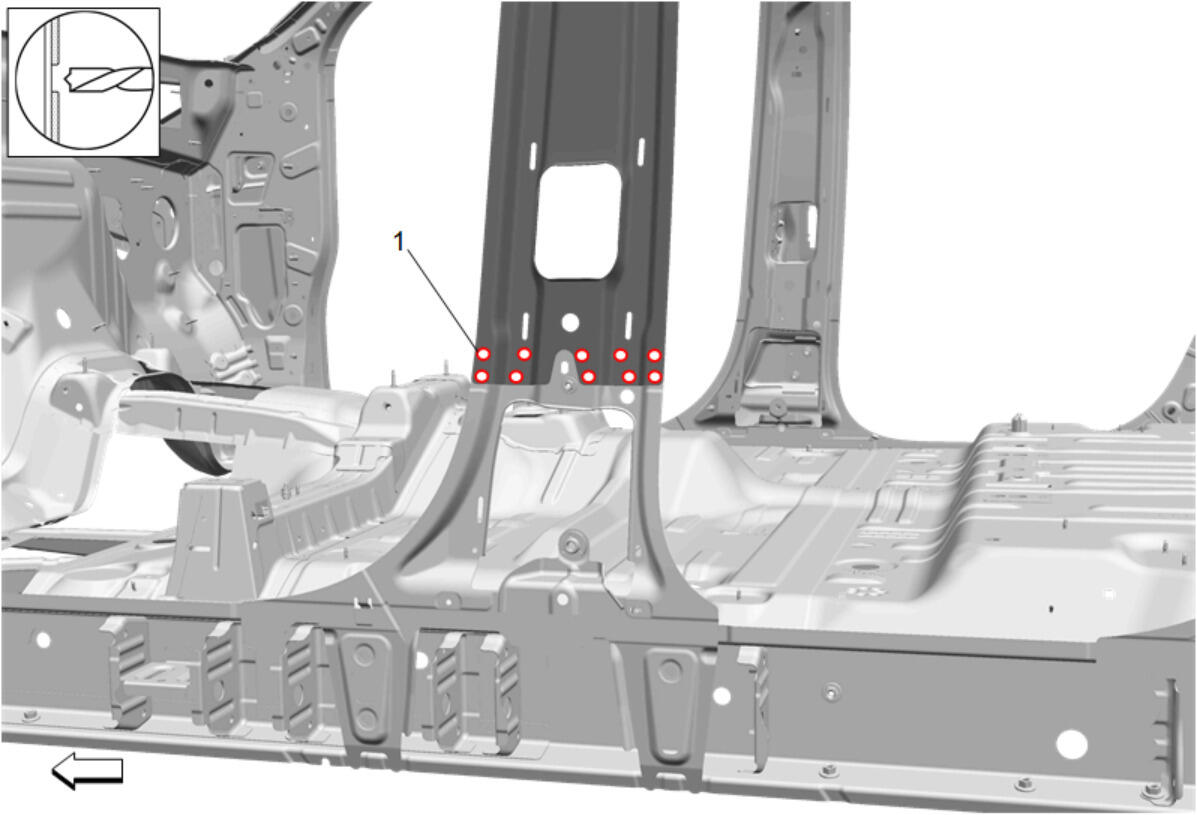

  7. Remove spot welds (1). [10x]
    GM5519168Courtesy of GENERAL MOTORS COMPANY
    8. NOTE:

    Do not damage or cut attaching panels and reinforcements.

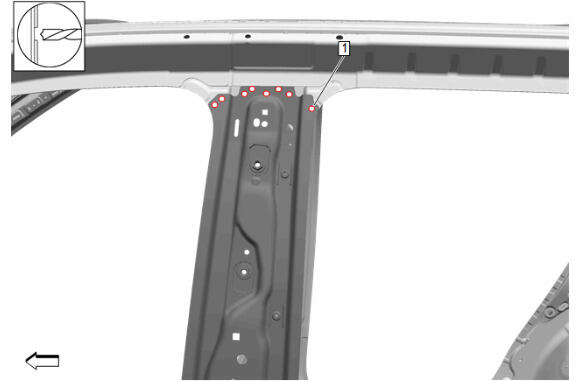

  8. Remove spot welds (1). [8x]
    GM5280800Courtesy of GENERAL MOTORS COMPANY
  9. Remove center pillar inner panel (1) from vehicle.
