Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

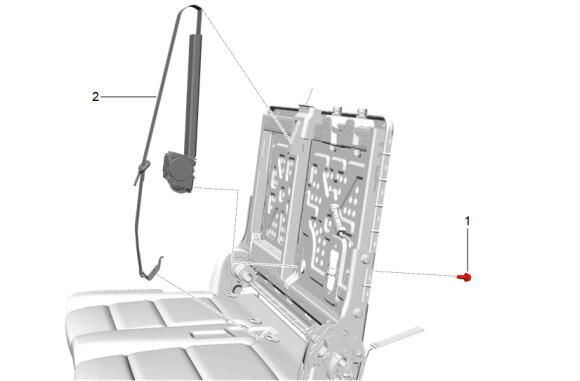

Rear Seat Center Belt Retractor (2) - Install
Feed the rear seat center belt through the rear seat frame.

CAUTION:

Rear Center Seat Belt Buckle Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

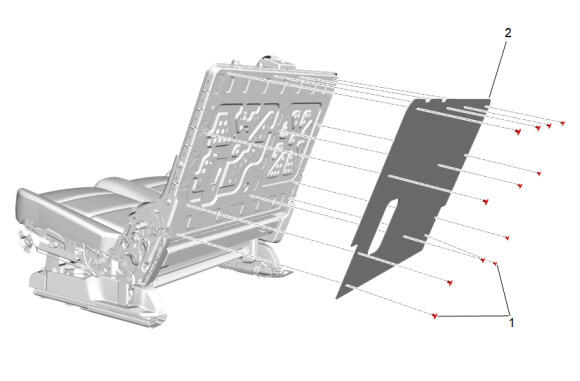

Rear Seat Back Panel (2) - Install
Rear Seat Back Cover Retainer (1) - Install [12x]
Courtesy of GENERAL MOTORS COMPANY

Feed the rear seat center belt through the rear seat belt guide trim cover (2).

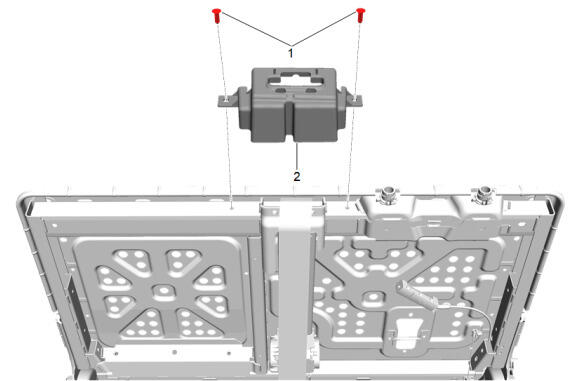

Rear Seat Belt Guide Trim Cover (2) - Install
Rear Seat Back Opening Finish Cover Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

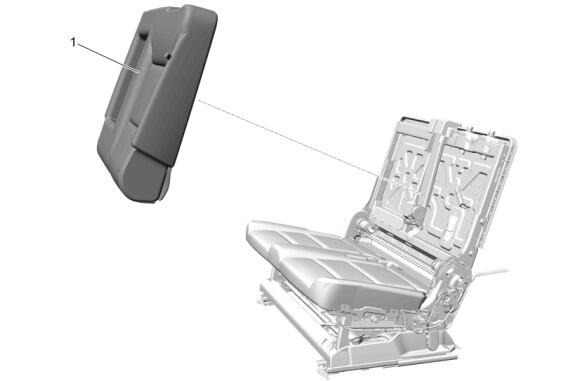

Rear Seat Back Cover and Pad (1) - Install - Rear Seat Back Cover and Pad Removal and Installation (Bucket) , or Rear Seat Back Cover and Pad Removal and Installation (40 Percent) , or Rear Seat Back Cover and Pad Removal and Installation (60 Percent)
