Removal Procedure

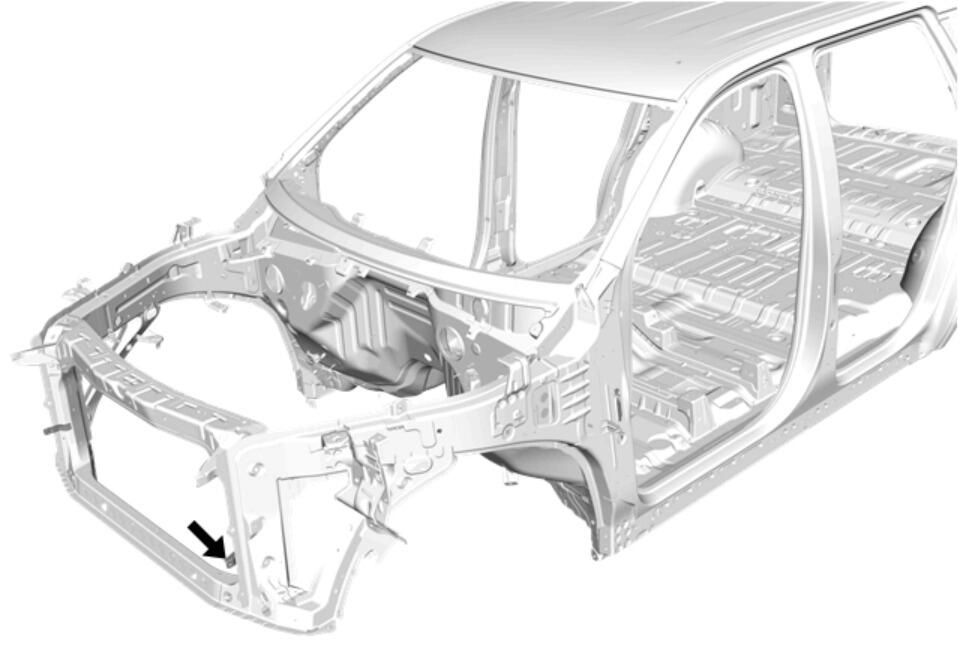

Fig 1: Front Crossmember Bracket Replacement Component Location
GM5344005Courtesy of GENERAL MOTORS COMPANY
WARNING:

Refer to Approved Equipment for Collision Repair Warning .

WARNING:

Refer to Collision Sectioning Warning .

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

NOTE:

Left shown, right similar.

NOTE:

The bracket is mild steel. MILD STEEL .

NOTE:

Refer to Collision Repair Specifications

  1. Disable the SIR system. SIR Disabling and Enabling
  2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1, 5W4)Battery Negative Cable Disconnection and Connection (KL9)
  3. Remove all related panels and components.
  4. Remove the sealers and anti-corrosion materials from the repair area as necessary. Anti-Corrosion Treatment and Repair
    GM4951480Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not damage or cut attaching panels and reinforcements.

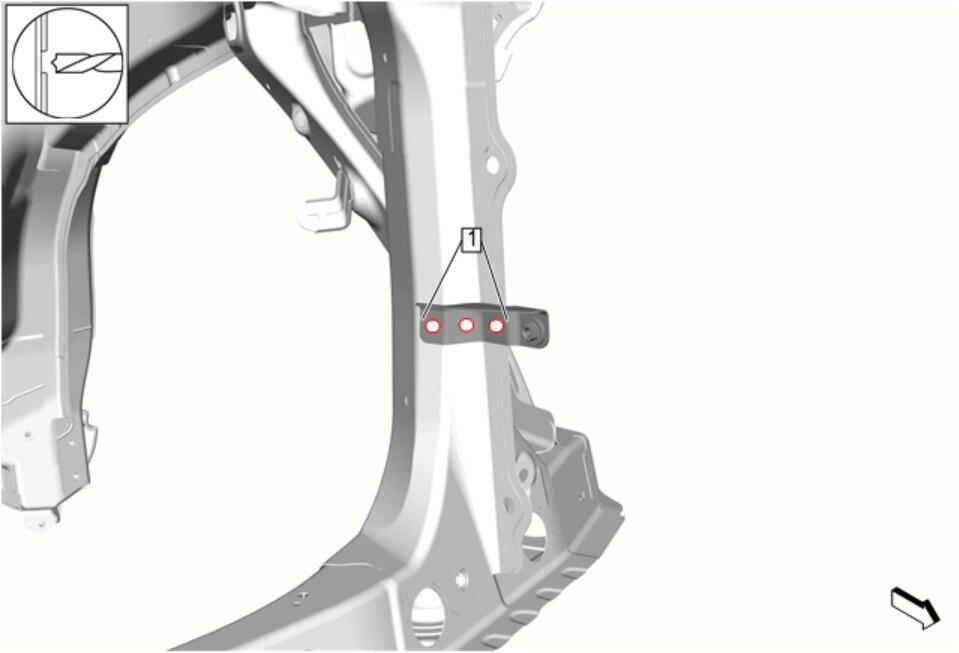

  5. Remove all spot welds (1). [3X]
    GM4951476Courtesy of GENERAL MOTORS COMPANY

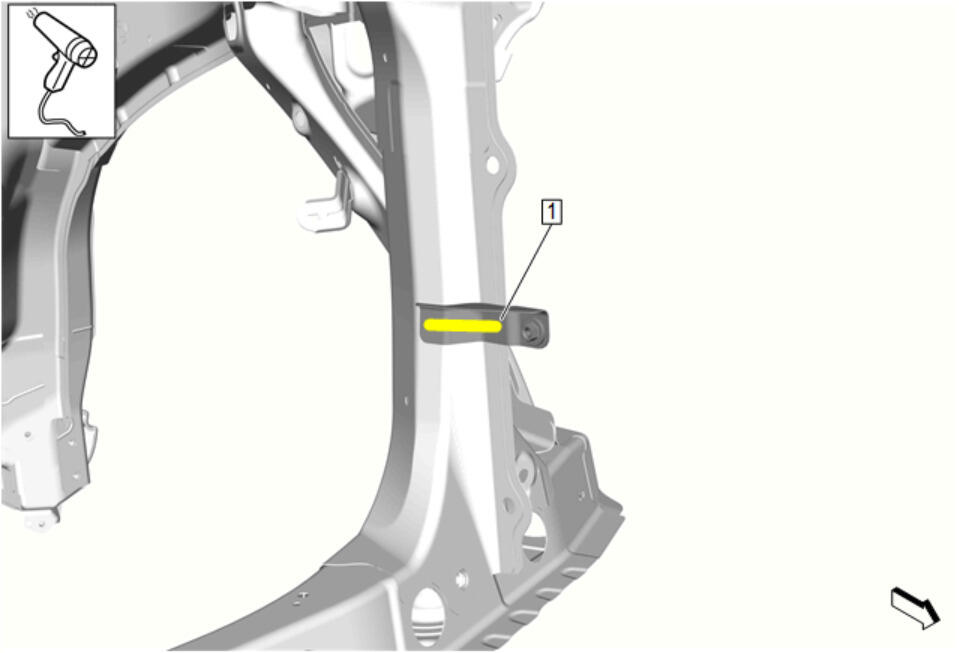

  6. Apply heat to shaded area (1) to release adhesive.
    GM4951478Courtesy of GENERAL MOTORS COMPANY
  7. Remove bracket (1) from the vehicle.
  8. Remove remaining adhesive from vehicle.
