Engine Front Splash Shield Replacement

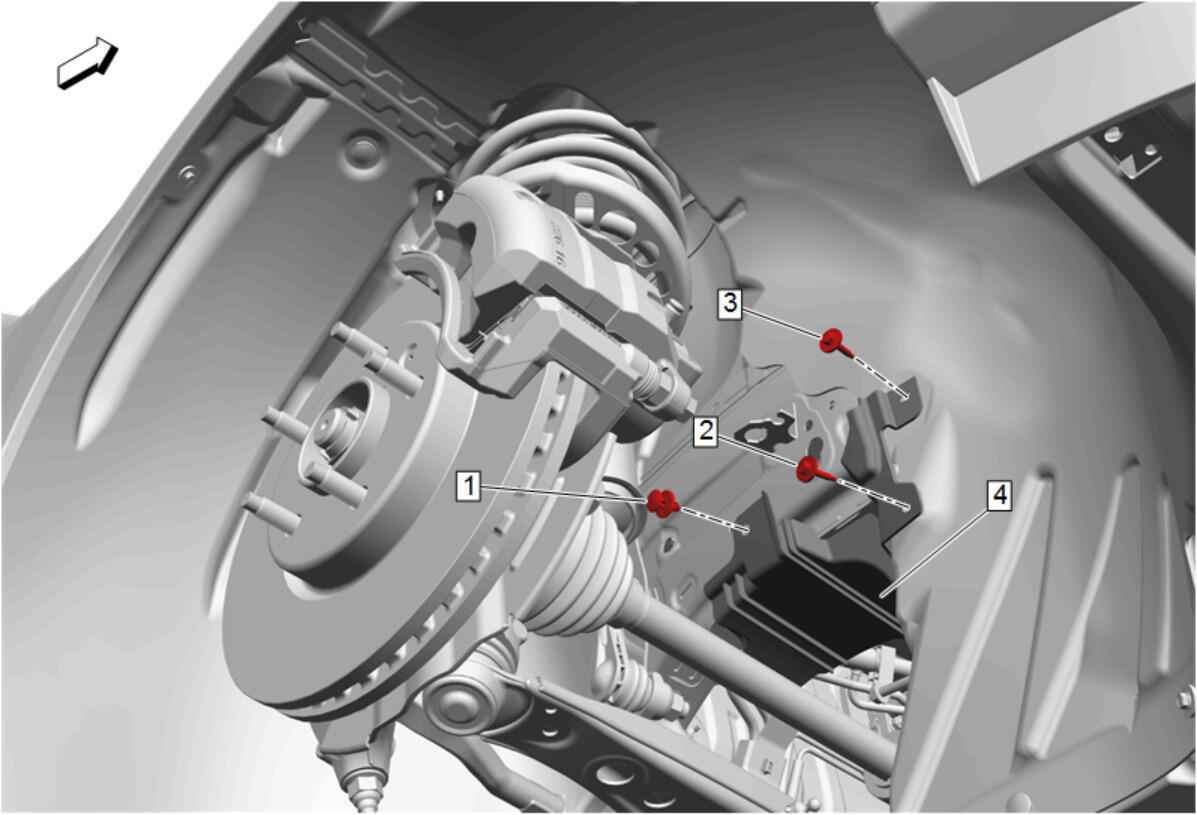

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation |
|
| 1 | Engine Front Splash Shield Retainer |
| 2 | Engine Lower Front Splash Shield Bolt
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 3 | Front Wheelhouse Liner Bolt Tighten 2.5 N.m (22 lb in) |
| 4 | Engine Front Splash Shield Procedure Install the right front tire and wheel assembly. Tire and Wheel Removal and Installation |
