Pitman Arm Replacement

Courtesy of GENERAL MOTORS COMPANY

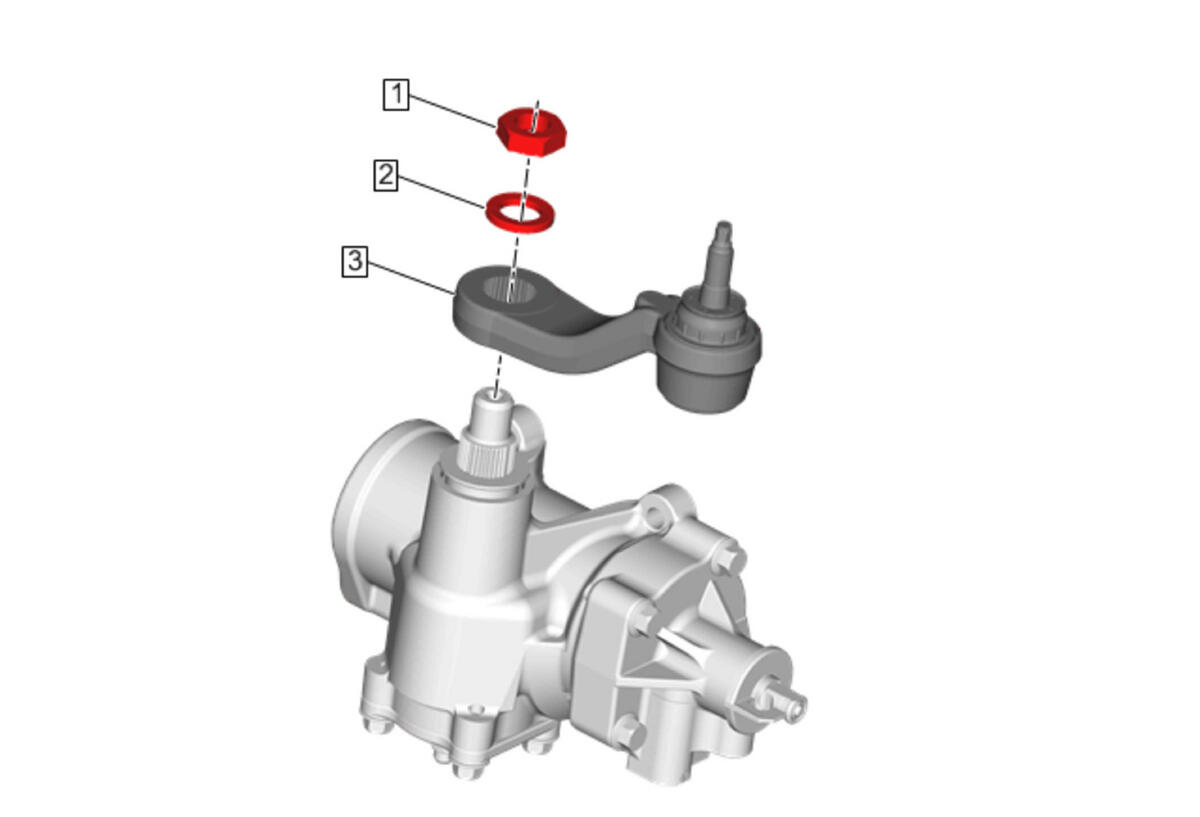

Callout	Component Name
Preliminary Procedure Steering Gear Replacement (with LWN) , or Steering Gear Replacement (without LWN)
1	Pitman Arm Nut CAUTION: Refer to Fastener Caution . Tighten 250 N.m (185 lb ft)
2	Pitman Arm Washer
3	Pitman Arm Procedure Place match marks on the pitman arm and the steering gear to aid in installation. Use the CH-29107 - A puller or the J-6632 - 01 remover to separate the pitman arm from the steering gear. Special Tools CH-29107 - A Pitman Arm Puller J-6632 - 01 Pitman Arm Remover Equivalent regional tools: Special Tools
