Throttle Body Assembly Replacement

Courtesy of GENERAL MOTORS COMPANY

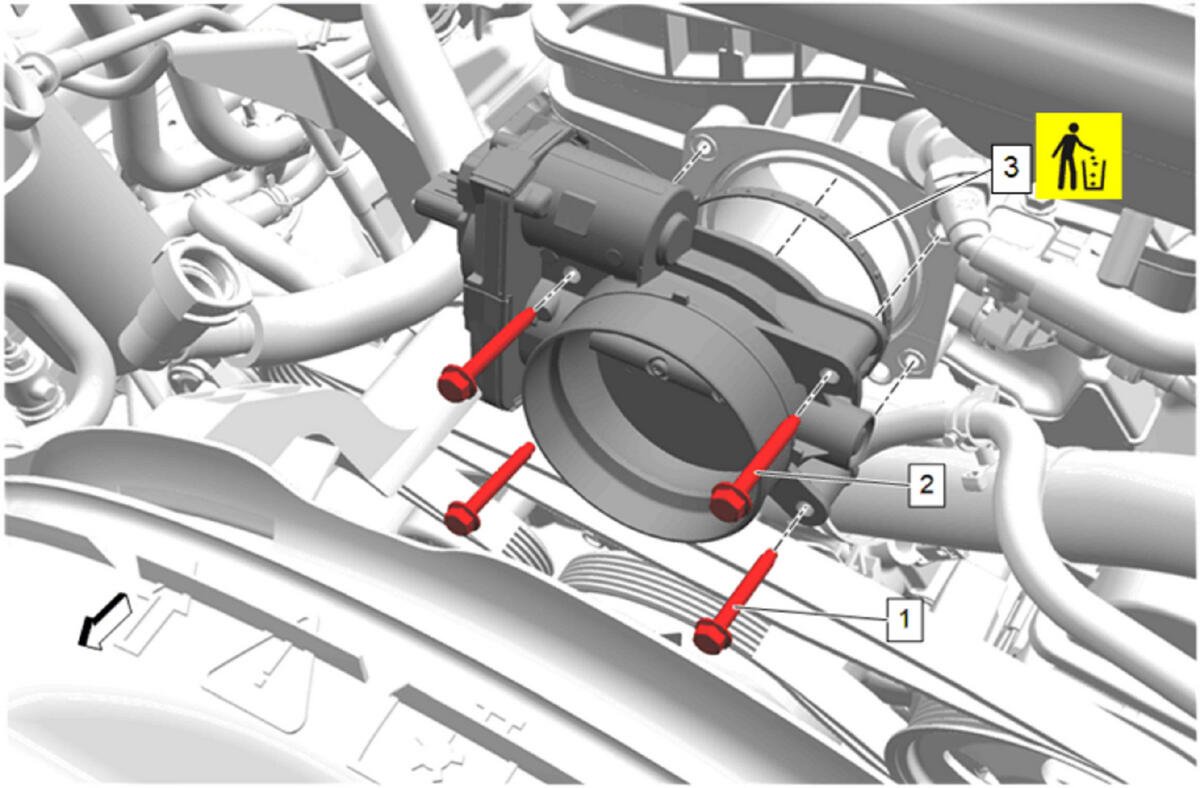

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Duct Replacement
1	Throttle Body Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	2 - Throttle Body Procedure Disconnect the electrical connectors. Install a NEW throttle body gasket/seal. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset

Callout

Component Name

Throttle Body Bolt [4x]

CAUTION:

Tighten
10 N.m (89 lb in)

2 - Throttle Body

Procedure

Disconnect the electrical connectors.
Install a NEW throttle body gasket/seal.
Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
