Fuel Tank Shield Replacement

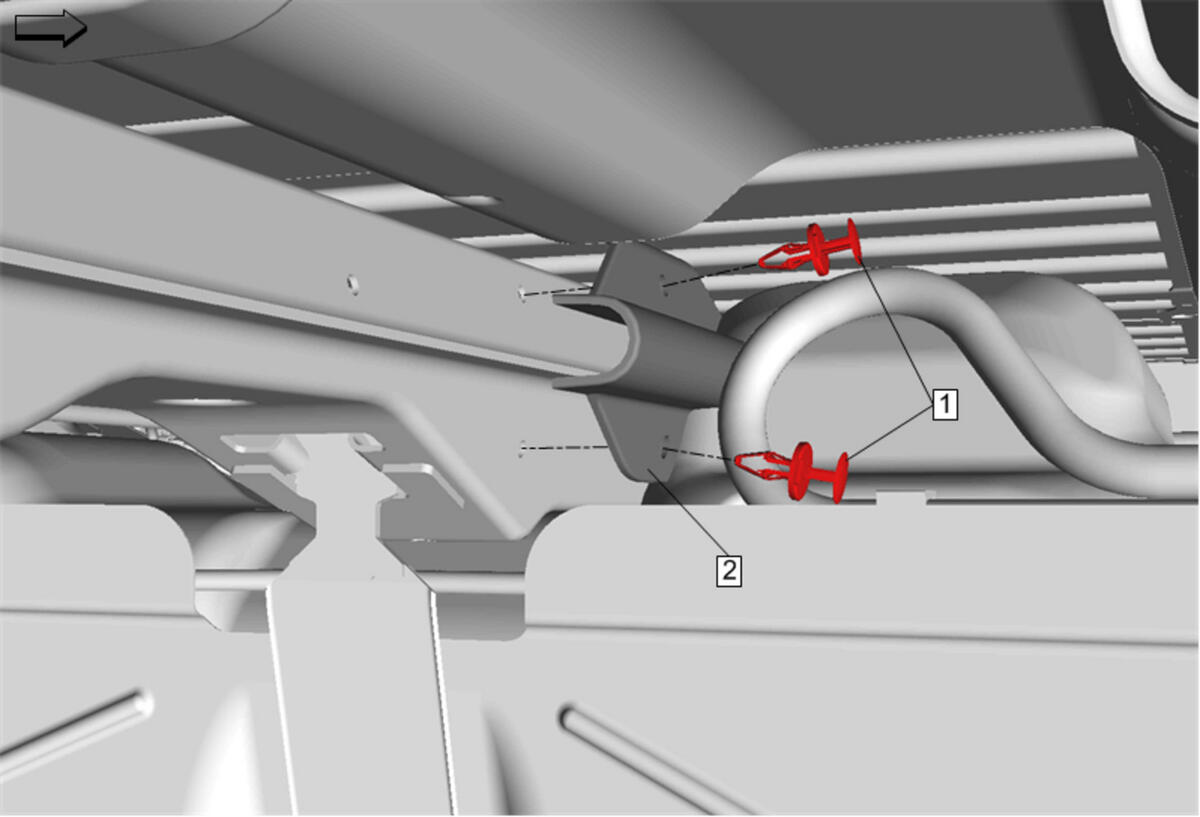

GM4846763Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle .
  2. Reposition wiring harness to remove shield.
1 Fuel Tank Shield Retainer [2x]
2 Fuel Tank Shield
