Installation Procedure

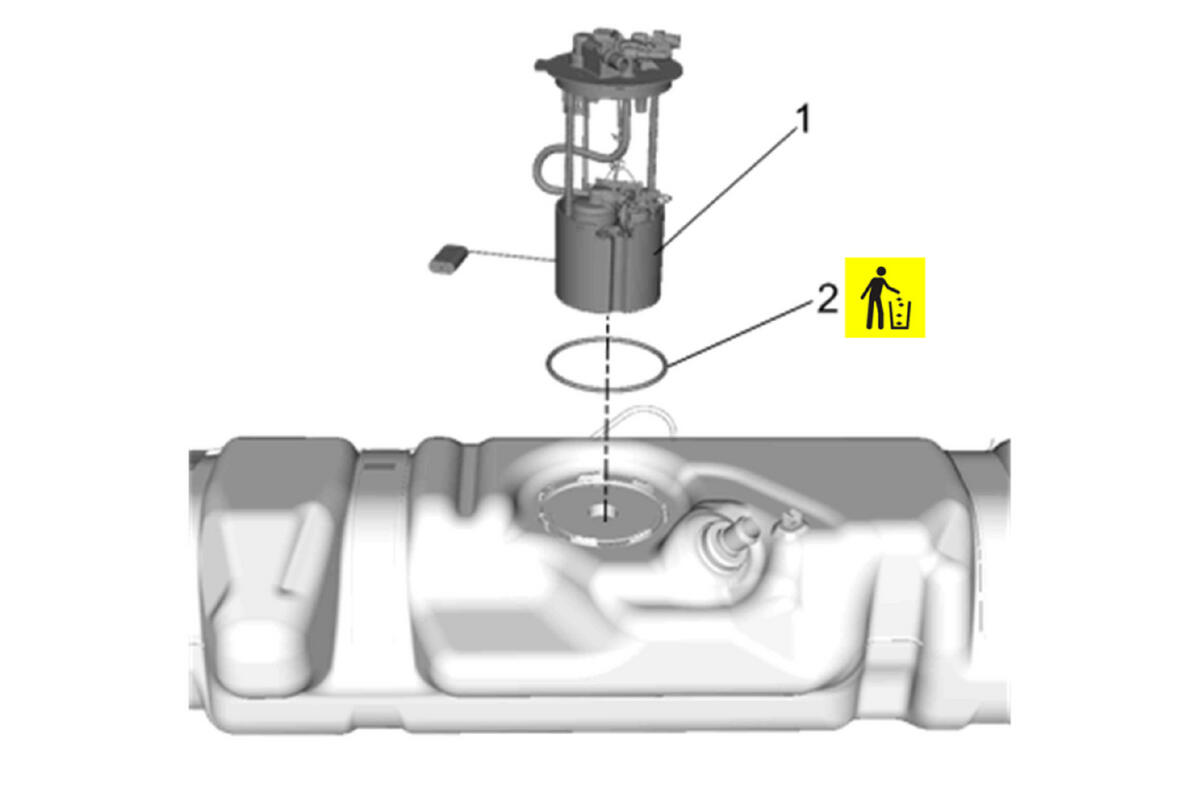

  1. GM4850553Courtesy of GENERAL MOTORS COMPANY

    O-Ring (2) - Install New

  2. Fuel Tank Fuel Pump Module (1) - Install

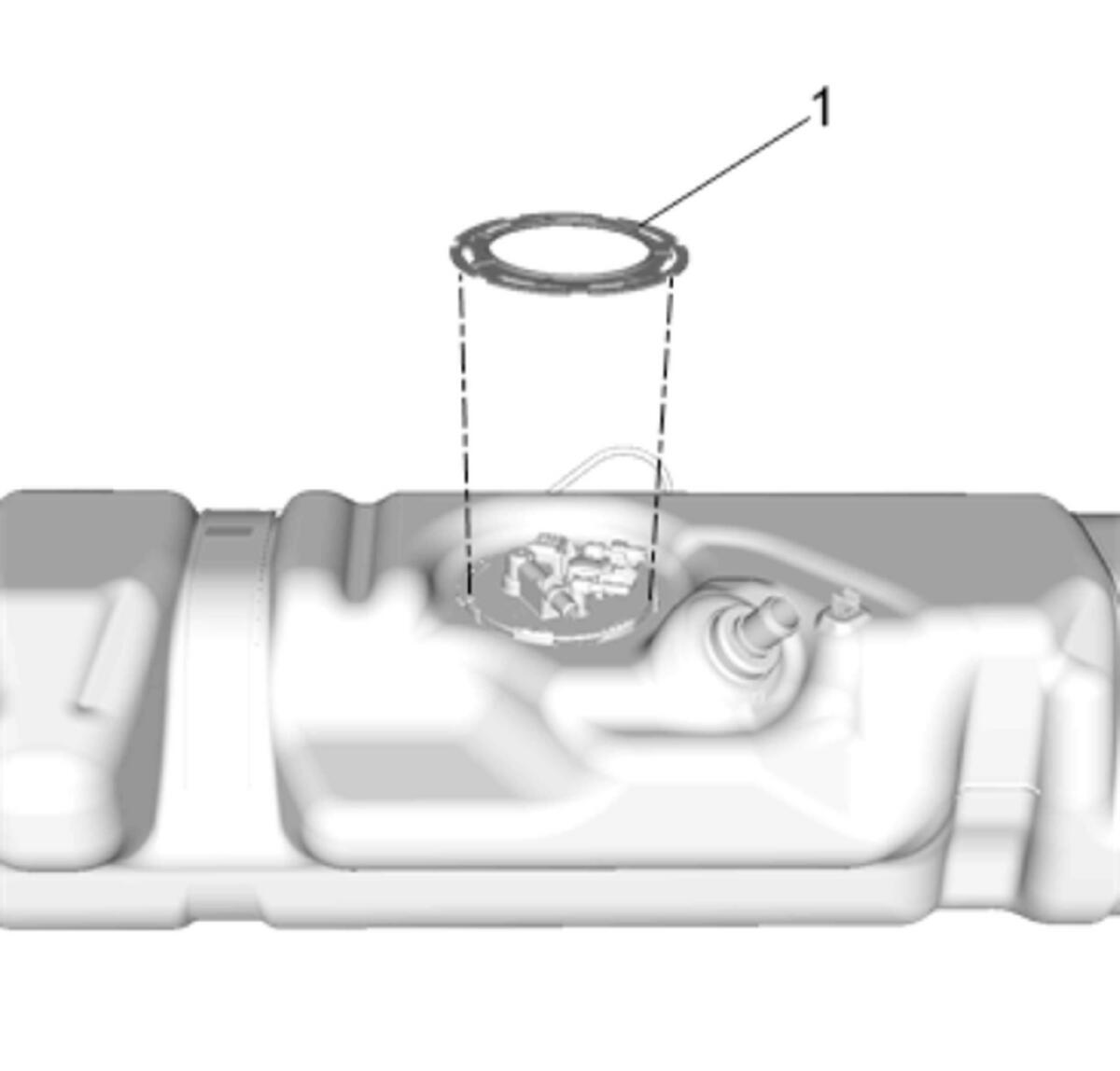

  3. GM4850551Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Retainer (1) - Install - CH 45722  Fuel Sender Lock Ring Wrench

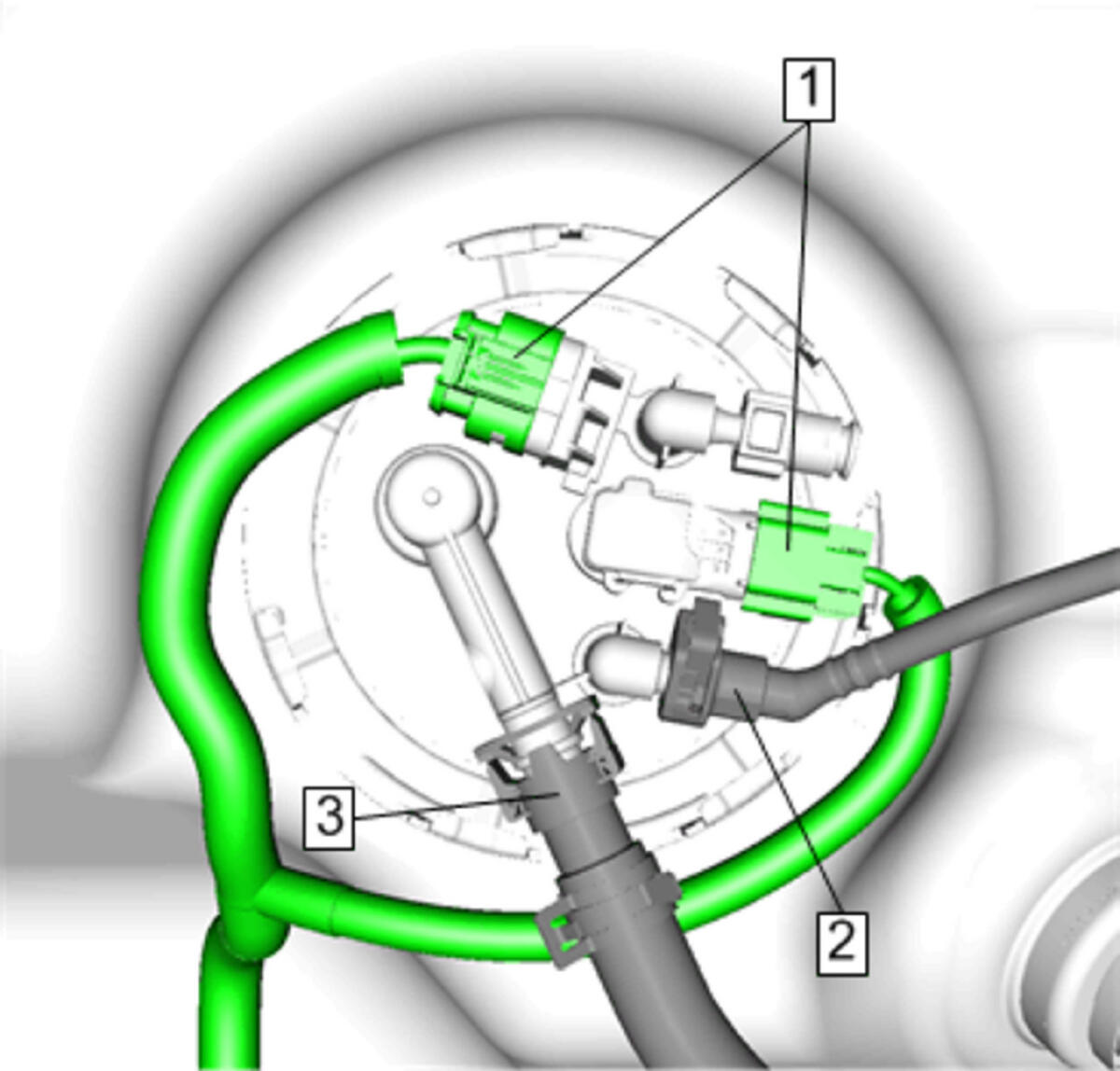

  4. GM4850550Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service

  5. Fuel Feed Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service
  6. Electrical Connector (1) - Connect [2x]
  7. Fuel Tank - Install - Fuel Tank Replacement (Chassis Cab Front Tank)
