Fuel Level Sensor Replacement (Short/Long Wheelbase)

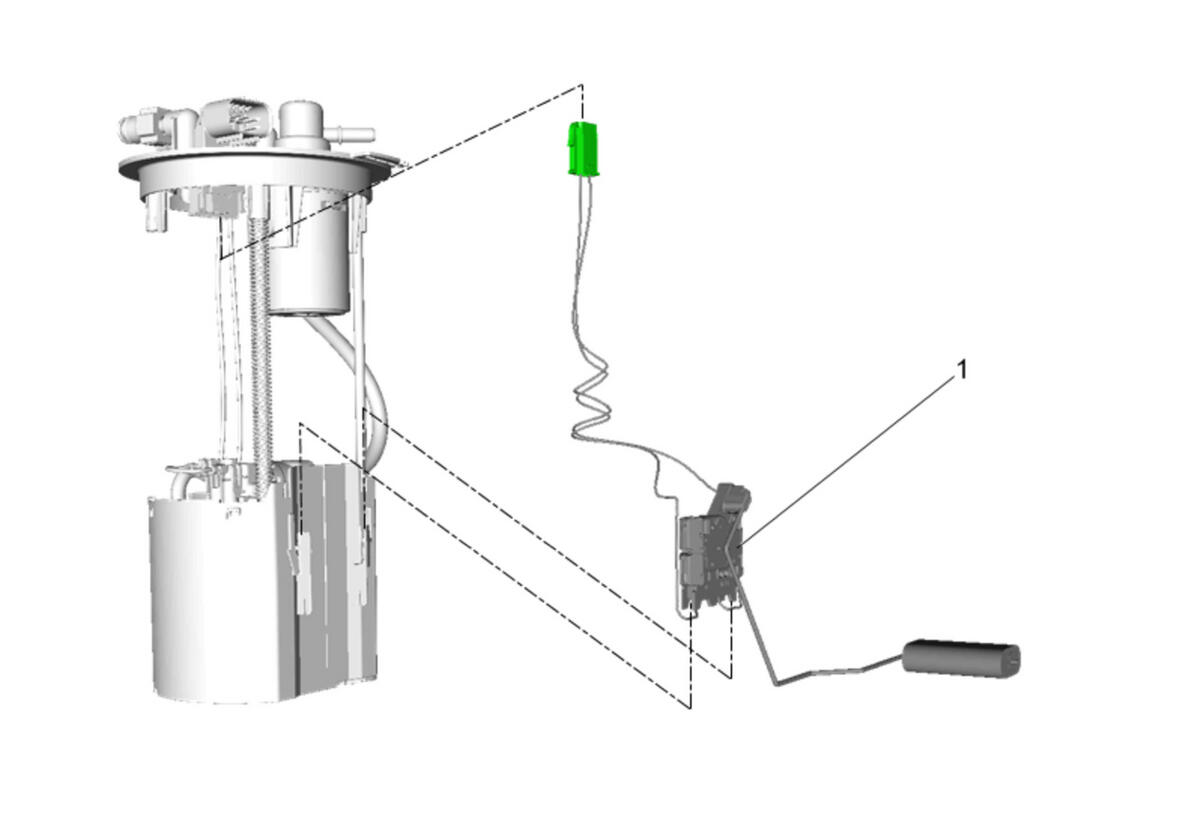

GM4845800Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Fuel Pump Module Replacement (Short/Long Wheelbase)
1 Fuel Level Sensor

Procedure

  1. Release the plastic retaining tabs.
  2. Disconnect the electrical connector.
