Crankshaft Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

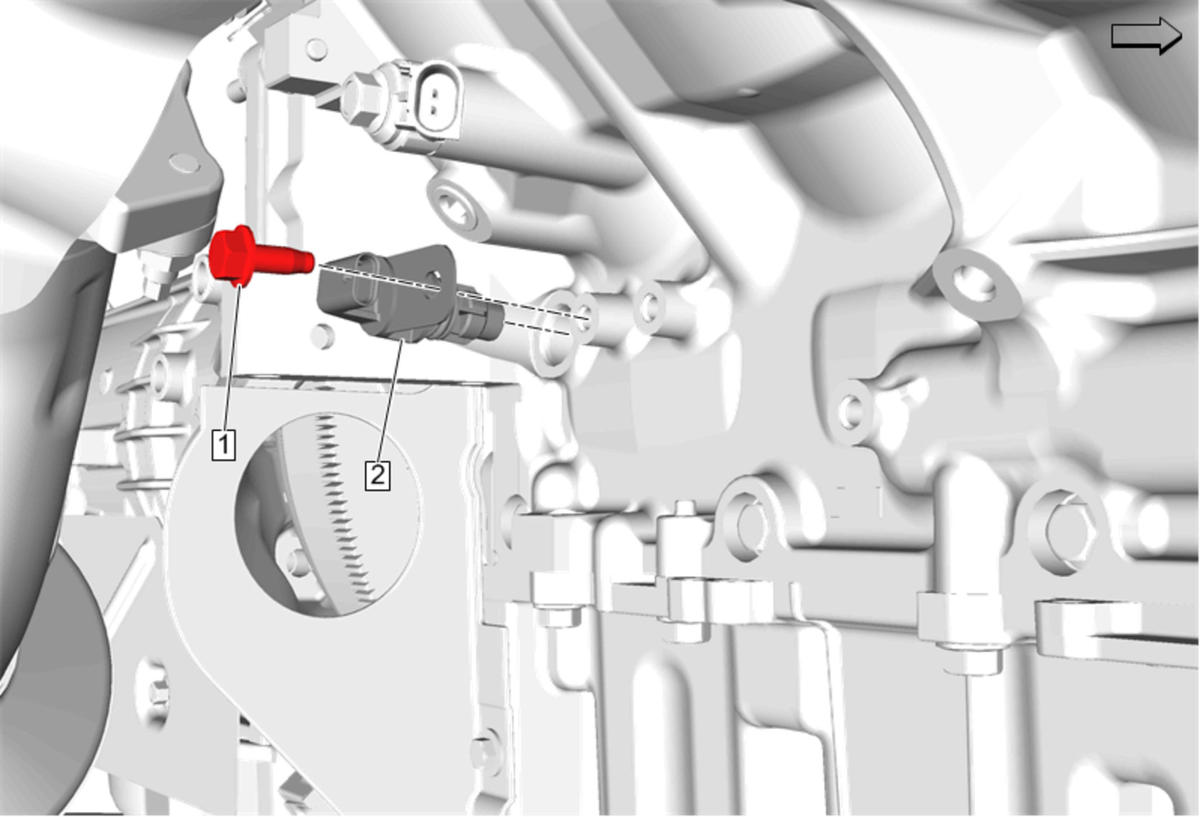

Callout	Component Name
Preliminary Procedures Starter Replacement (L8T) Disconnect the crankshaft position sensor electrical wiring harness connector.
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	2 - Crankshaft Position Sensor Procedure Perform the crankshaft position variation learn. Crankshaft Position Variation Learn

Callout

Component Name

Preliminary Procedures

Crankshaft Position Sensor Bolt

CAUTION:

Tighten
25 N.m (18 lb ft)

2 - Crankshaft Position Sensor
Procedure
Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
