Camshaft Position Sensor Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the camshaft position sensor bracket bolts and position the camshaft position sensor wire aside. Camshaft Position Sensor Wire Replacement |
|

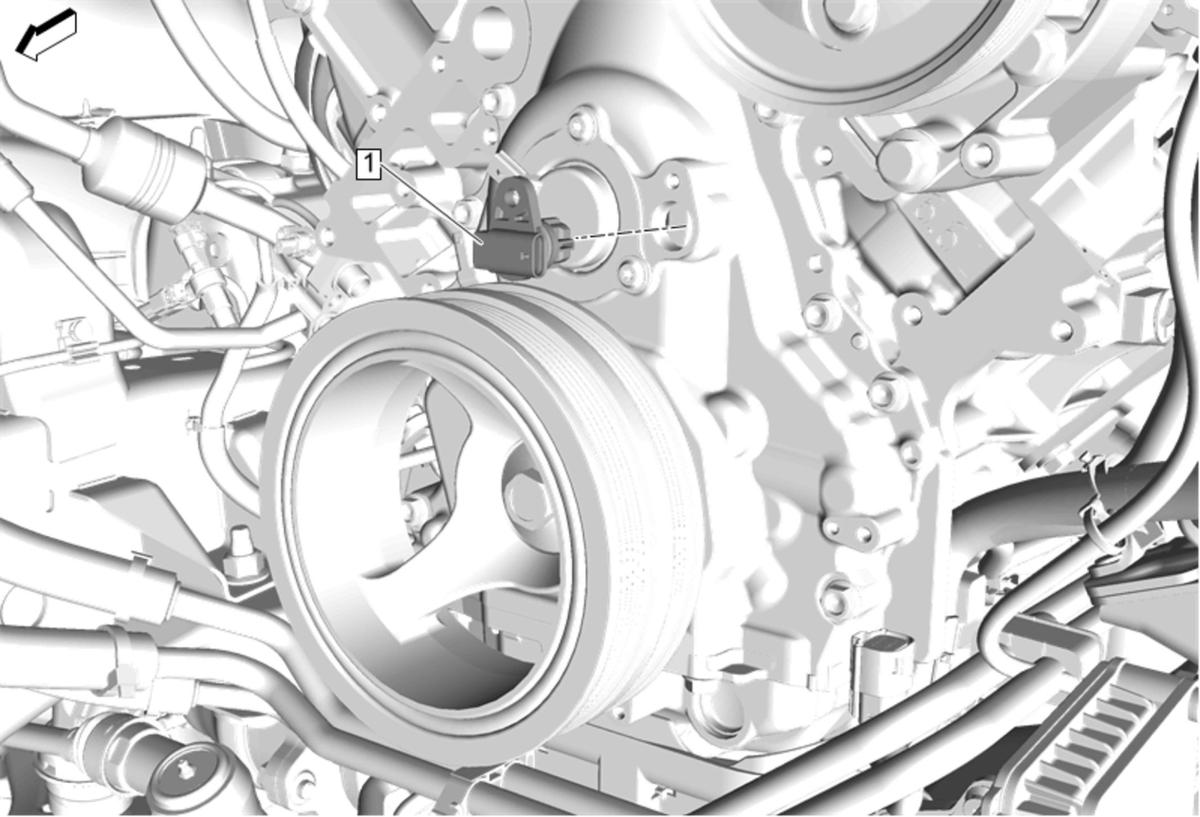

| 1 | 1 - Camshaft Position Sensor
NOTE:
If a new sensor is not being installed, a NEW camshaft sensor seal MUST be installed to prevent leaks. Procedure If re-programming is required, refer to Control Module References |
