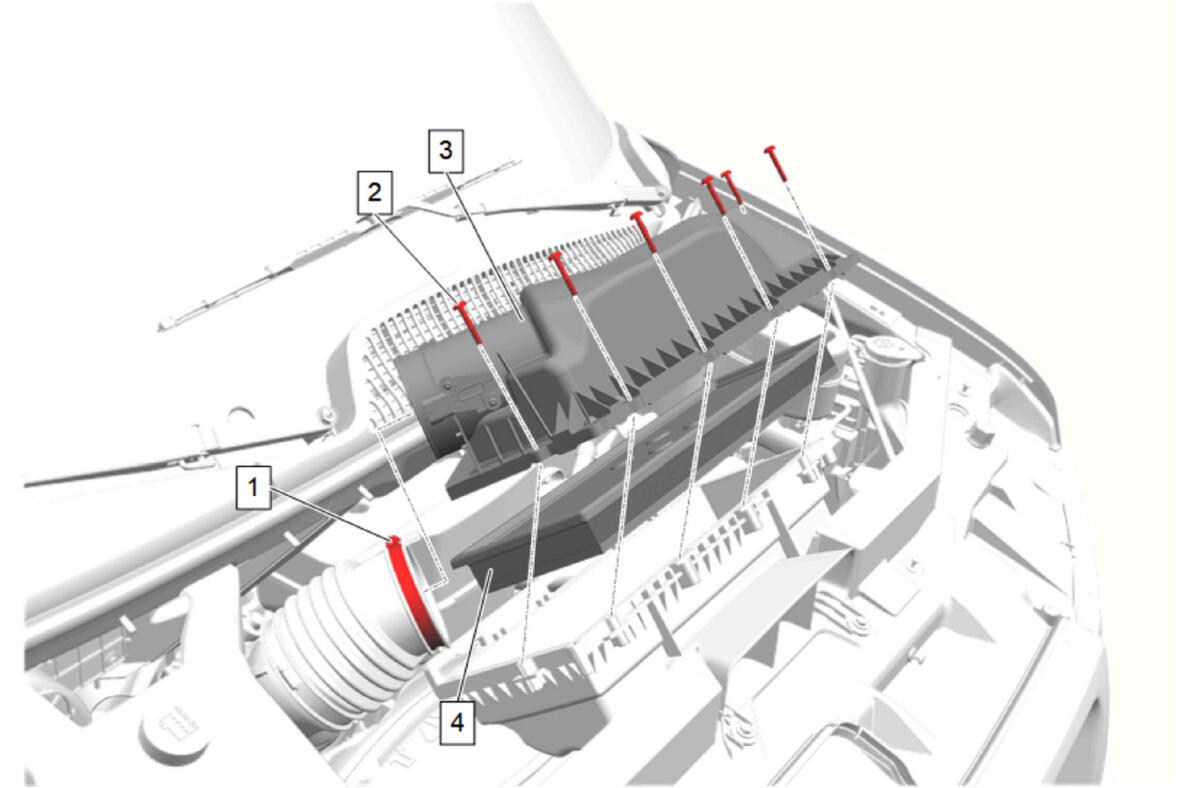

Air Cleaner Element Replacement
| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct Clamp
CAUTION:
Refer to Fastener Caution . Tighten 3.5 N.m (31 lb in) |
| 2 | Air Cleaner Housing Cover Bolt [6x] Tighten 3.1 N.m (27 lb in) |
| 3 | Air Cleaner Upper Housing Procedure Disconnect the electrical connector. |
| 4 | Air Cleaner Element |
