Air Cleaner Assembly Replacement

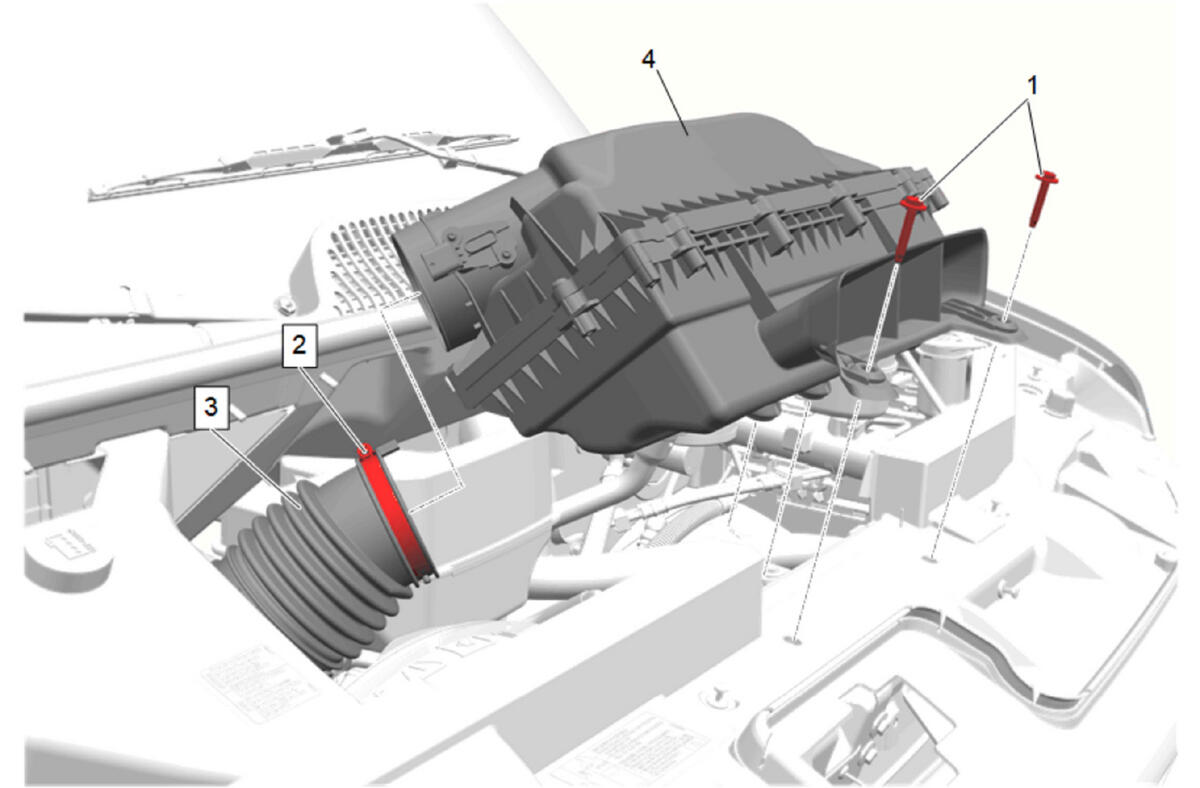

GM5659969Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Air Cleaner Outlet Duct Clamp
Tighten
3.5 N.m (31 lb in)
3 Air Cleaner Outlet Duct
4 Air Cleaner Assembly

Procedure

  1. Disconnect the electrical connector.
  2. Remove the air cleaner housing from the retainers.
  3. Transfer parts as necessary.
