Installation Procedure

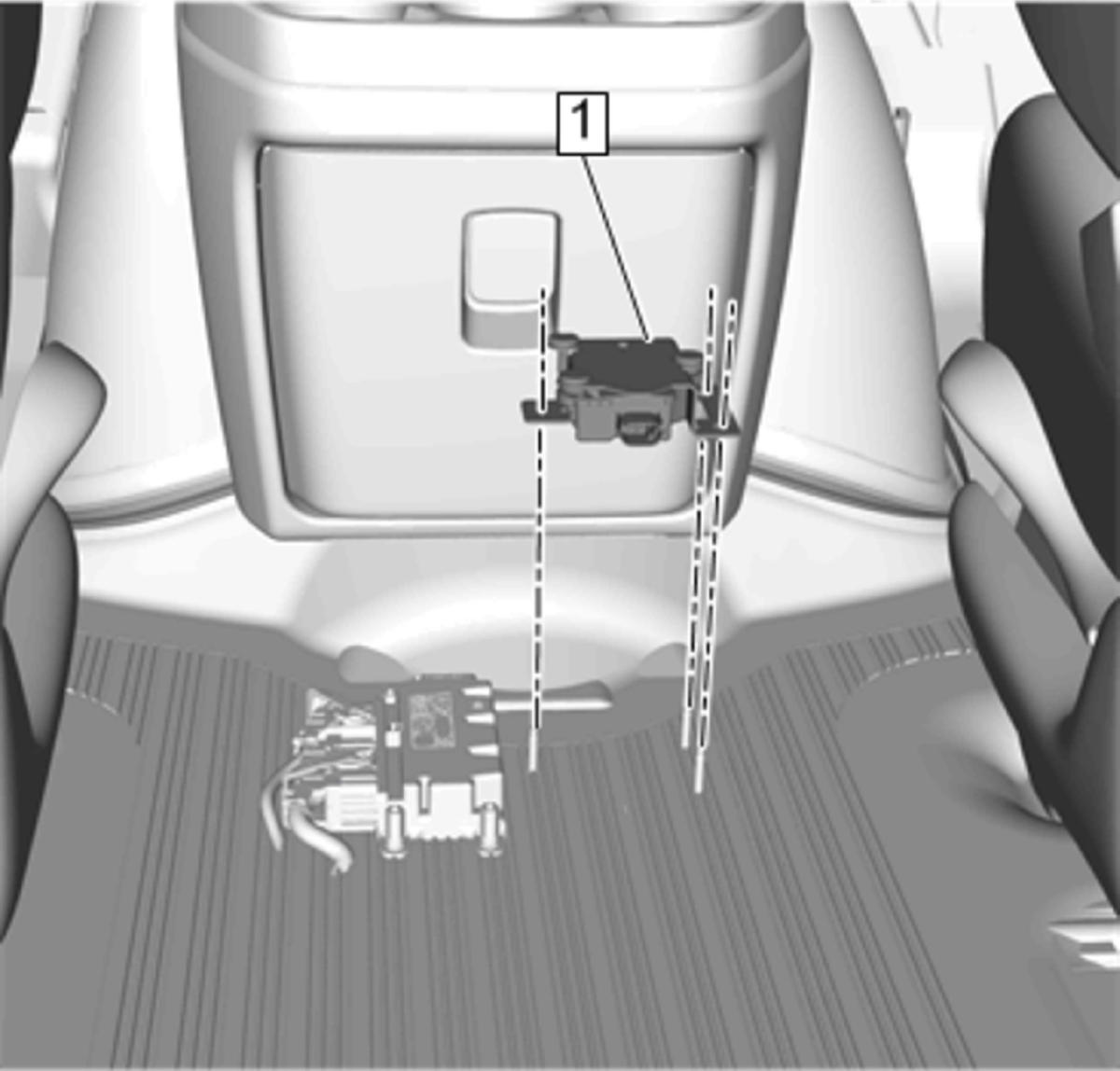

  1. GM4828460Courtesy of GENERAL MOTORS COMPANY

    Vehicle Yaw Sensor with Vehicle Lateral Accelerometer (1) - Install

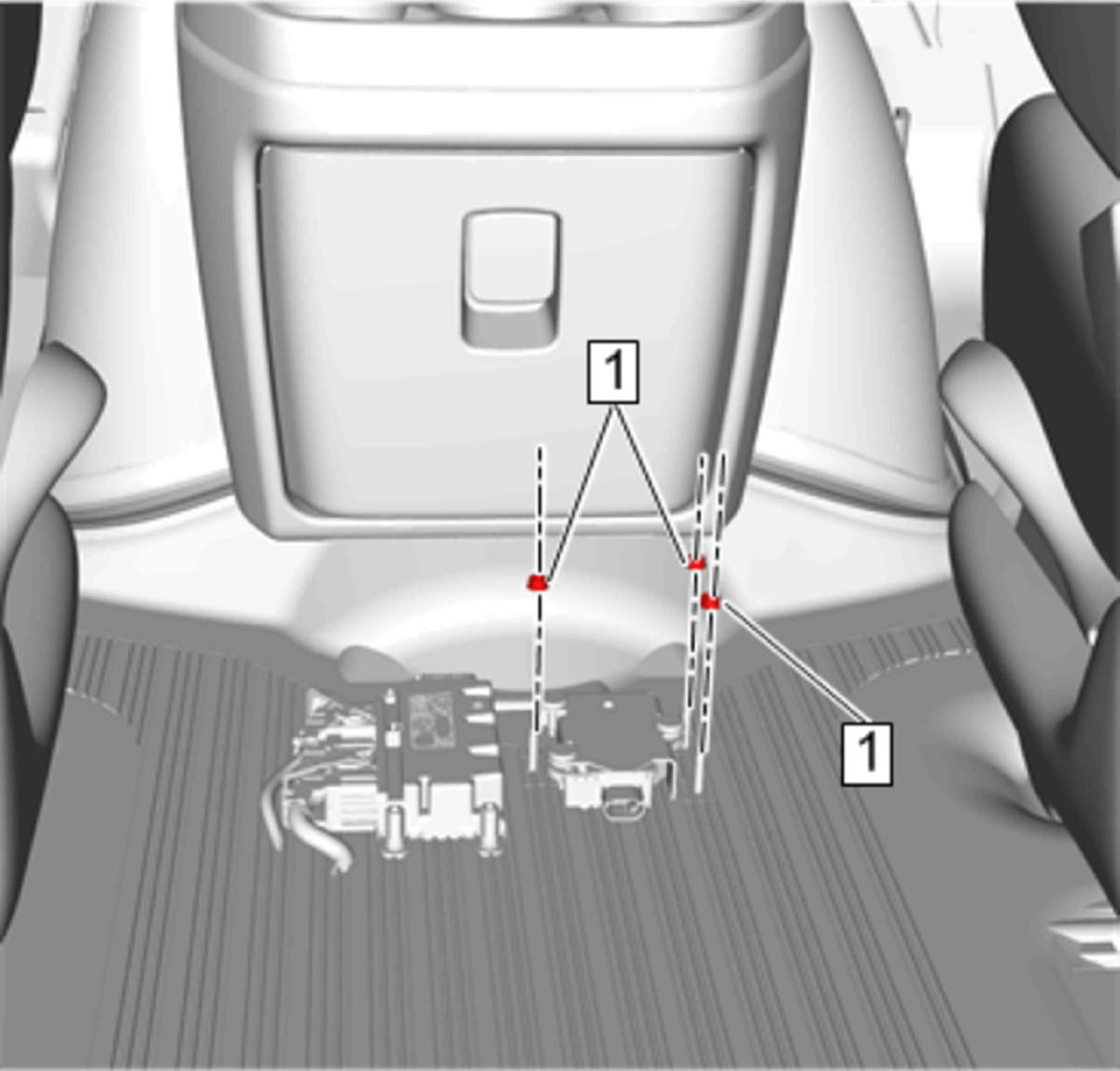

  2. GM4828459Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Nut (1) - Install and tighten [3x] 9 N.m (80 lb in)

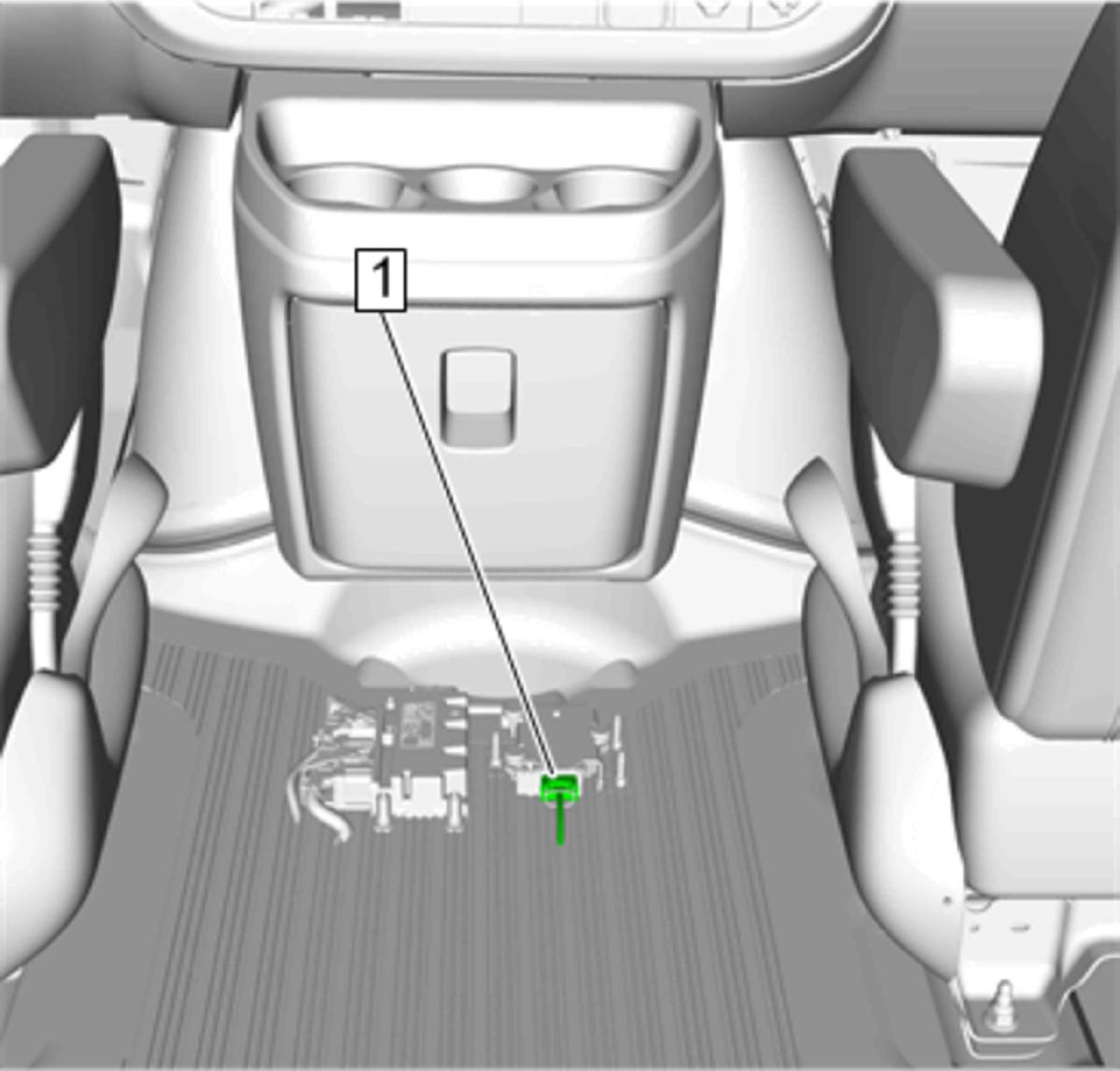

  3. GM4828458Courtesy of GENERAL MOTORS COMPANY

    Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Electrical Connector (1) - Connect

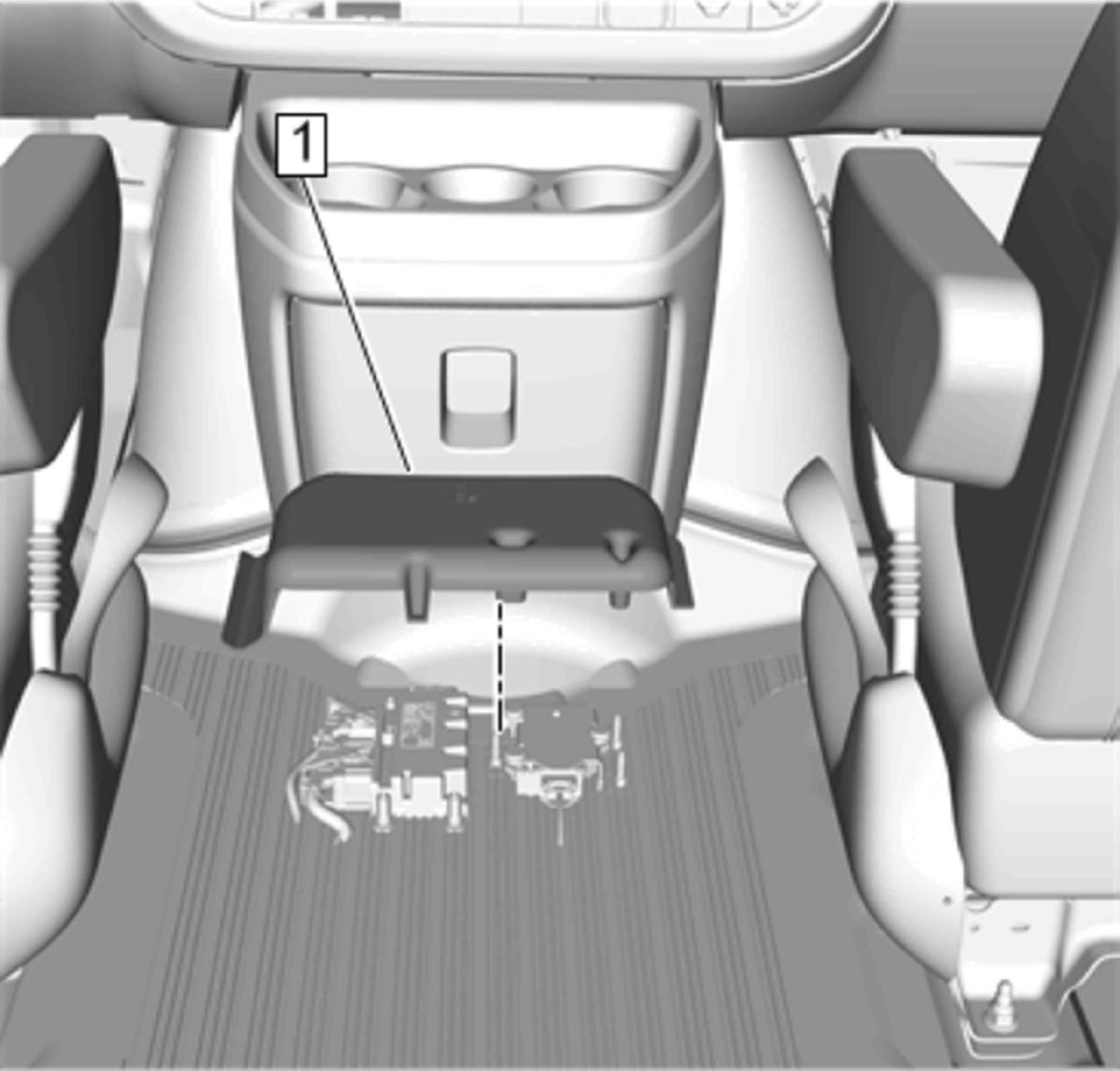

  4. GM4828457Courtesy of GENERAL MOTORS COMPANY

    Rollover Sensor Cover (1) - Install

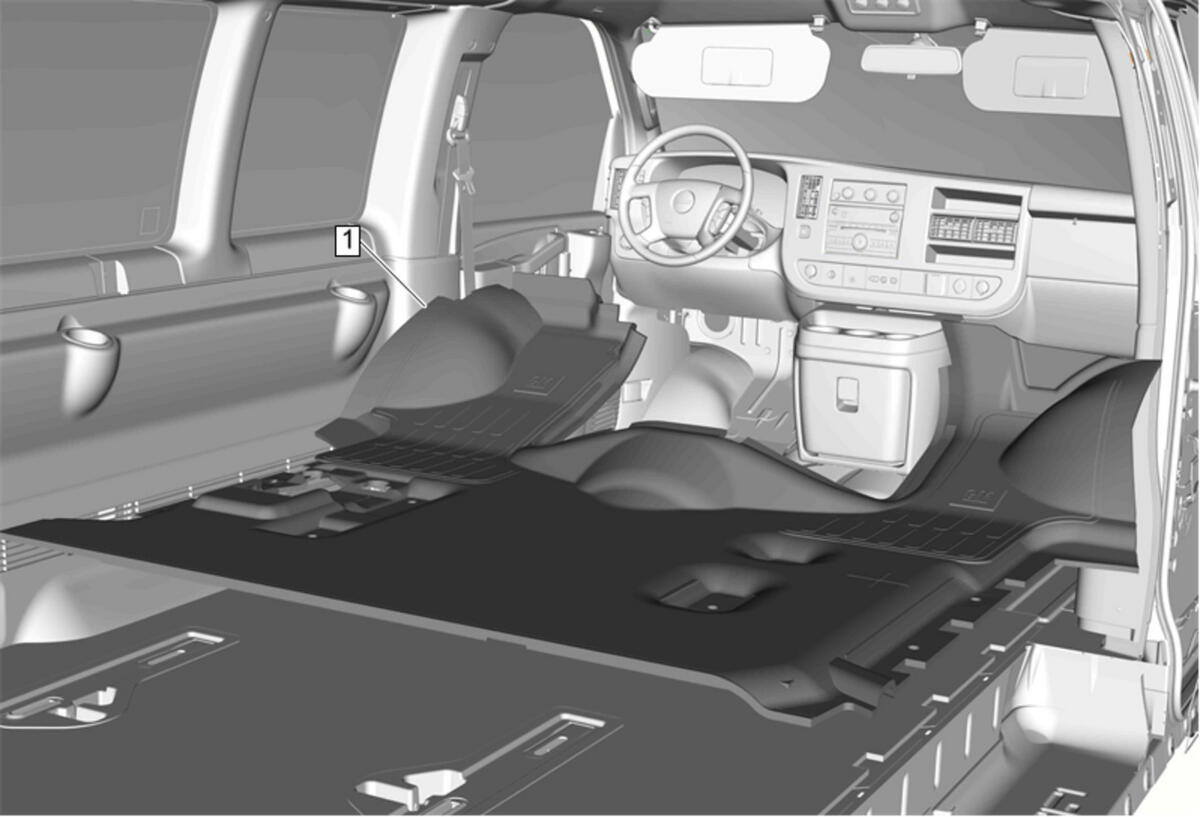

  5. GM4869297Courtesy of GENERAL MOTORS COMPANY

    Front Floor Panel Carpet (1) - Install - Front Floor Panel Carpet Replacement

  6. Calibrate the vehicle yaw sensor with vehicle lateral accelerometer. Vehicle Yaw Sensor Learn
