Brake Pressure Modulator Valve Bracket Replacement

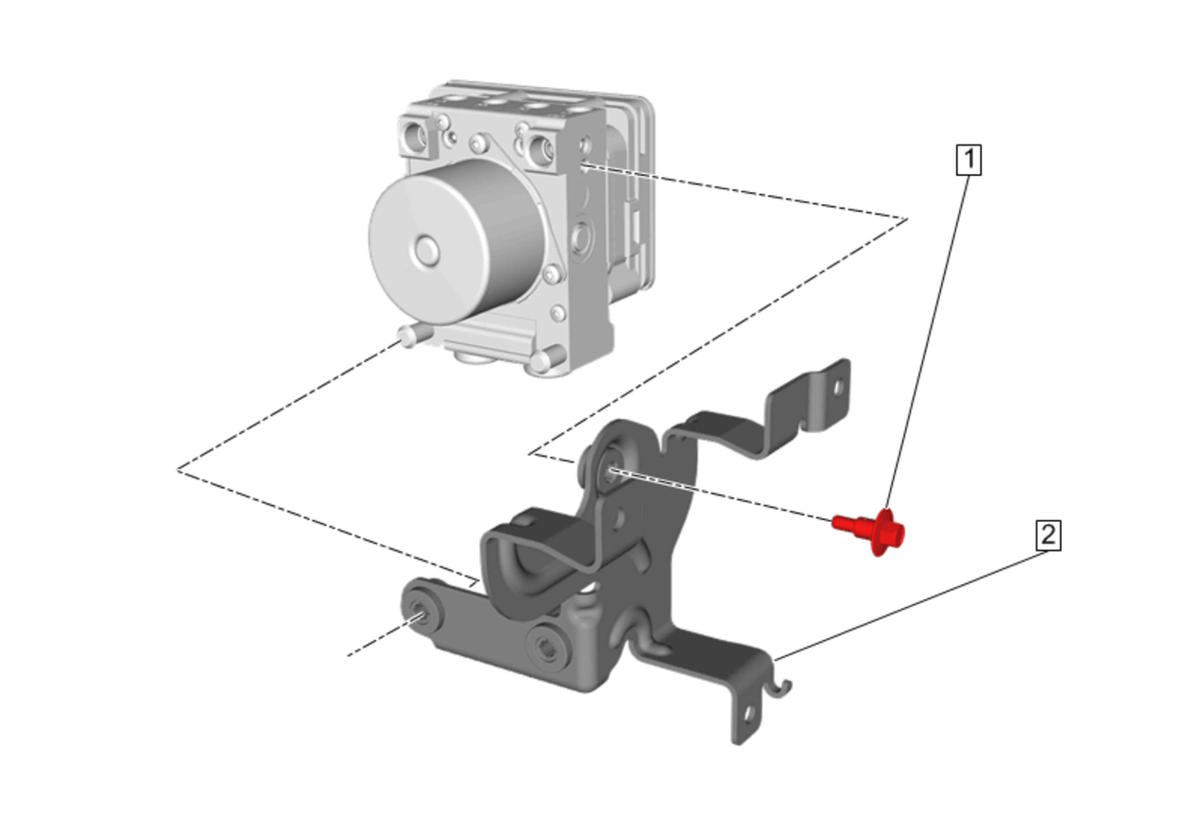

| Callout | Component Name |
|---|---|
| Preliminary Procedure Brake Pressure Modulator Valve Replacement |
|
| 1 | Brake Pressure Modulator Valve Bolt
CAUTION:
Refer to Fastener Caution . Tighten 11 N.m (97 lb in) |
| 2 | Brake Pressure Modulator Valve Bracket
NOTE:
A small amount of denatured alcohol may be used to ease assembly. |
