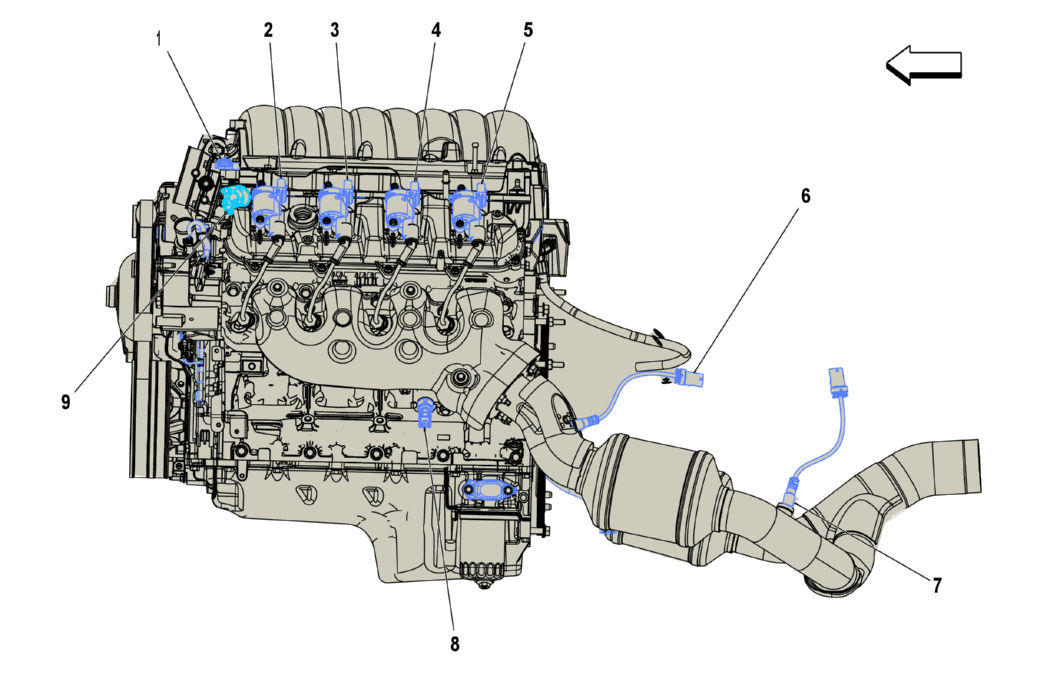

Left Side of the Engine Components (L8T)
Left Side of the Engine Components (L8T)
| Component Name | Callout |
|---|---|
| B74 Manifold Absolute Pressure Sensor (LV1/L8T) B74 Manifold Absolute Pressure Sensor | 1 |
| T8A Ignition Coil 1 T8A Ignition Coil 1 () | 2 |
| T8C Ignition Coil 3 T8C Ignition Coil 3 () | 3 |
| T8E Ignition Coil 5 (L8T/LV1) T8E Ignition Coil 5 () | 4 |
| T8G Ignition Coil 7 (L8T) T8G Ignition Coil 7 | 5 |
| B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LV1/L8T) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 | 6 |
| B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LV1/L8T) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 | 7 |
| B68A Knock Sensor 1 (LV1/L8T) B68A Knock Sensor 1 | 8 |
| Q12 Evaporative Emission Purge Solenoid Valve (L8T/LV1) Q12 Evaporative Emission Purge Solenoid Valve () | 9 |
