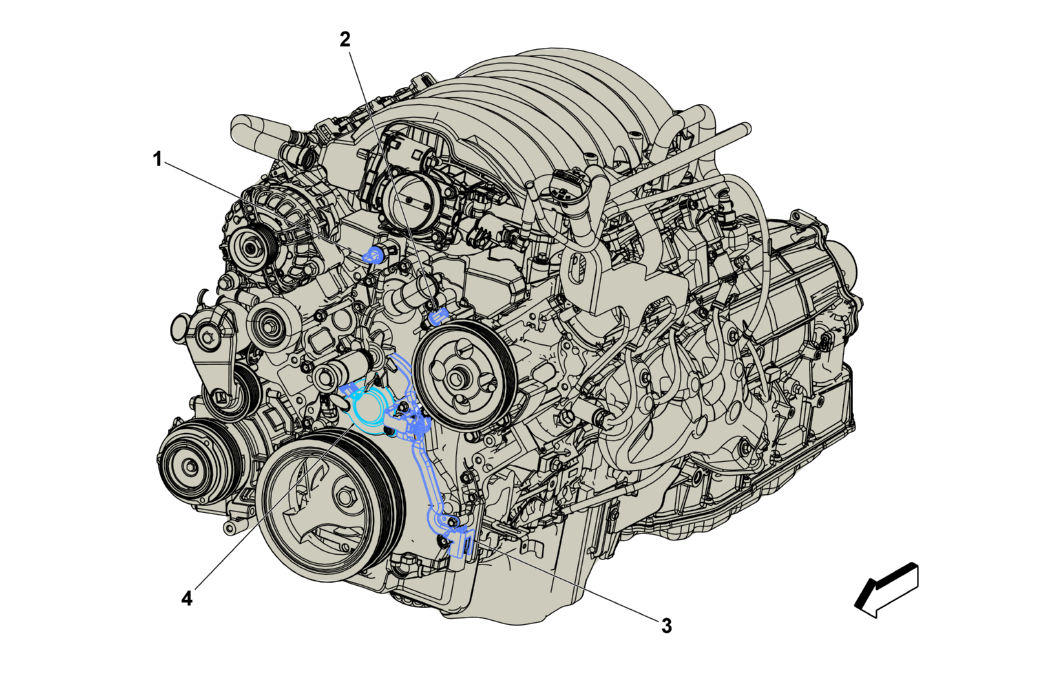

Left Front Side of the Engine Components (LV1)
Left Front Side of the Engine Components (LV1)
| Component Name | Callout |
|---|---|
| B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (-L8T) , or B37B Engine Oil Pressure Sensor (L8T) | 1 |
| B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LV1) | 2 |
| B23 Camshaft Position Sensor B23 Camshaft Position Sensor | 3 |
| Q6 Camshaft Position Actuator Solenoid Valve (L8T/LV1) Q6 Camshaft Position Actuator Solenoid Valve | 4 |
