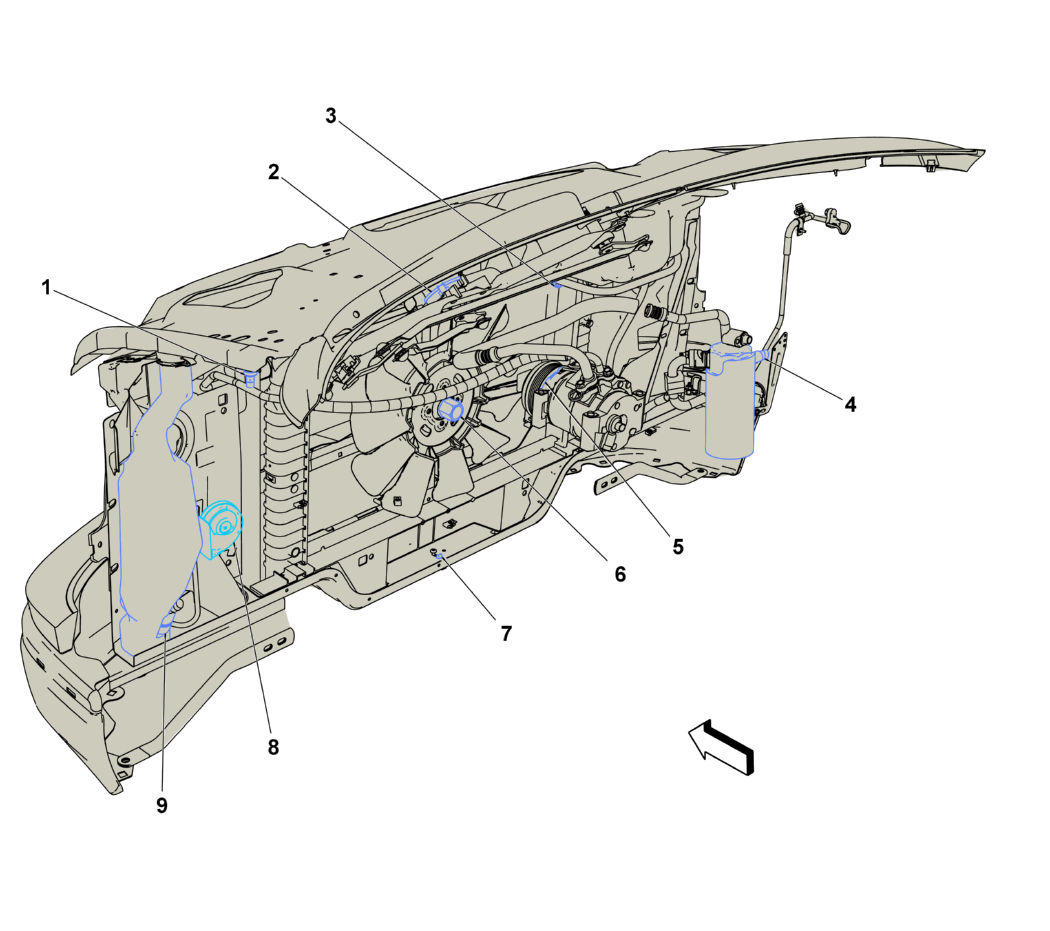

Front of Engine Compartment Components (1 of 2)
Front of Engine Compartment Components (1 of 2)
| Component Name | Callout |
|---|---|
| B1 A/C Refrigerant Pressure Sensor (C60) B1 A/C Refrigerant Pressure Sensor (-LWN) | 1 |
| M75 Windshield Wiper Motor M75 Windshield Wiper Motor | 2 |
| B33 Engine Coolant Level Switch (LWN) B33 Engine Coolant Level Switch (LWN) | 3 |
| B1B A/C Low Side Pressure Switch (C60) B1B A/C Low Side Pressure Switch | 4 |
| Q2 A/C Compressor Clutch (C60) Q2 A/C Compressor Clutch (-LWN) , or Q2 A/C Compressor Clutch (LWN) | 5 |
| Q85 Cooling Fan Clutch (LWN) Q85 Cooling Fan Clutch | 6 |
| B59 Front Impact Sensor B59 Front Impact Sensor | 7 |
| P13 Horn Assembly P13 Horn Assembly | 8 |
| G24 Windshield Washer Pump G24 Windshield Washer Pump | 9 |
