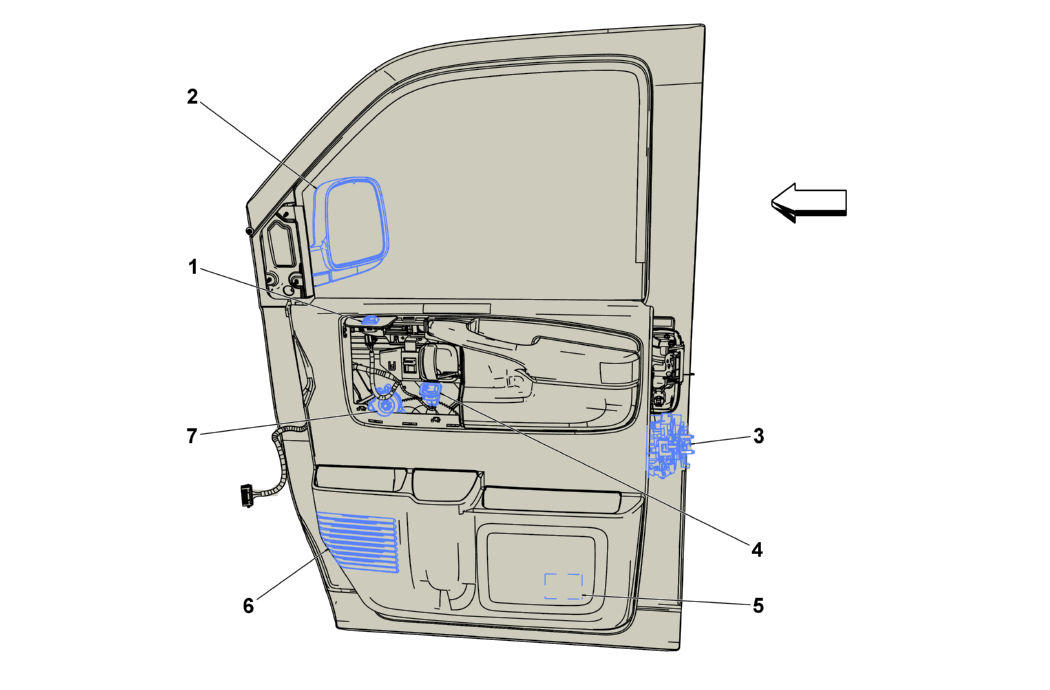

Front Passenger Door Components
Front Passenger Door Components
| Component Name | Callout |
|---|---|
| S79P Window Switch - Passenger (A31) S79P Window Switch - Passenger | 1 |
| A9B Outside Rearview Mirror - Passenger A9B Outside Rearview Mirror - Passenger () | 2 |
| A23P Door Latch Assembly - Passenger A23P Door Latch Assembly - Passenger X1 , or A23P Door Latch Assembly - Passenger X2 | 3 |
| S13P Door Lock Switch - Passenger (AU3) S13P Door Lock Switch - Passenger | 4 |
| B63RF Side Impact Sensor - Right Front (ASF) B63RF Side Impact Sensor - Right Front | 5 |
| P19AH Speaker - Right Front Door P19AH Speaker - Right Front Door | 6 |
| M74P Window Motor - Passenger (A31) M74P Window Motor - Passenger | 7 |
