Windshield Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2022 GMC Savana 3500, 2022 GMC Savana 2500, 2022 Chevrolet Express 3500, and 2022 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

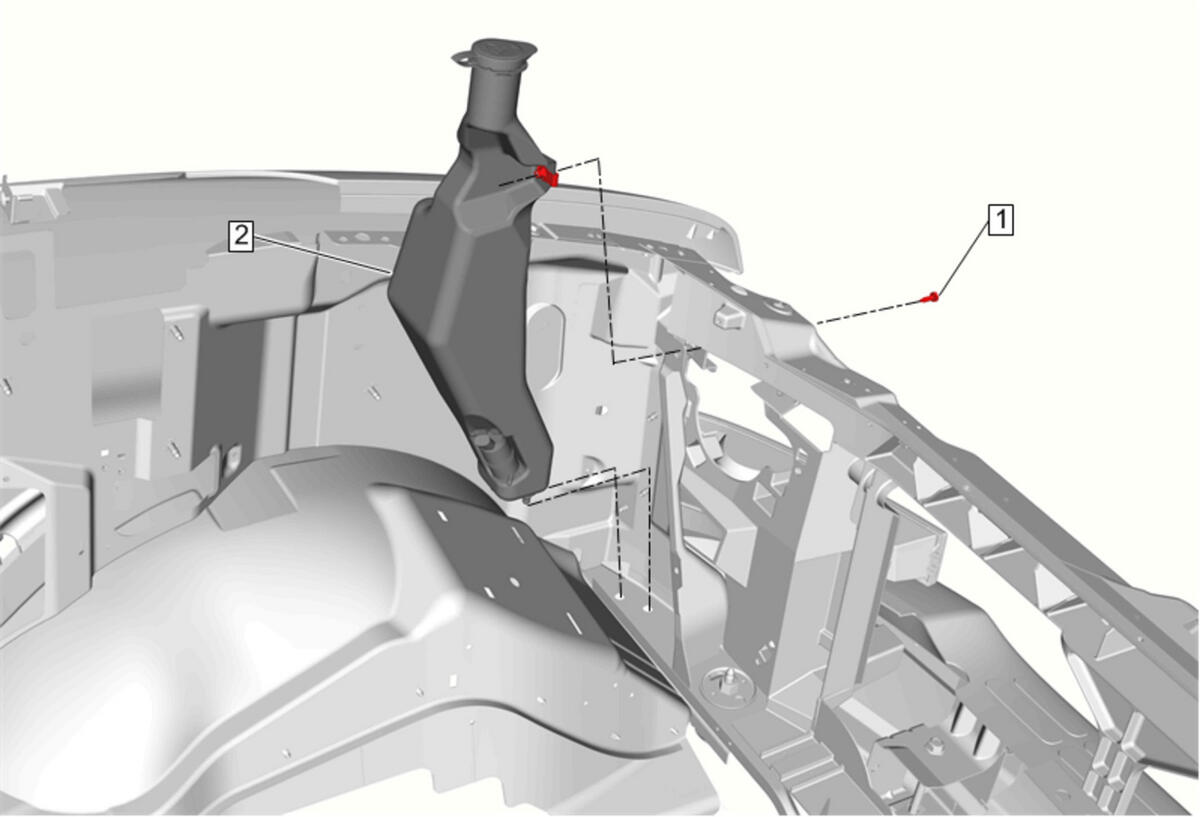

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place a drain pan under the vehicle. Disconnect the electrical connector. Disconnect the windshield washer pump hose. Reposition the brake master cylinder. Brake Master Cylinder Replacement
1	Windshield Washer Solvent Container Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Windshield Washer Solvent Container Procedure Lift the windshield washer solvent container from the locating holes in the front end lower panel support. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Place a drain pan under the vehicle.
Disconnect the electrical connector.
Disconnect the windshield washer pump hose.
Reposition the brake master cylinder. Brake Master Cylinder Replacement

Windshield Washer Solvent Container Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Windshield Washer Solvent Container

Procedure

Lift the windshield washer solvent container from the locating holes in the front end lower panel support.
Transfer components as necessary.
