Washer Pump Replacement

WARNING: This page is about a different car, the 2022 GMC Savana 3500, 2022 GMC Savana 2500, 2022 Chevrolet Express 3500, and 2022 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

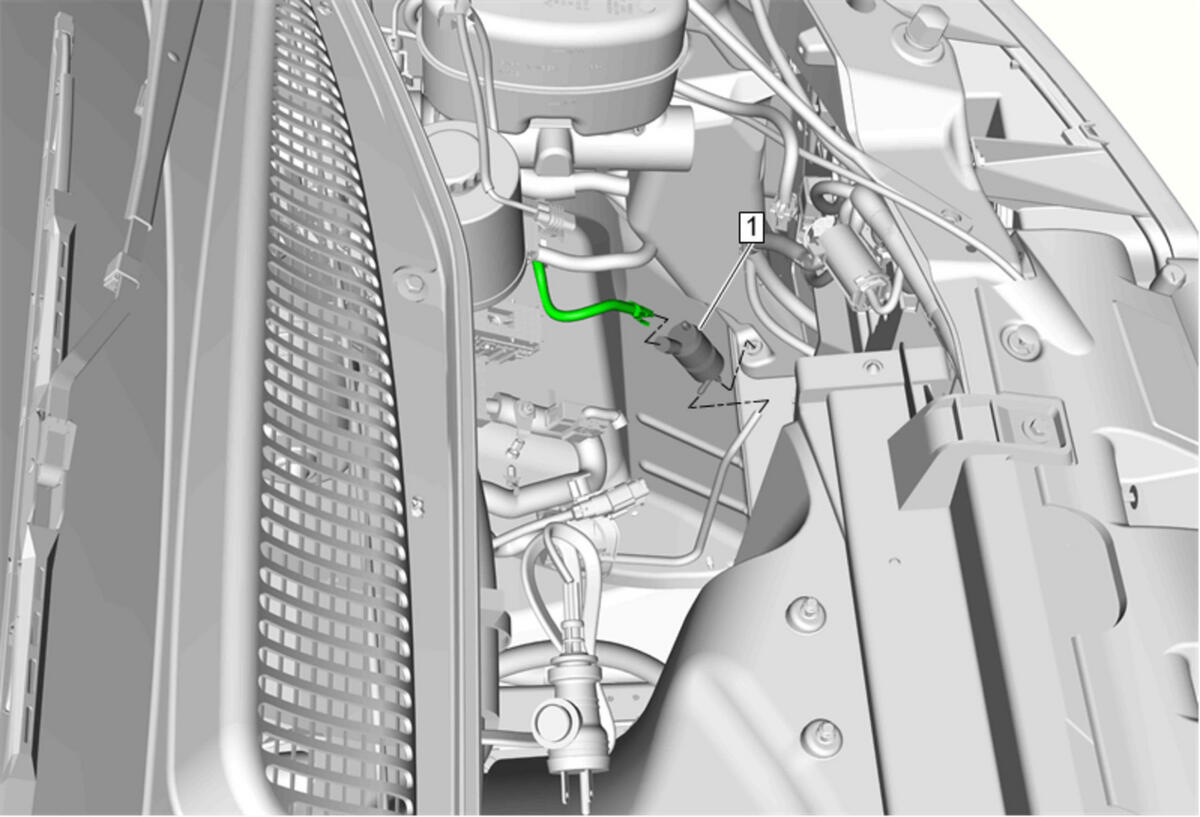

GM4859197Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the windshield washer pump hose is disconnected.
1 Windshield Washer Pump

Procedure

  1. Disconnect the windshield washer pump hose.
  2. Disconnect the electrical connector.
  3. Twist and lift in opposite directions to disengage the windshield washer pump from the windshield washer solvent container and grommet.
