Front Exterior Lighting
Front Exterior Lighting

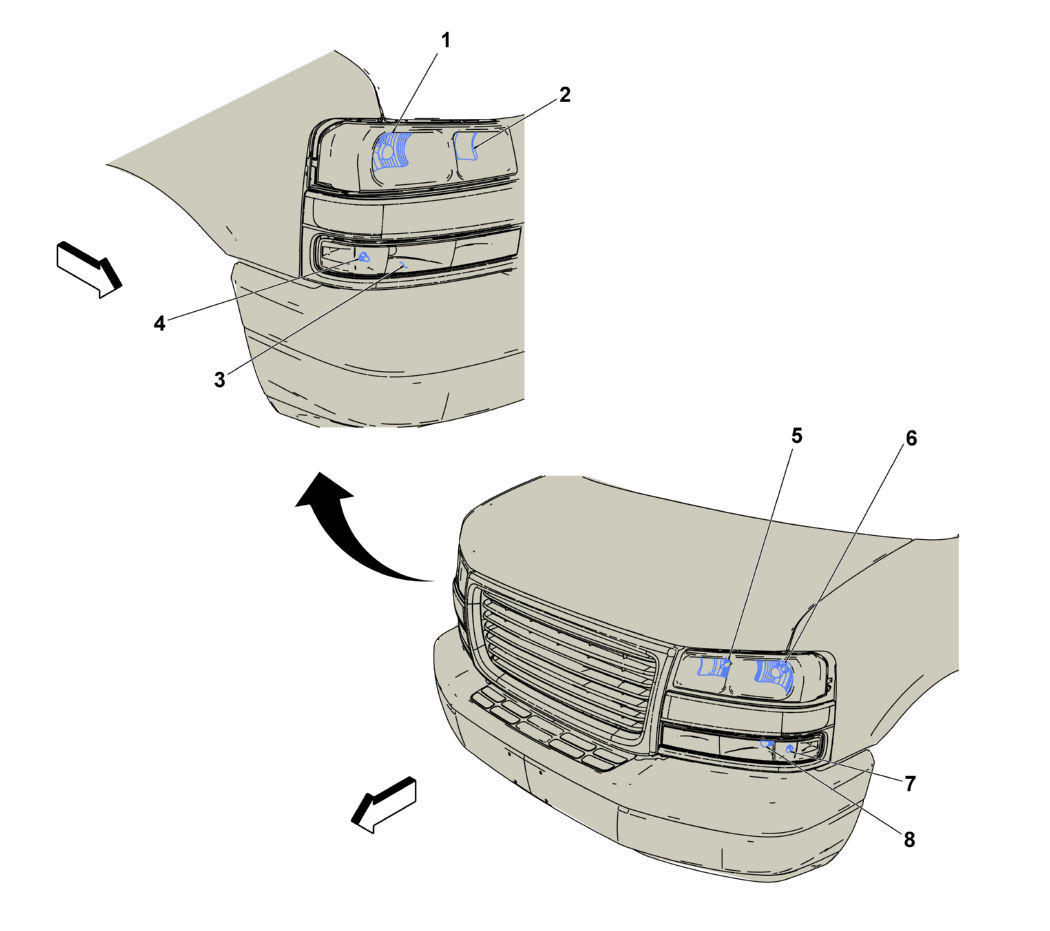

| Harness Name | Callout |
|---|---|
| E4H Headlamp - Right Low Beam E4H Headlamp - Right Low Beam | 1 |
| E4F Headlamp - Right High Beam E4F Headlamp - Right High Beam | 2 |
| E4P Park/Turn Signal Lamp - Right E4P Park/Turn Signal Lamp - Right | 3 |
| E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front | 4 |
| E4E Headlamp - Left High Beam E4E Headlamp - Left High Beam | 5 |
| E4G Headlamp - Left Low Beam E4G Headlamp - Left Low Beam | 6 |
| E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front | 7 |
| E4N Park/Turn Signal Lamp - Left E4N Park/Turn Signal Lamp - Left | 8 |
