Installation Procedure

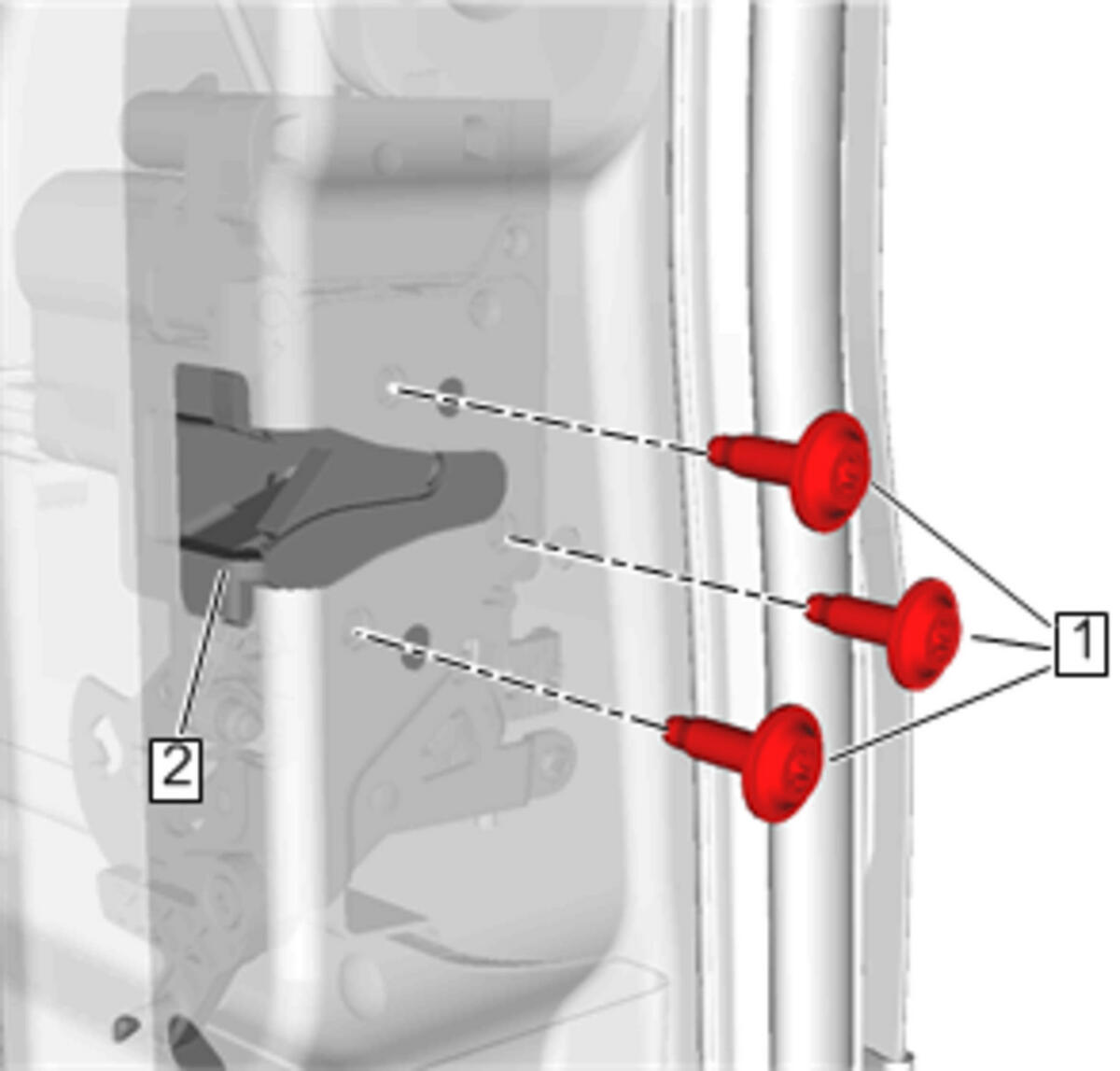

  1. GM4855002Courtesy of GENERAL MOTORS COMPANY

    Intermediate Side Door Lock (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Rear Side Door Latch Bolt (1) - Install and tighten [3x] 10 N.m (88 lb in)

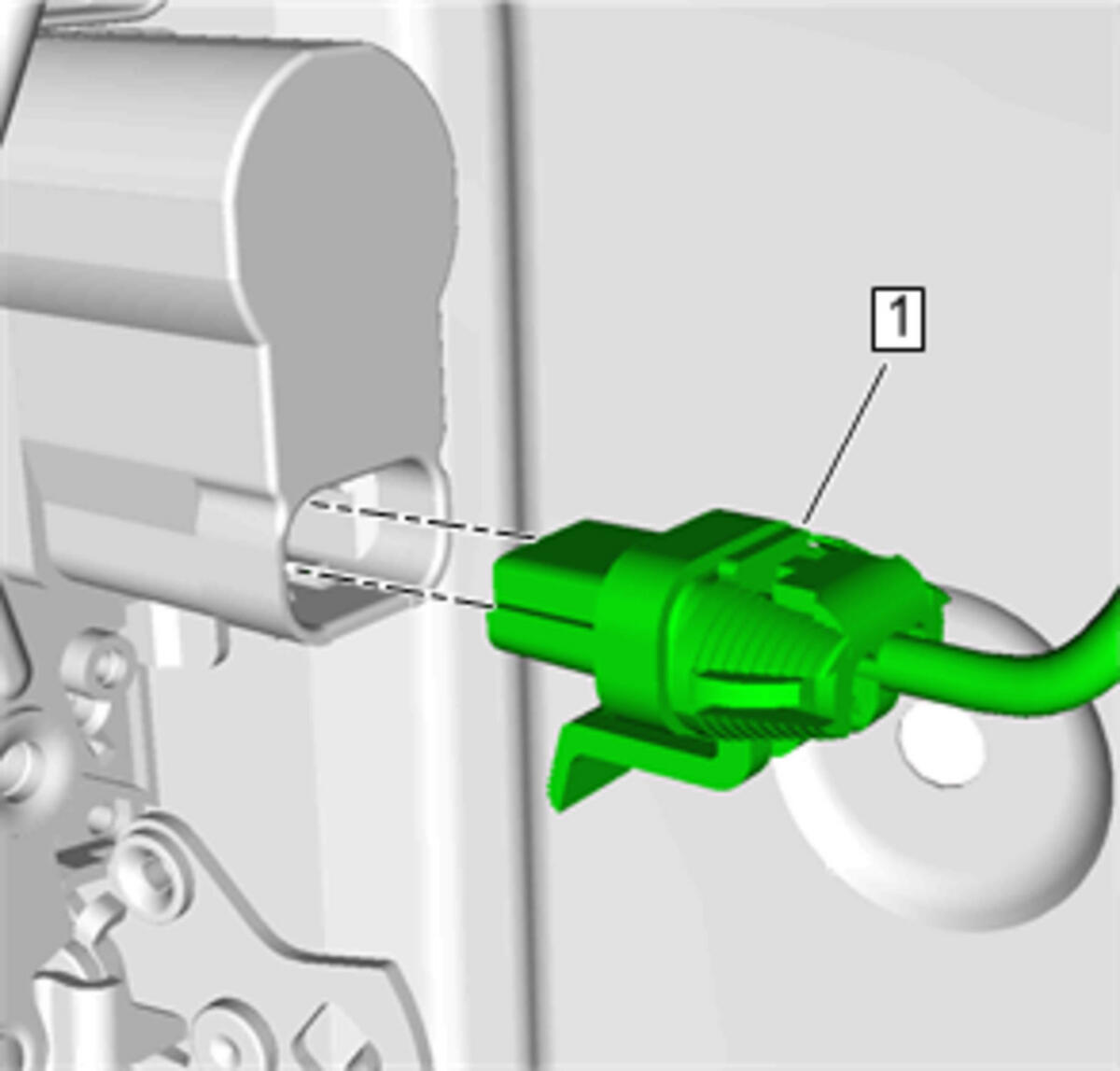

  3. GM4855005Courtesy of GENERAL MOTORS COMPANY

    Intermediate Side Door Wiring Harness (1) - Install

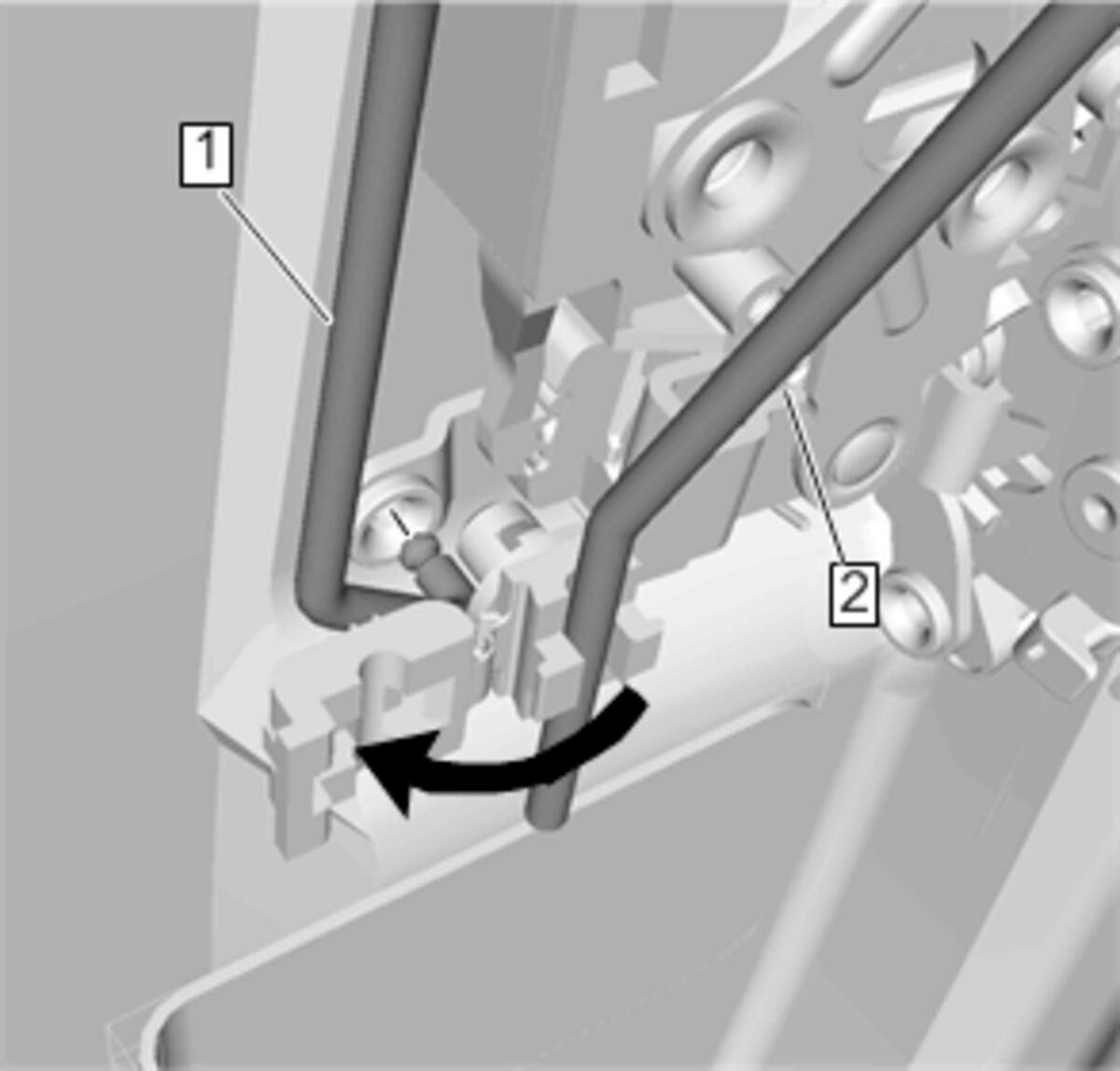

  4. GM4855004Courtesy of GENERAL MOTORS COMPANY

    Intermediate Side Door Locking Rod - Outside (1) - Install

  5. Intermediate Side Door Outside Handle Rod (2) - Install

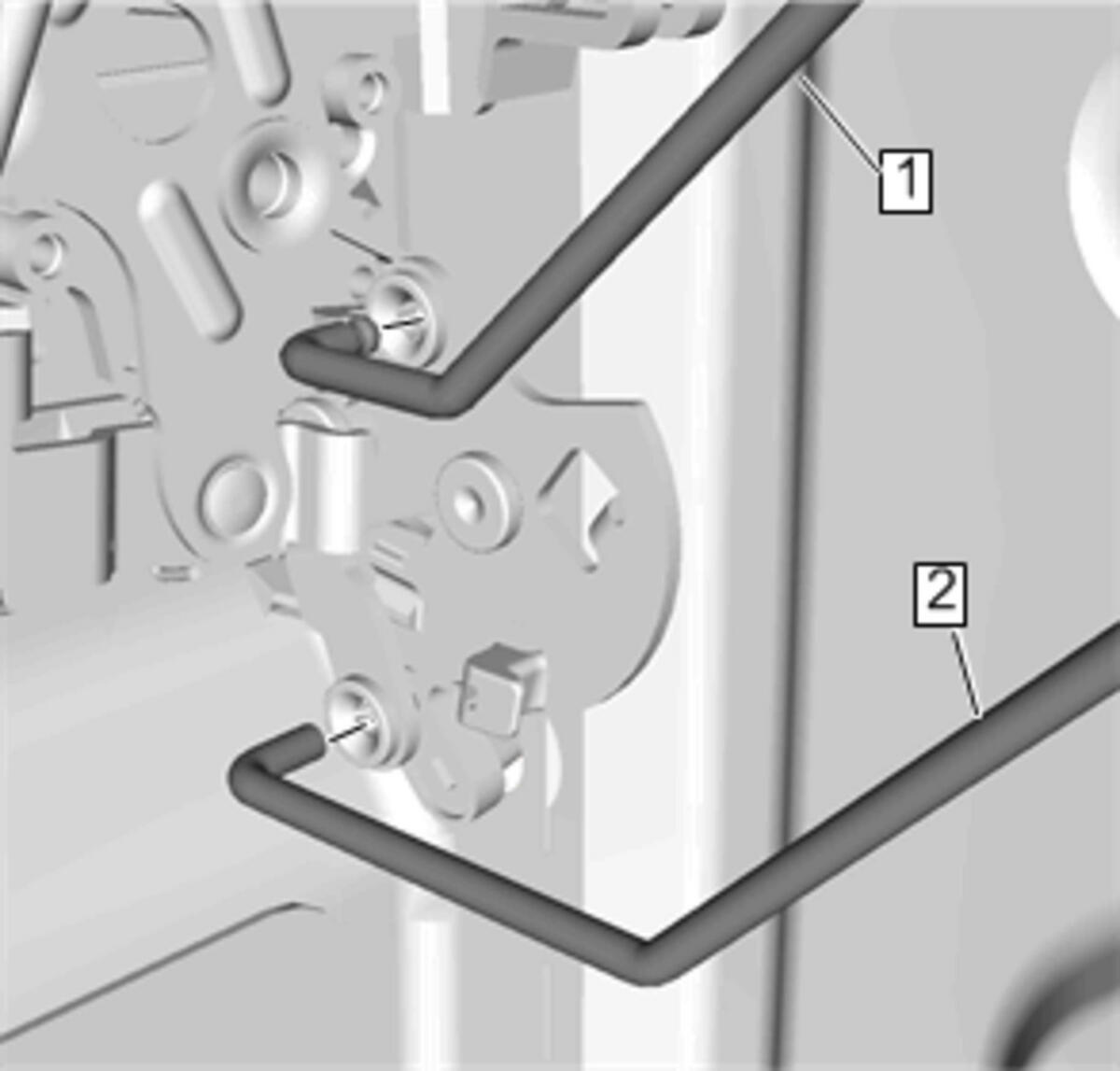

  6. GM4854999Courtesy of GENERAL MOTORS COMPANY

    Intermediate Side Door Inside Handle Rod (1) - Install

  7. Intermediate Side Door Locking Rod - Inside (2) - Install
  8. GM4849411Courtesy of GENERAL MOTORS COMPANY

    Intermediate Side Door Trim Panel (4) - Install - Intermediate Side Door Trim Panel Replacement
