Steering Wheel Replacement

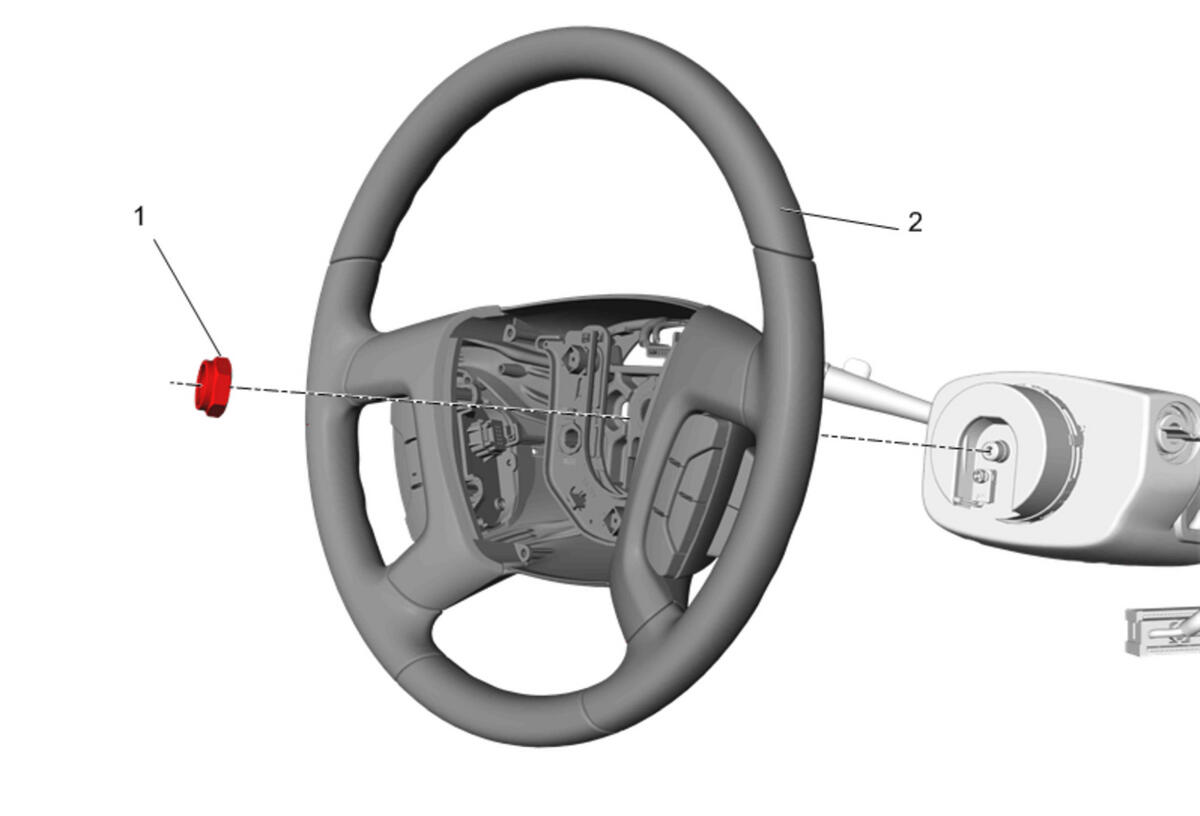

GM4840984Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

SIR Warning .

WARNING:

SIR Inflator Module Handling and Storage Warning .

Preliminary Procedure Airbag Steering Wheel Module Replacement
1 Steering Wheel Nut
CAUTION:

Fastener Caution .


Tighten
37 N.m (27 lb ft)
2 Steering Wheel

Procedure

  1. Disconnect the electrical connectors.
  2. Install the steering wheel nut until 2 to 3 threads are engaged.
  3. Wiggle the steering wheel until the wheel disengages completely.
  4. Steering Wheel Nut - Remove
  5. Steering Wheel - Remove
  6. Transfer components as necessary.
