Steering Column Housing Replacement

Courtesy of GENERAL MOTORS COMPANY

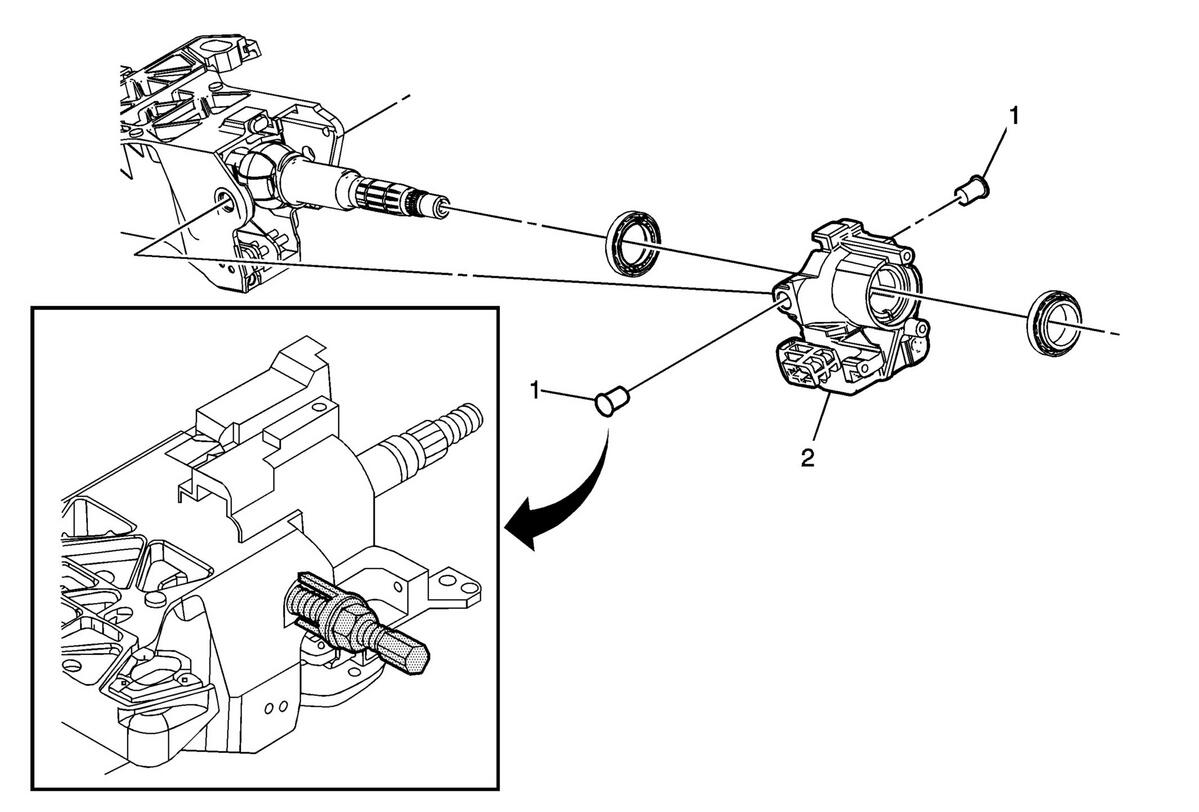

Callout	Component Name
Preliminary Procedures Steering Column Tilt Spring Replacement Ignition Lock Cylinder Case Replacement
1	Steering Column Pivot Pin [2x] Procedure Use the CH-21854 - 01 remover to remove the steering column tilt head pivot pins from the steering column tilt head assembly. Before installing, lubricate the steering column tilt head pivot pins with the GM recommended lubricant. Once installed, stake the steering column in three locations around each steering column tilt head pivot pin. Special Tools CH-21854 - 01 Pivot Pin Remover Equivalent regional tools: Special Tools
2	Steering Column Tilt Head Assembly Procedure Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Steering Column Pivot Pin [2x]

Procedure

Use the CH-21854 - 01 remover to remove the steering column tilt head pivot pins from the steering column tilt head assembly.
Before installing, lubricate the steering column tilt head pivot pins with the GM recommended lubricant.
Once installed, stake the steering column in three locations around each steering column tilt head pivot pin.

Special Tools
CH-21854 - 01 Pivot Pin Remover
Equivalent regional tools: Special Tools

Steering Column Tilt Head Assembly
Procedure
Transfer components as necessary.
