Installation Procedure

  1. Install the seal to the lock cylinder (2).

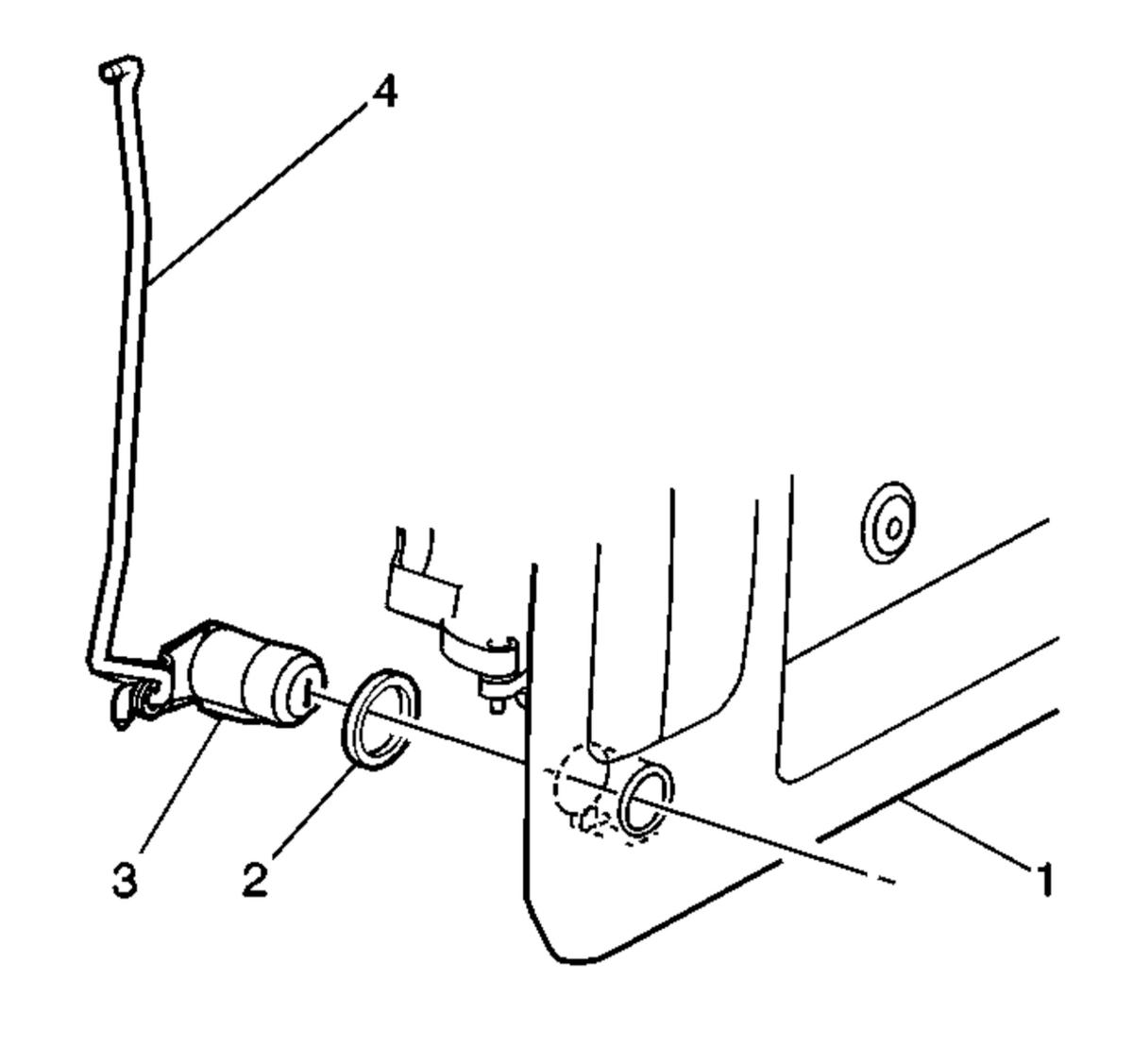

  2. GM334079Courtesy of GENERAL MOTORS COMPANY

    Install the lock cylinder (3) to the vehicle.

  3. Press the lock cylinder (3) into the handle in order to engage the lock cylinder retainer.
  4. Install the clip in order to retain the lock cylinder lever (4) to the lock cylinder (3).
  5. Install the rear door outside handle and license pocket (1). Refer to Rear Door Outside Handle and License Pocket Replacement .
  6. Install the rear door trim panel, right side. Refer to Rear Door Trim Panel Replacement - Right Side (E24) .
