Turn Signal Switch Bracket Replacement

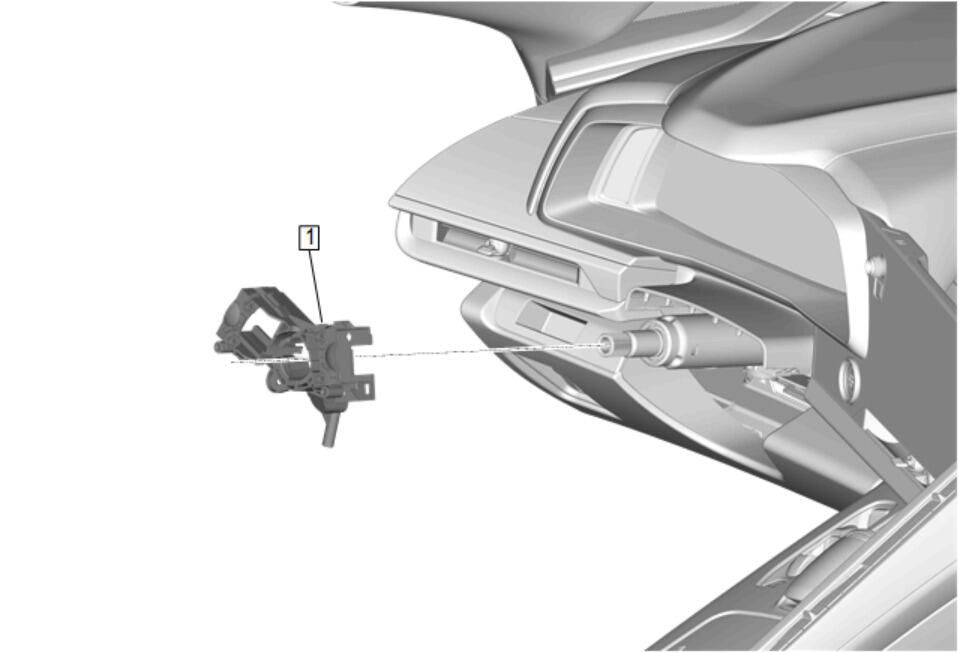

GM5359035Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Airbag Coil Replacement
  2. Turn Signal Switch Replacement
  3. Windshield Wiper and Windshield Washer Switch Replacement
1 Turn Signal Switch Bracket

Procedure

  1. Release the 2 harness retainers from the left and right side of the turn signal switch bracket.
  2. Release the retaining tabs and remove the turn signal switch bracket from the steering column.
