Removal Procedure

  1. Steering Wheel Airbag - Remove - Steering Wheel Airbag Replacement

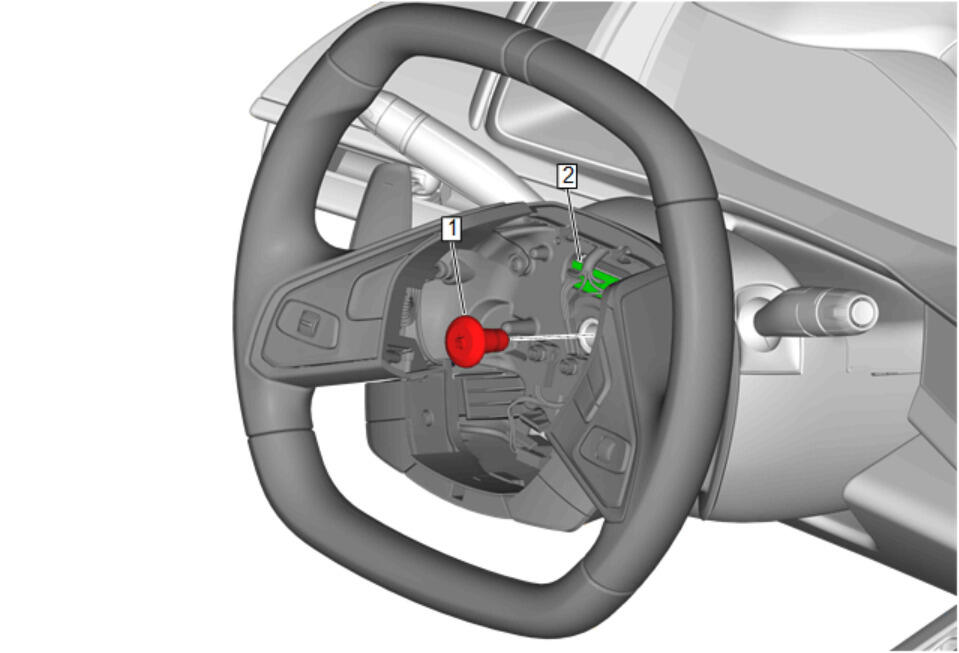

  2. GM5359891Courtesy of GENERAL MOTORS COMPANY

    Remove the steering wheel bolt (1).

  3. Disconnect the electrical connector (2).

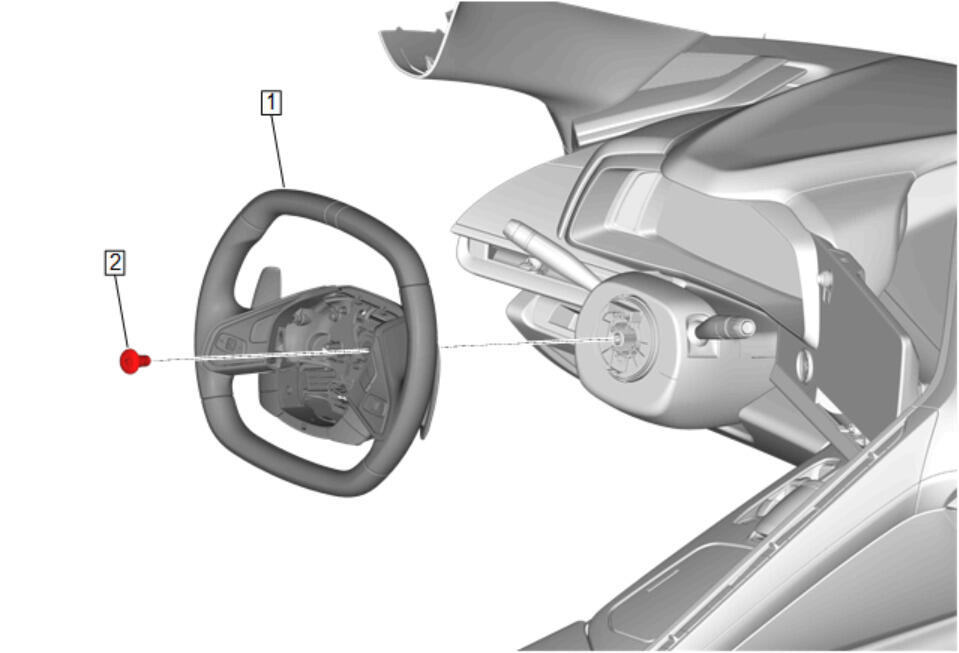

  4. GM5359031Courtesy of GENERAL MOTORS COMPANY

    Perform the following steps to remove the steering wheel (1):

    1. Install the steering wheel bolt (2) until 2 to 3 threads are engaged.
    2. Wiggle the steering wheel (1) until the steering wheel disengages completely.
    3. Remove the steering wheel bolt (2).
    4. Remove the steering wheel (1).
  5. Transfer components as necessary.
