Removal Procedure

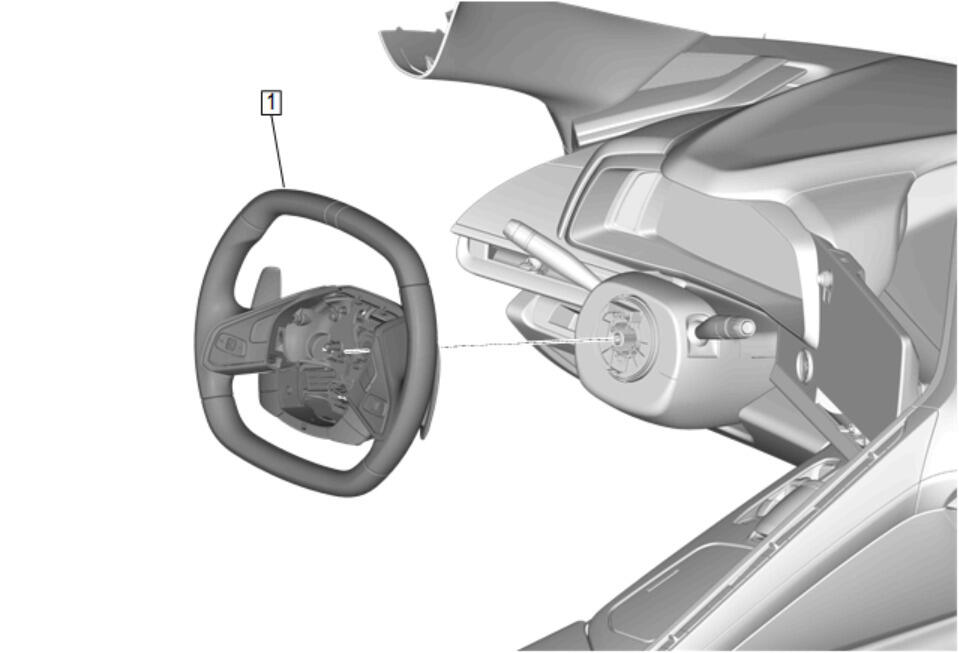

  1. GM5359900Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel (1) - Remove - Steering Wheel Replacement

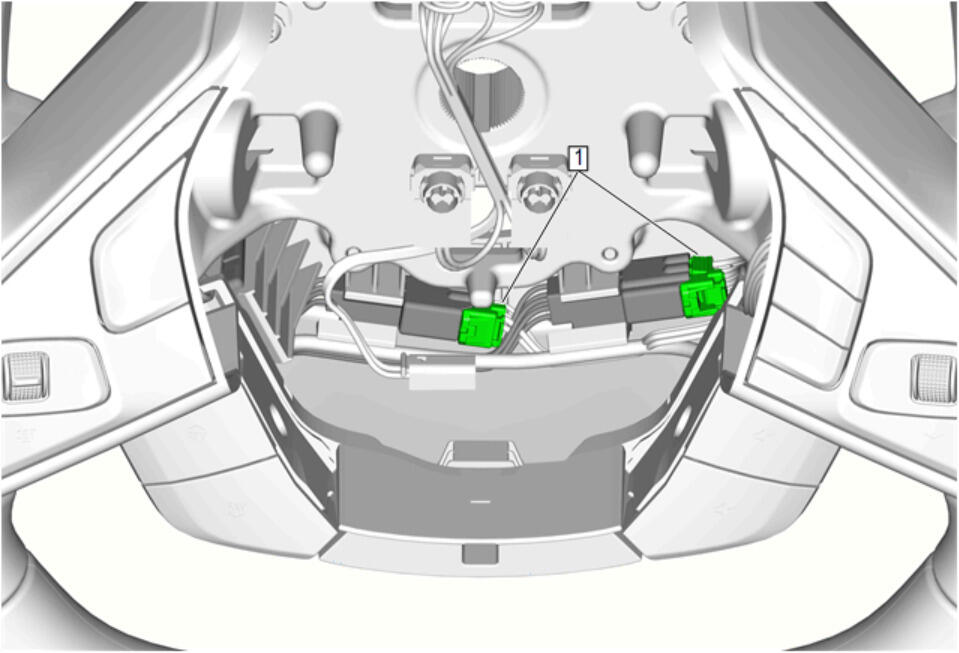

  2. GM5381523Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors (1).

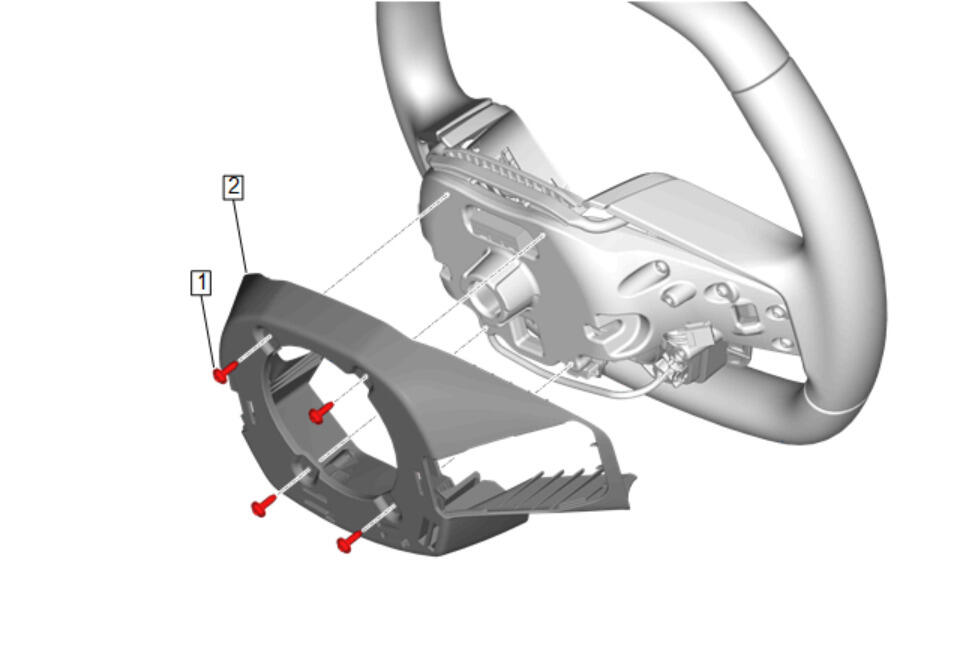

  3. GM5360192Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Shroud (1) - Remove - Steering Wheel Shroud Replacement

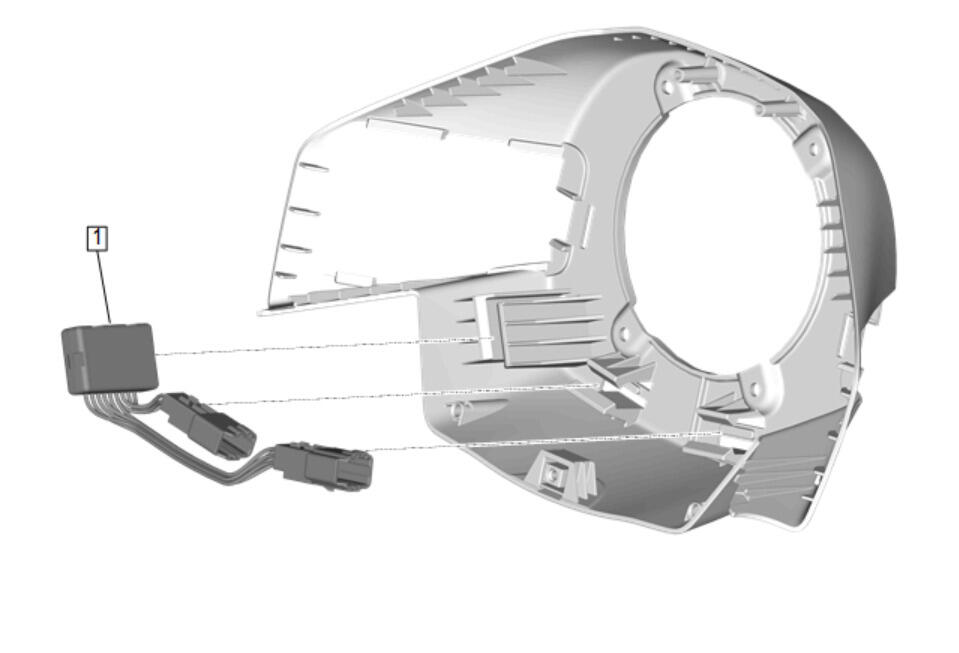

  4. GM5381525Courtesy of GENERAL MOTORS COMPANY

    Heated Steering Wheel Module (1) - Remove
