Installation Procedure

Courtesy of GENERAL MOTORS COMPANY
NOTE:
- There are flats on the electric belt drive rack and pinion steering gear to hold it from rotating.
- Some components not shown for graphic clarity.

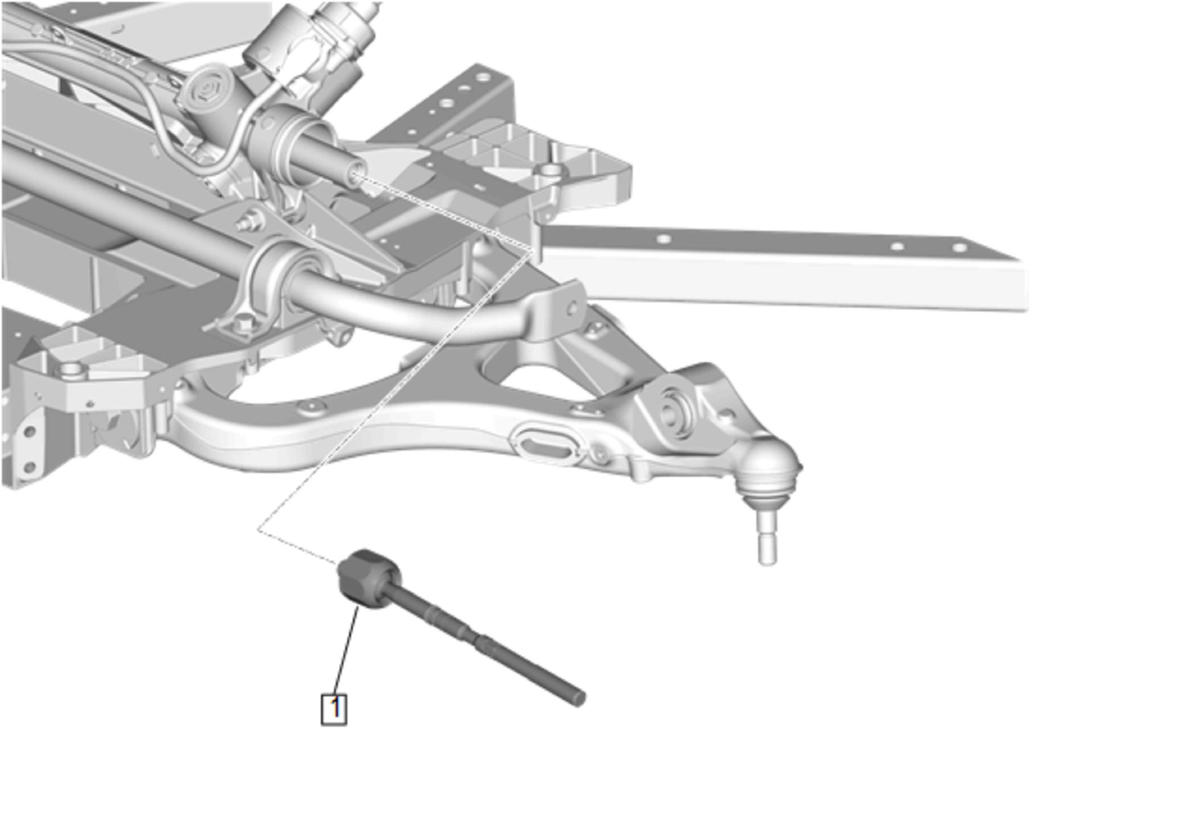

Use a suitable wrench to install the steering linkage inner tie rod (1).

CAUTION:

Refer to Fastener Caution .

Steering Linkage Inner Tie Rod (1) - Tighten 105 N.m (77 lb ft)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

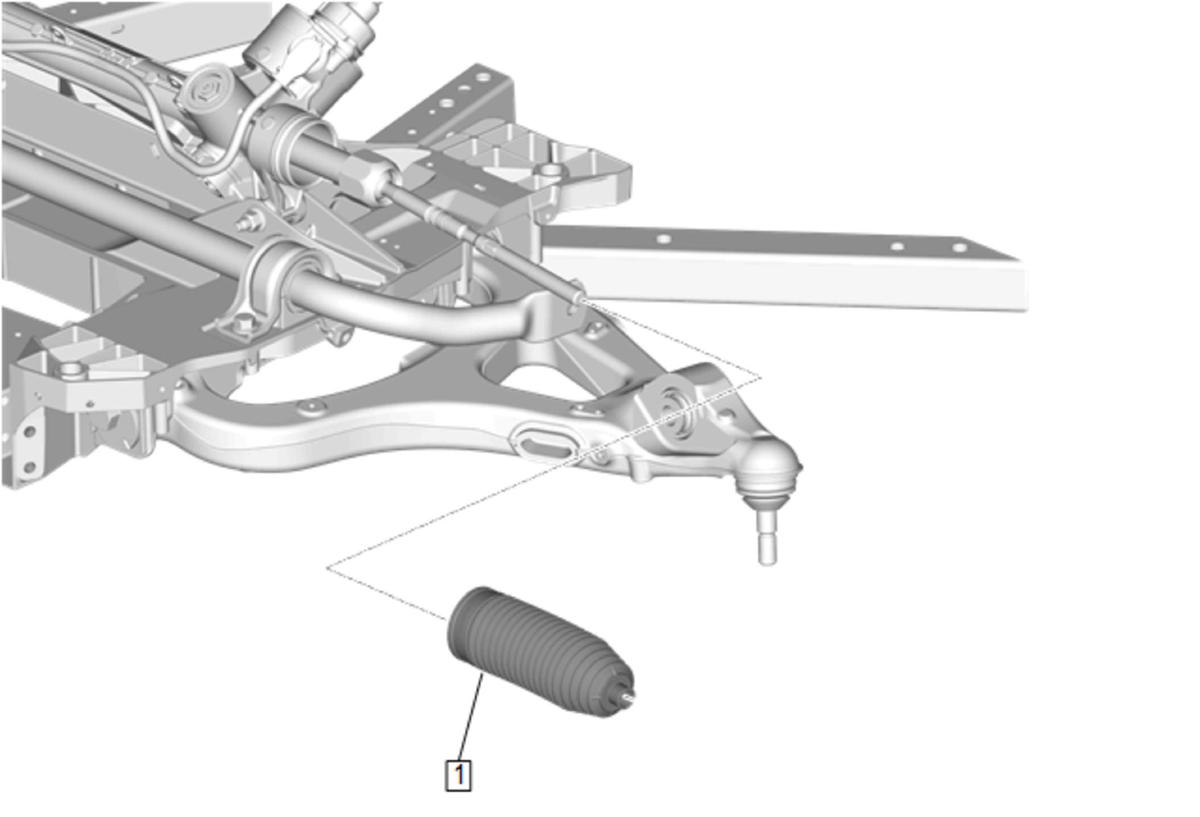

Steering Gear Boot (1) - Install - Steering Gear Boot Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

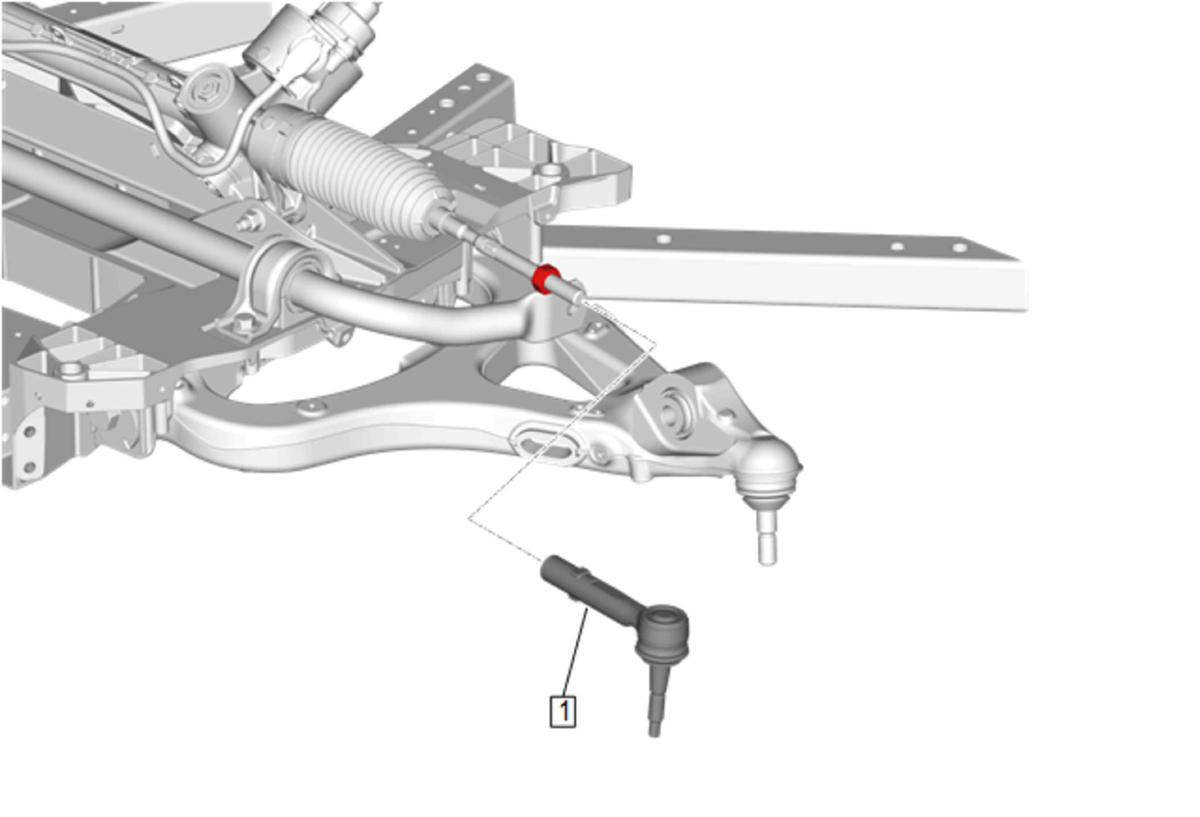

Steering Linkage Outer Tie Rod (1) - Install - Steering Linkage Outer Tie Rod Replacement
Measure and adjust the wheel alignment. Wheel Alignment Measurement
