Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

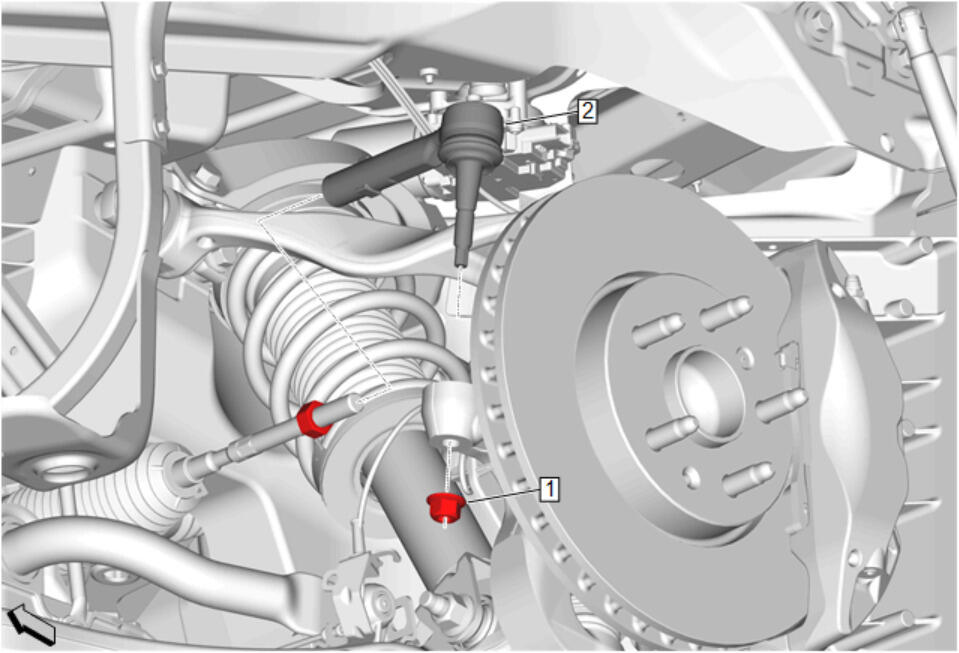

Steering Linkage Outer Tie Rod (2) - Remove - Steering Linkage Outer Tie Rod Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.

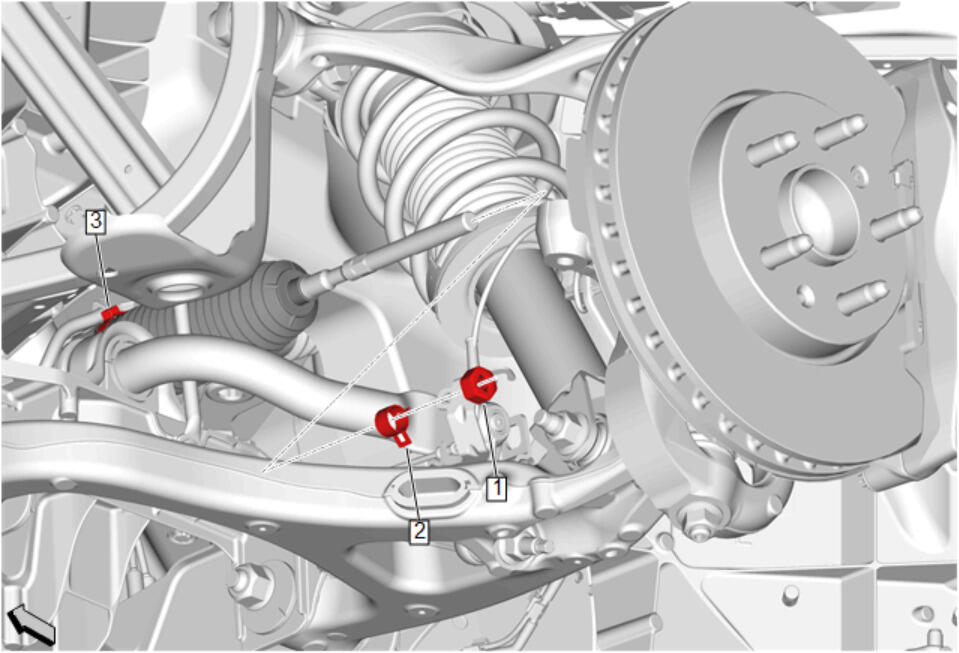

Steering Linkage Inner Tie Rod Nut (1) - Remove
Steering Gear Boot Outer Clamp (2) - Remove
Steering Gear Boot Inner Clamp (3) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

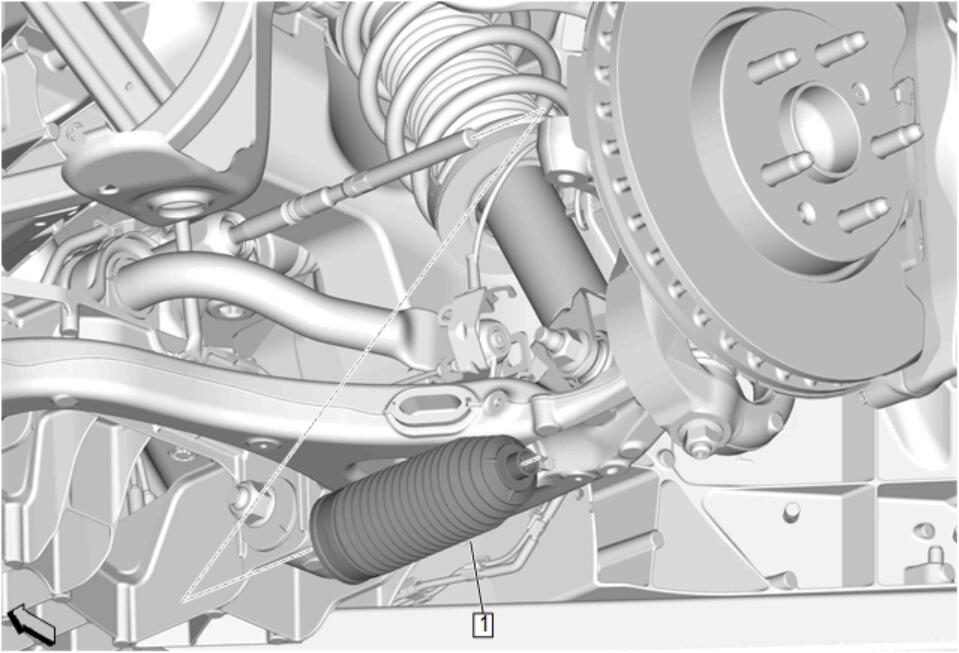

Steering Gear Boot (1) - Remove
