Throttle Body Assembly Replacement

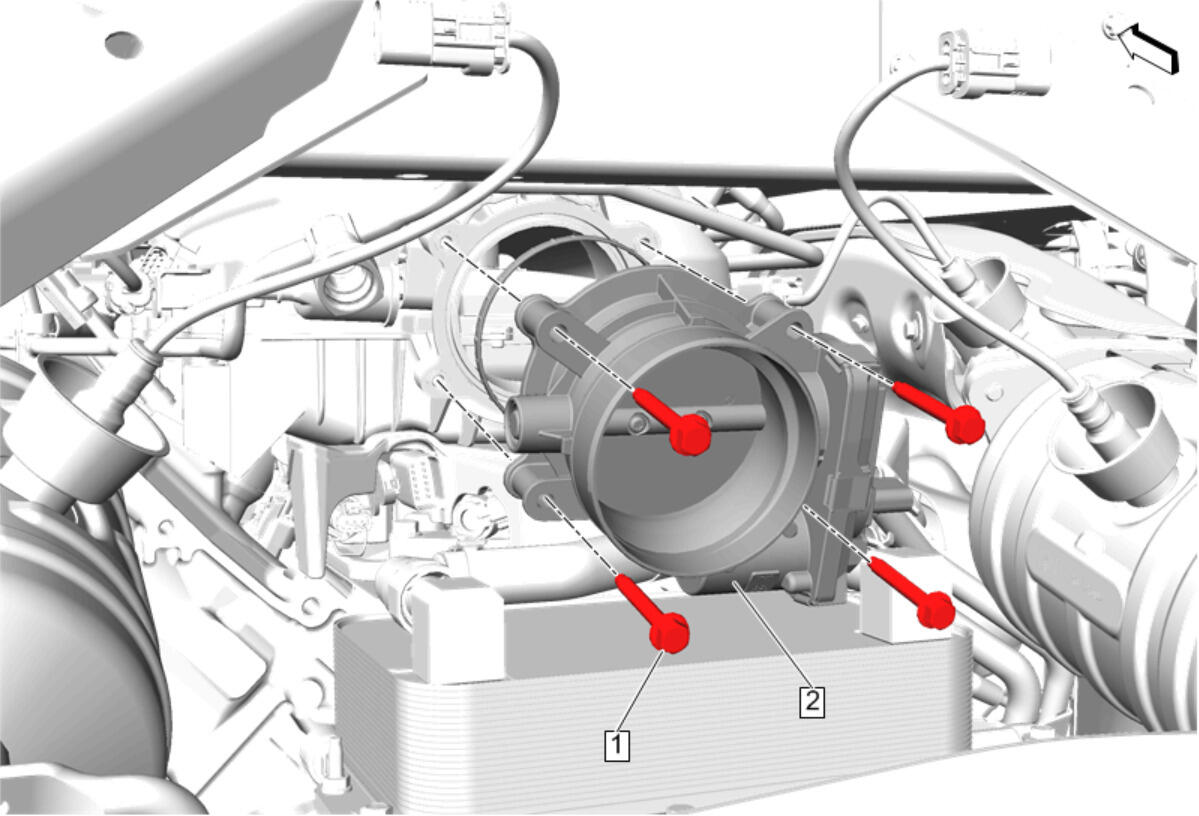

GM5367137Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Outlet Duct Replacement (Coupe) , or Air Cleaner Outlet Duct Replacement (Convertible)
  2. Air Cleaner Assembly Replacement (Coupe) , or Air Cleaner Assembly Replacement (Convertible)
1 Throttle Body Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Throttle Body

Procedure

  1. Disconnect the electrical connectors.
  2. Install NEW throttle body gasket/seals.
  3. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
