Removal Procedure

WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

  1. Fuel Tank-Right Side - Remove - Fuel Tank Replacement - Right Side

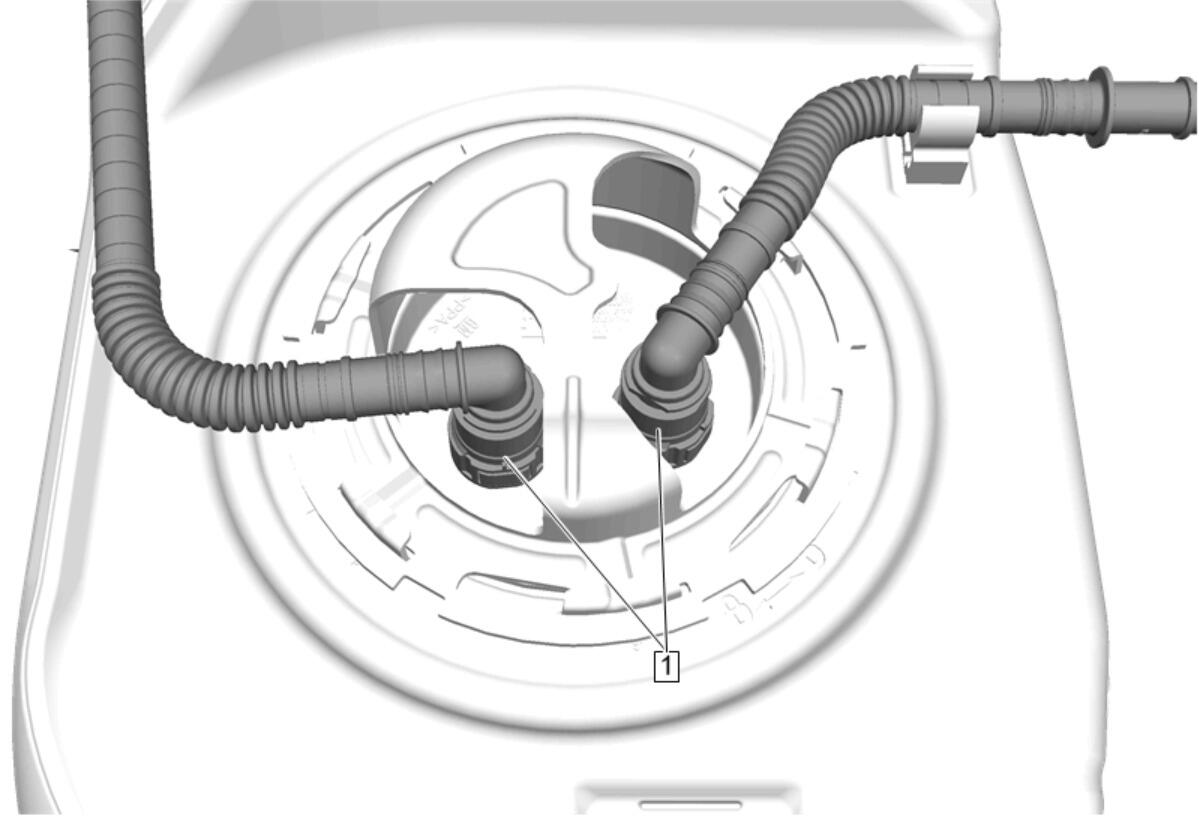

  2. GM5373070Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed and Evaporative Emission Pipe (1) - Disconnect [2x] - Plastic Collar Quick Connect Fitting Service

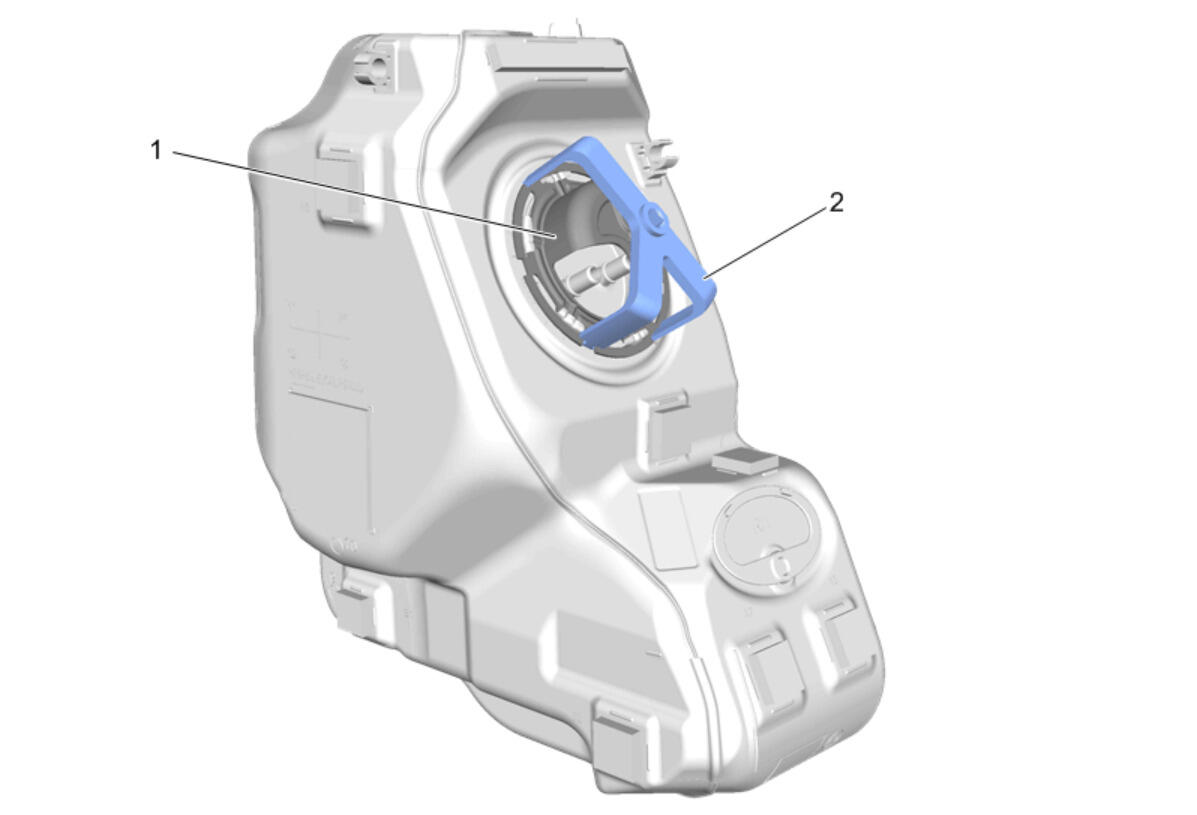

  3. GM5373071Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Ring (1) - Remove - CH-52075  Fuel Pump Lock Ring Wrench (2)

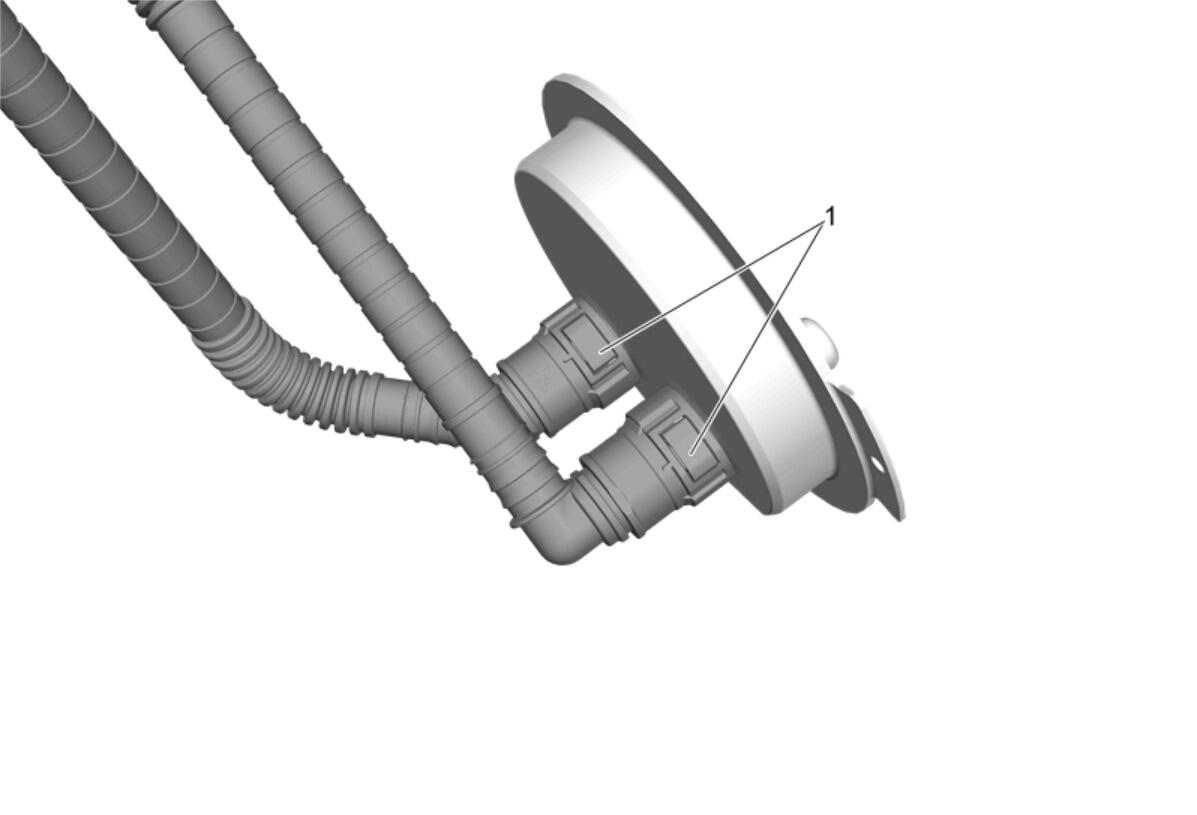

  4. GM5373073Courtesy of GENERAL MOTORS COMPANY

    Vent Pipe (1) - Disconnect [2x] - Plastic Collar Quick Connect Fitting Service

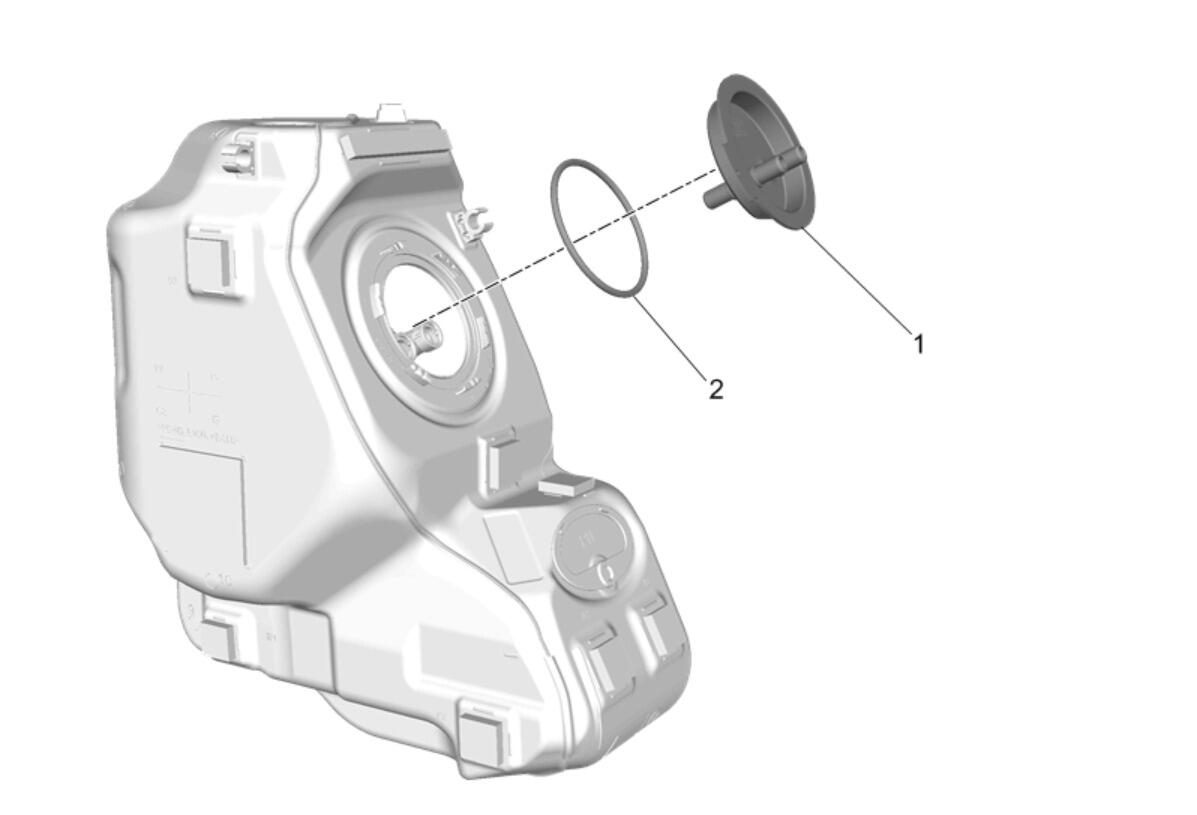

  5. GM5373072Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender (1) - Remove

  6. O-Ring (2) - Remove and DISCARD
