Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Gasket (2) - Install NEW
Raise the exhaust muffler into position and connect the electrical connectors at the two center exhaust control valve actuators.

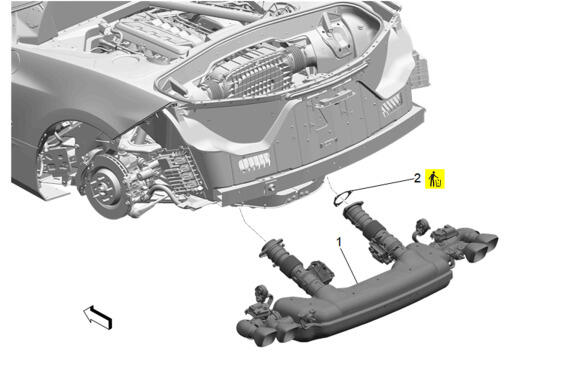

Exhaust Muffler (1) - Install
Courtesy of GENERAL MOTORS COMPANY

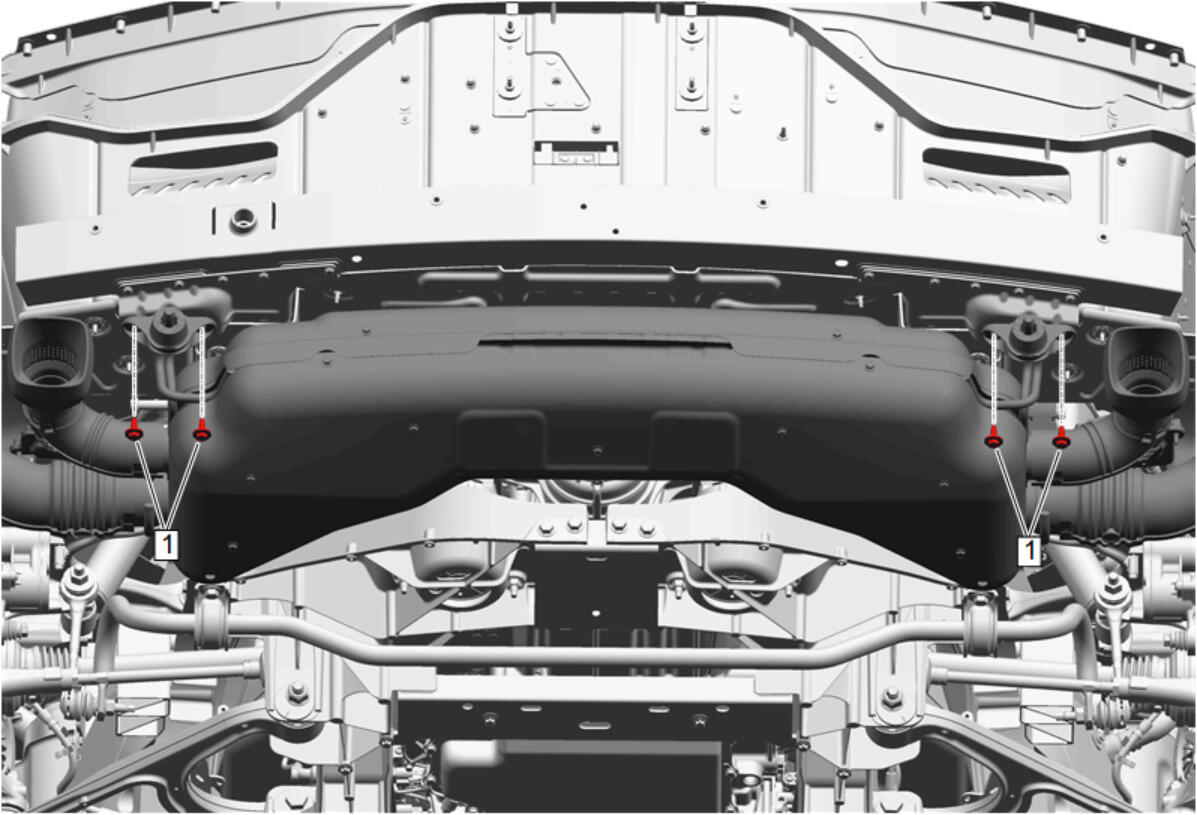

Exhaust Muffler Hanger Bracket Bolt (1) - Install [4x] - Exhaust Rear Muffler Insulator Replacement
Courtesy of GENERAL MOTORS COMPANY

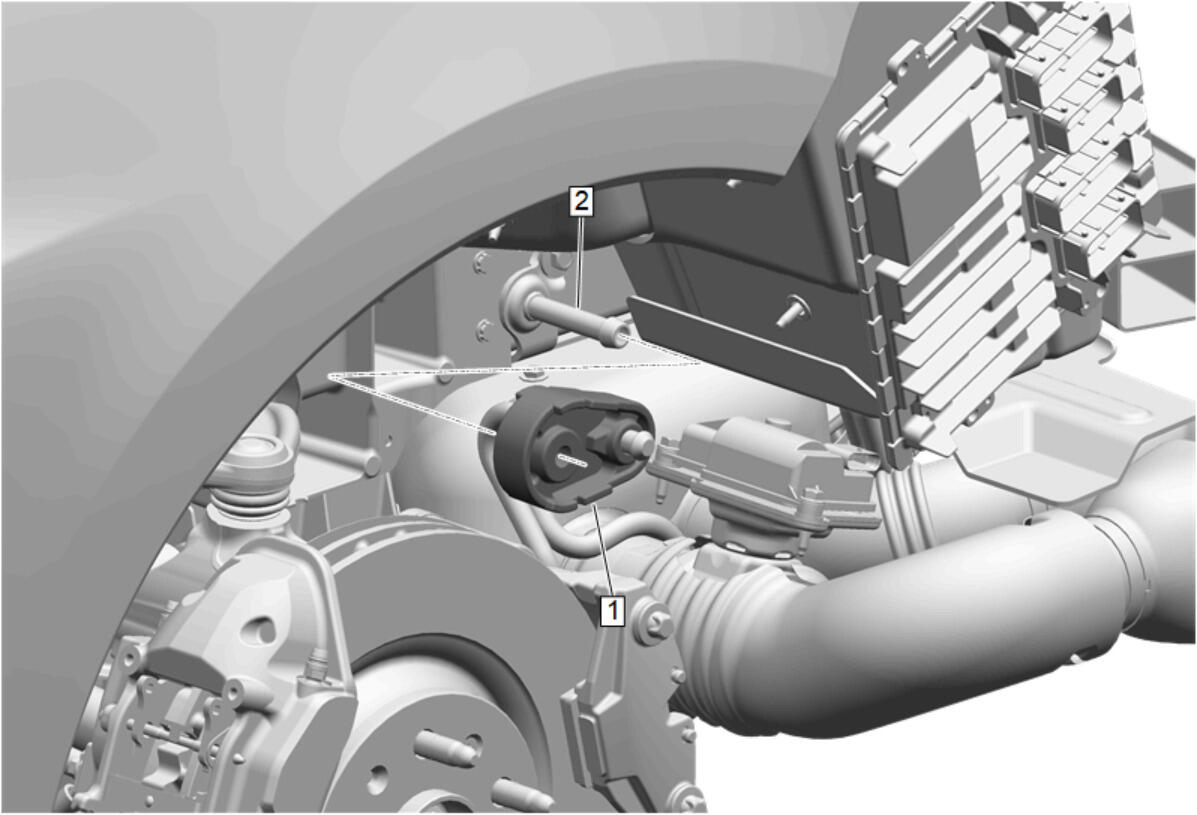

Install the exhaust front insulators (1) to the right and left side exhaust front brackets (2). [2x]
Remove the transmission jack from the exhaust muffler.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

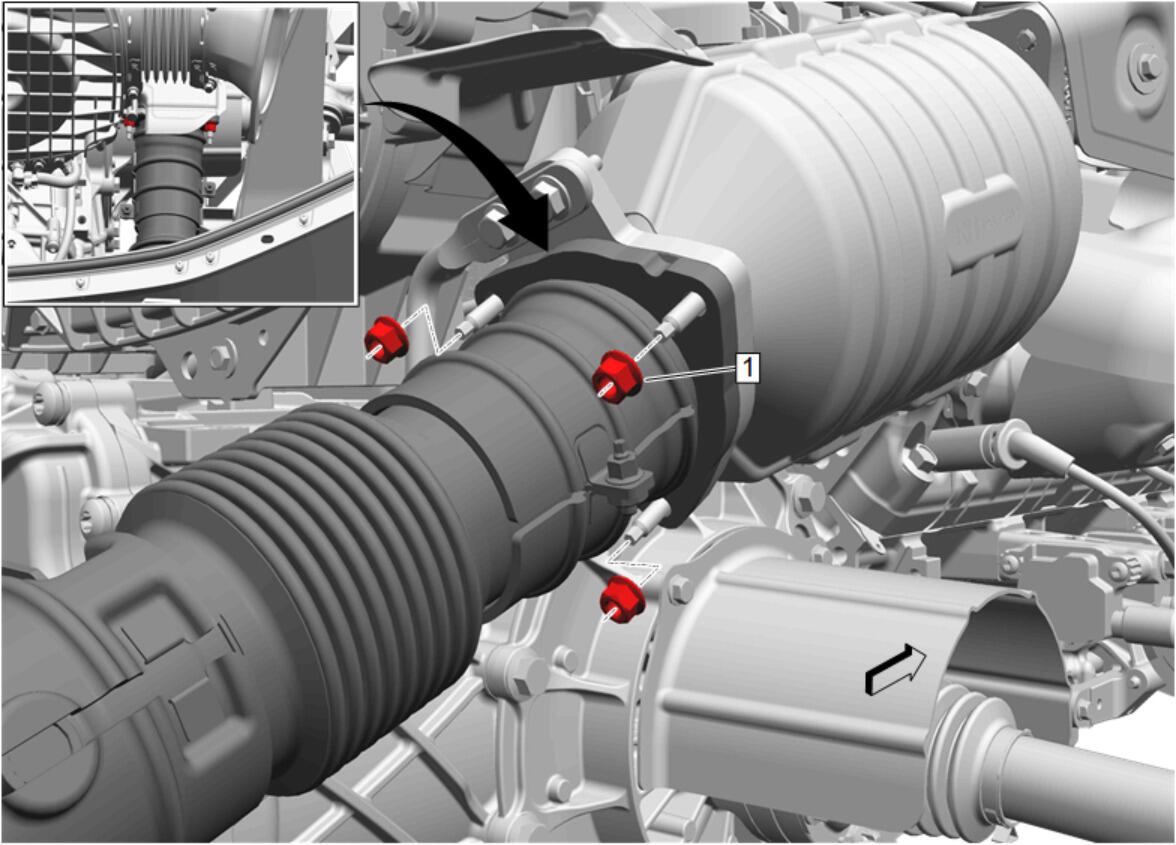

Exhaust System Rear Nut (1) - Install and tighten [3x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

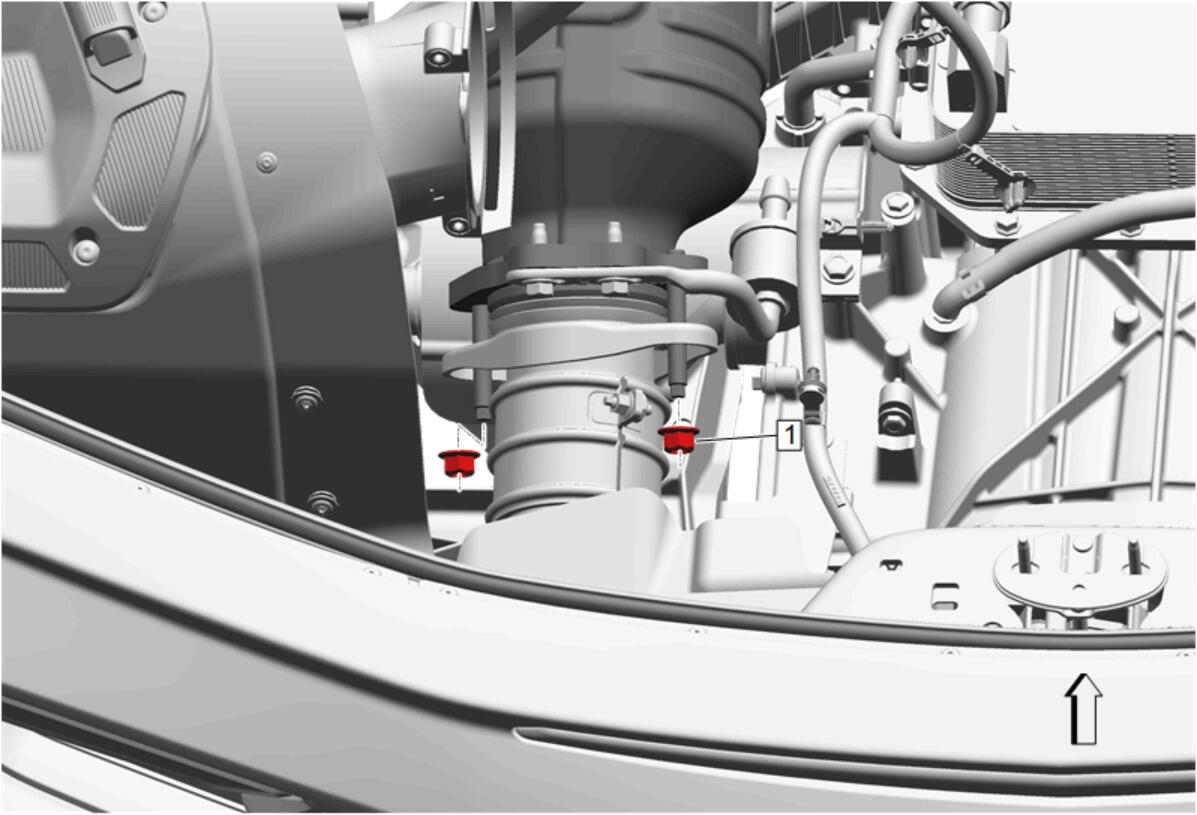

Exhaust System Rear Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

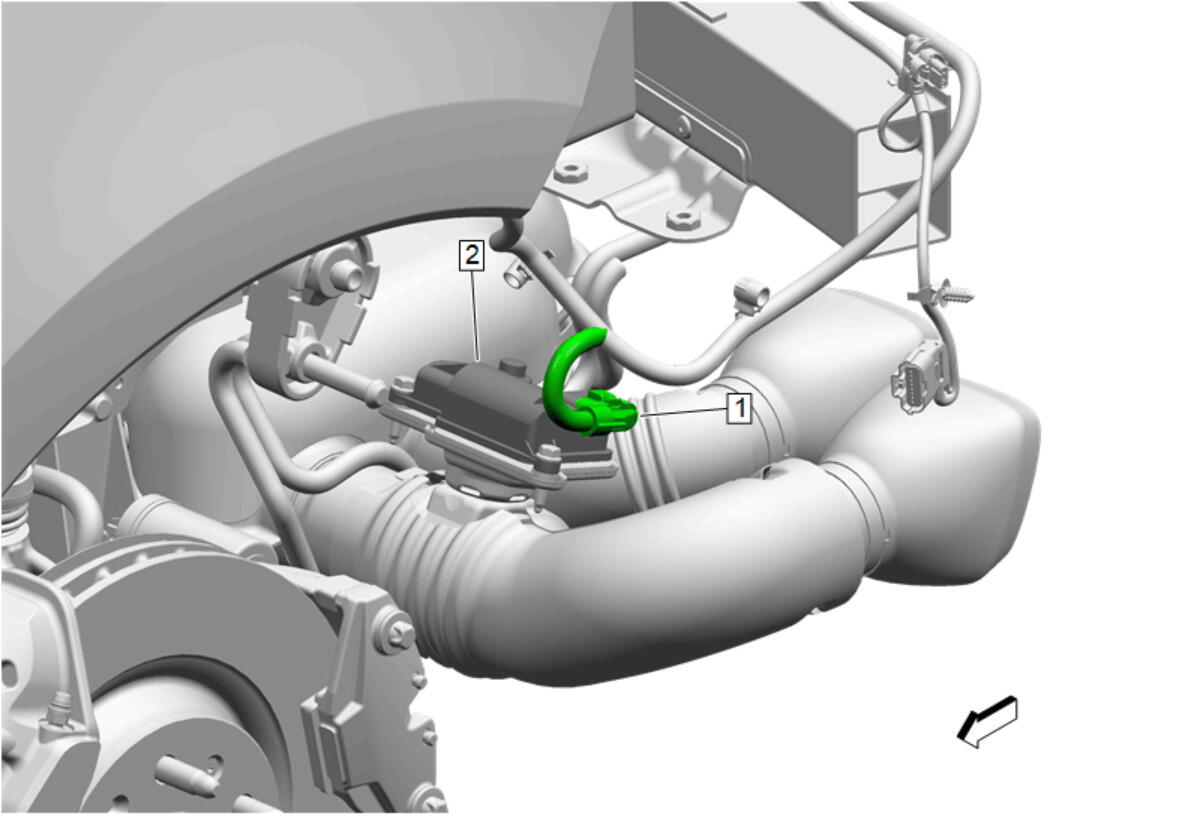

Connect the electrical connector (1) at the left and right side exhaust control valve actuators (2). [2x]
Courtesy of GENERAL MOTORS COMPANY

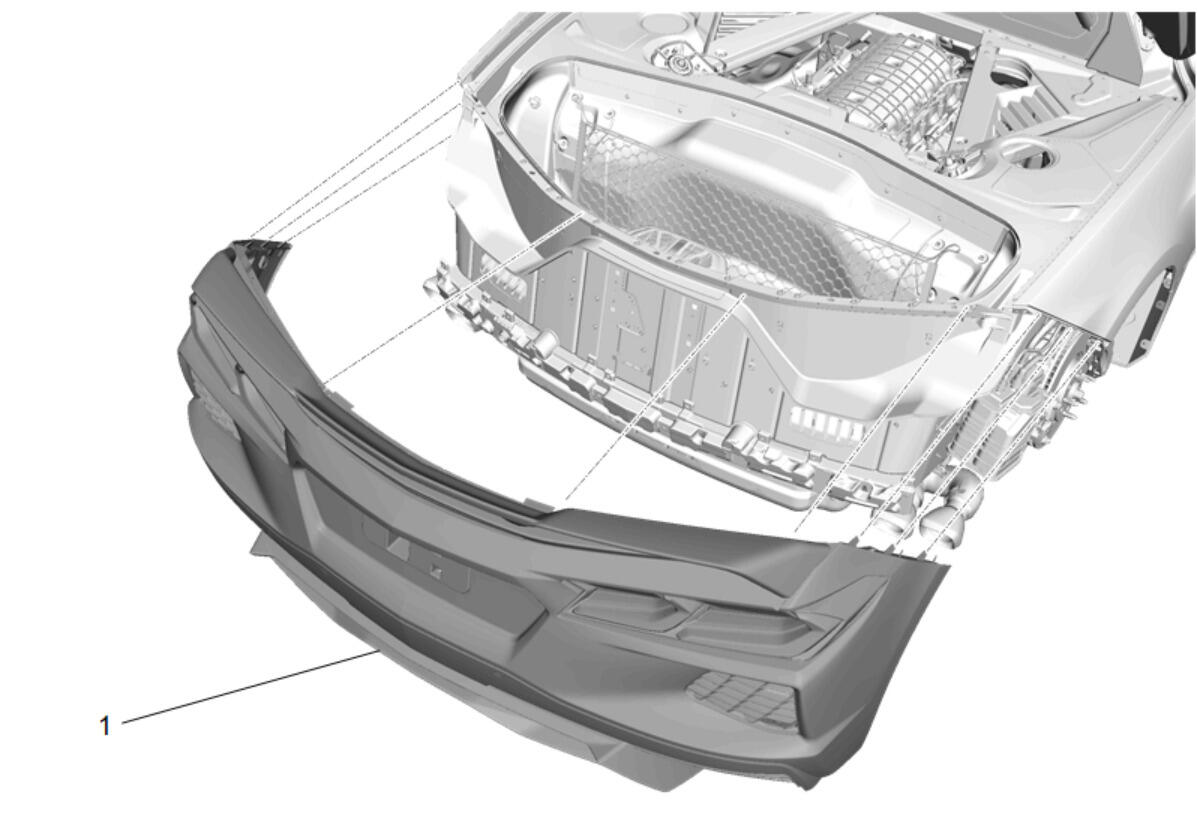

Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

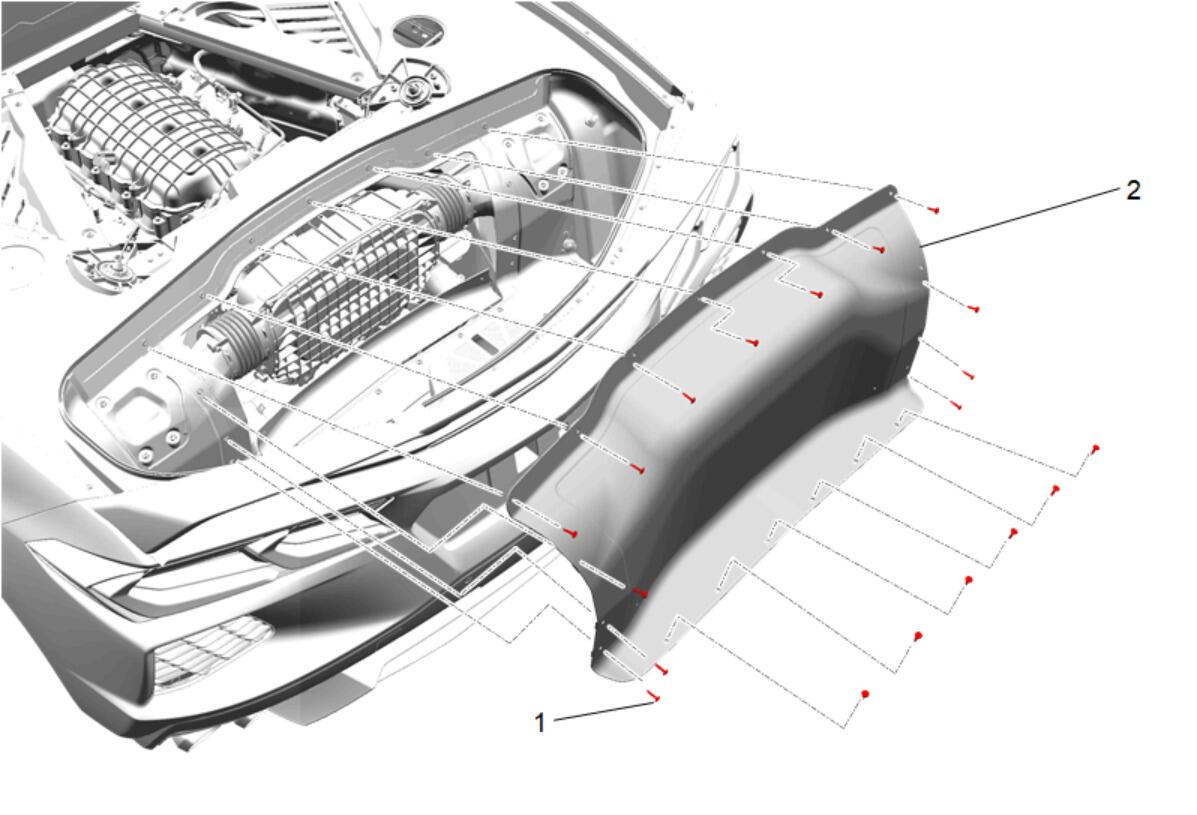

Air Cleaner Access Cover (2) - Install - Air Cleaner Access Cover Replacement (Coupe) , or Air Cleaner Access Cover Replacement (Convertible)
