Exhaust Front Insulator Replacement

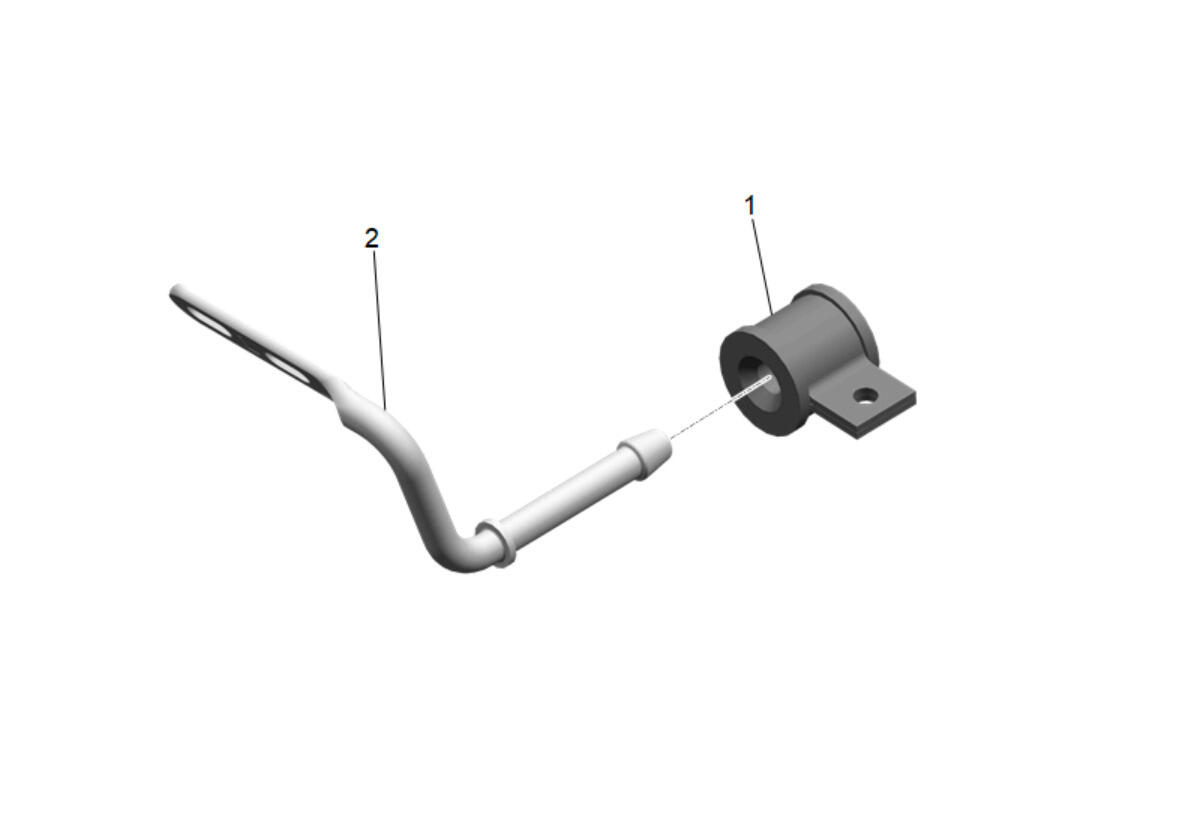

GM5377967Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Preliminary Procedure Exhaust Front Hanger Replacement (Left Side) , or Exhaust Front Hanger Replacement (Right Side)
1 Exhaust Front Insulator
Procedure
Separate the exhaust front insulator (1) from the exhaust front hanger (2).
2 Exhaust Front Hanger
