Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

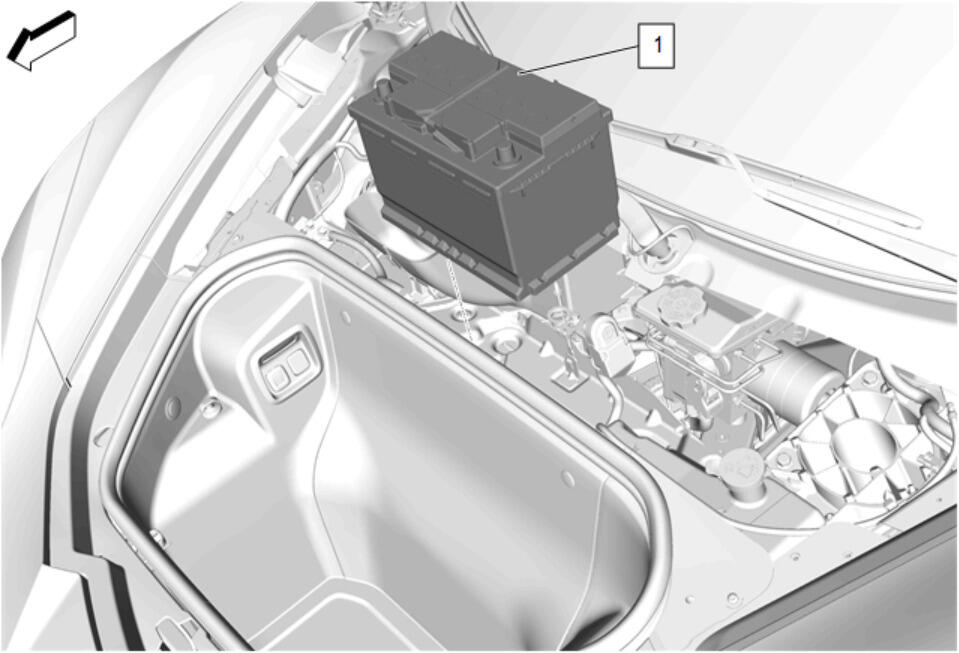

  2. GM5363884Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Remove - Battery Replacement

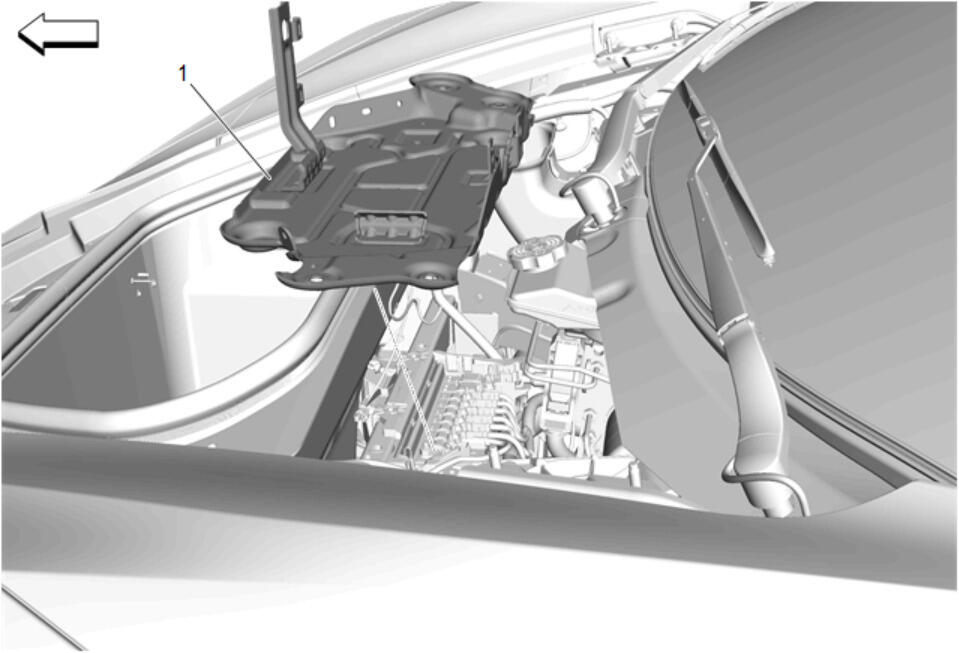

  3. GM5366045Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (1) - Remove - Battery Tray Replacement

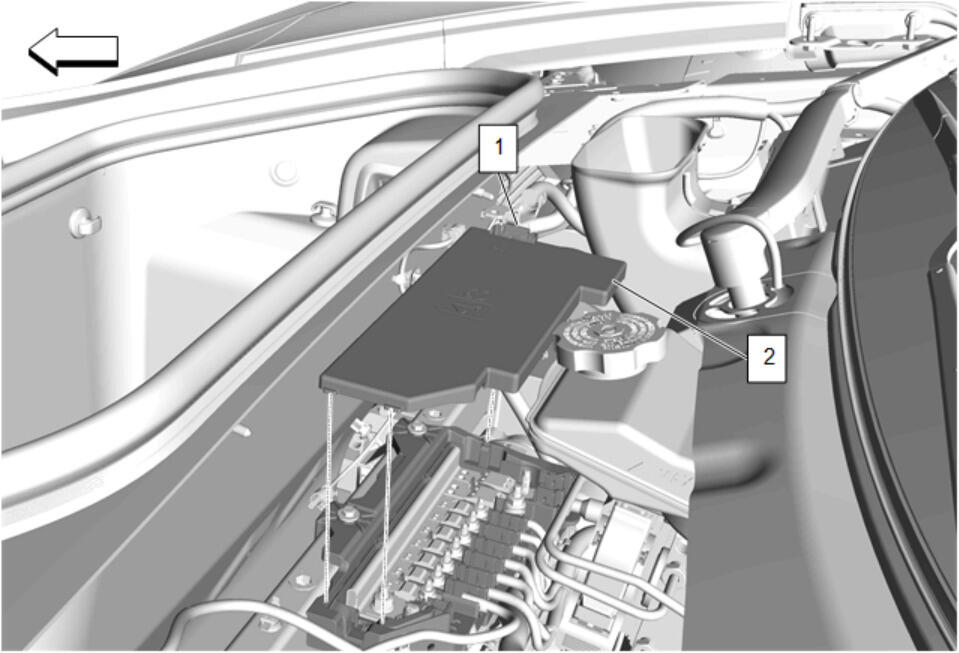

  4. GM5366194Courtesy of GENERAL MOTORS COMPANY

    Retaining Tab (1) - Disengage

  5. Battery Distribution Fuse Block Cover (2) - Remove

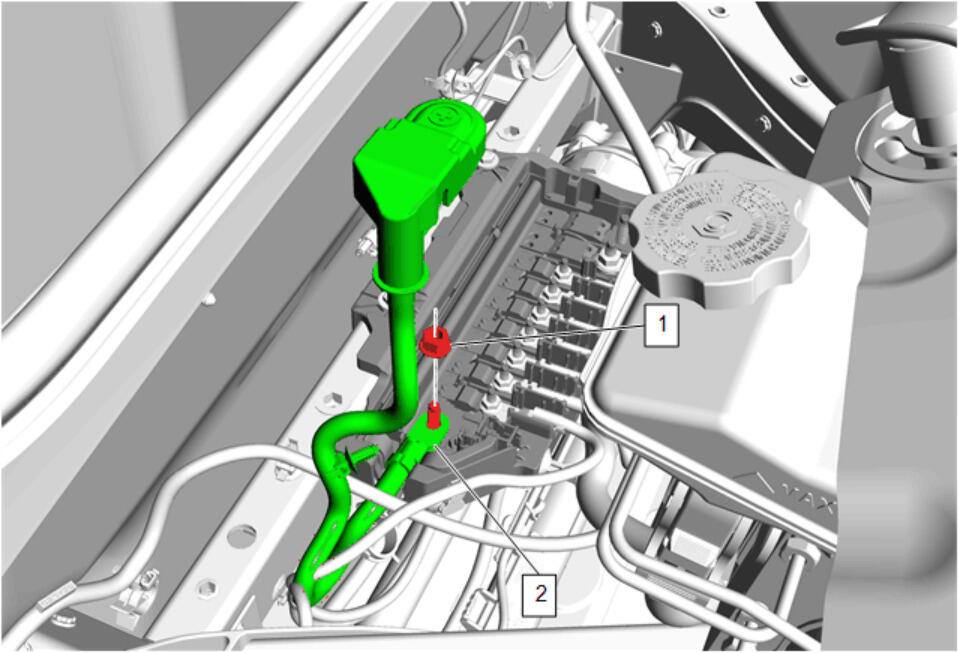

  6. GM5366181Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Junction Block Cable Nut (1) - Remove

  7. Battery Positive Junction Block Cable (2) - Remove

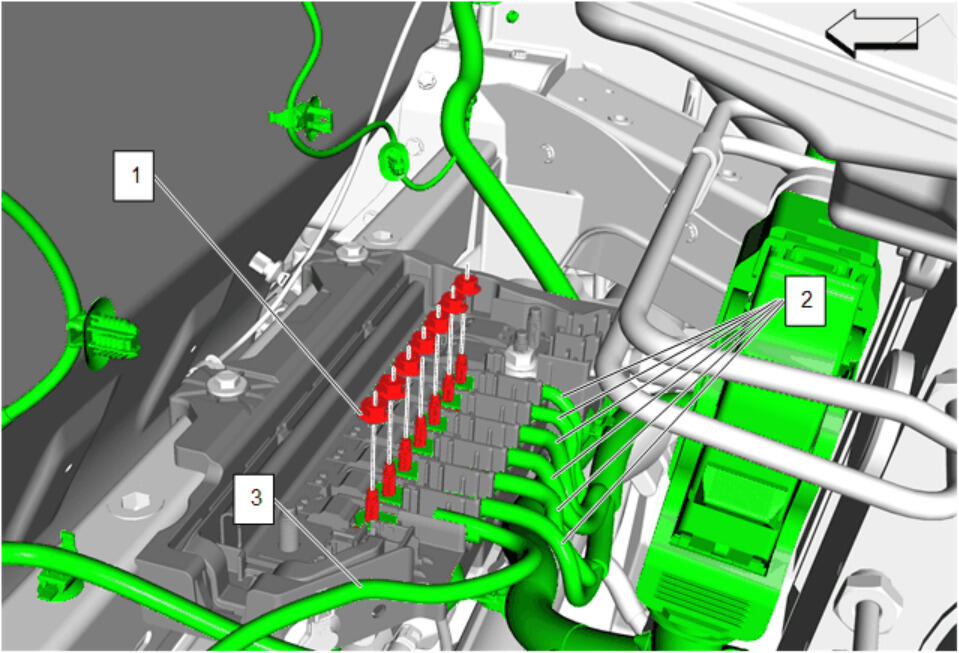

  8. GM5366599Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Junction Block Cable Nut (1) - Remove [7x]

  9. Body Harness Cable (2) - Remove [6x]
  10. Power Steering Cable (3) - Remove

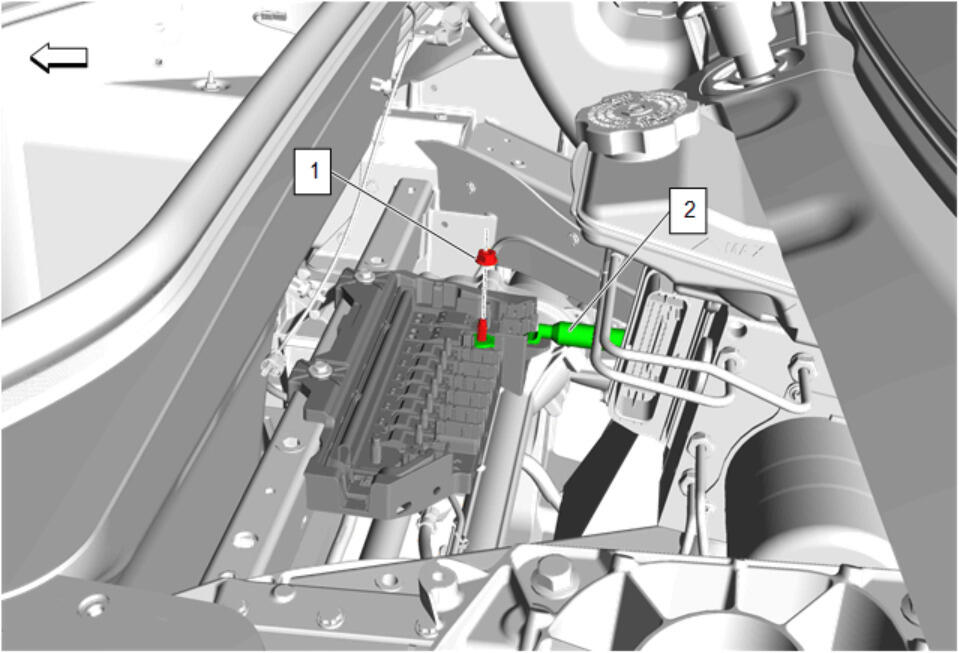

  11. GM5366673Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Nut (1) @ Battery Distribution Engine Compartment Fuse Block - Remove

  12. Battery Positive Cable (2) - Remove
  13. Disengage any retainers attached to the battery distribution engine compartment fuse block.

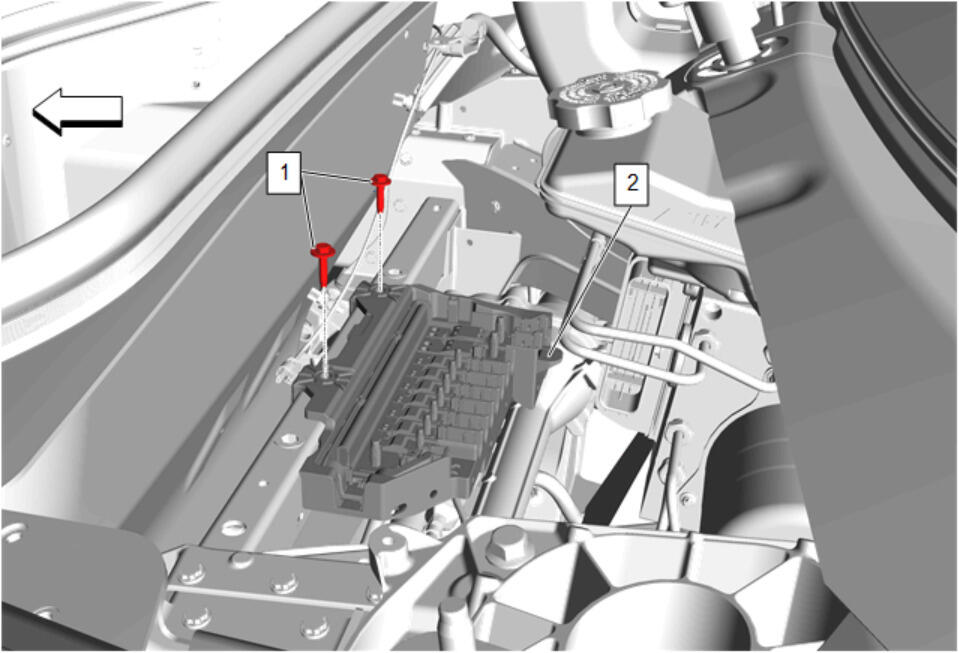

  14. GM5366683Courtesy of GENERAL MOTORS COMPANY

    Fuse Block Bracket Bolt (1) - Remove [2x]

  15. Battery Distribution Engine Compartment Fuse Block (2) - Remove
