Driver or Passenger Seat Adjuster Memory Module Replacement

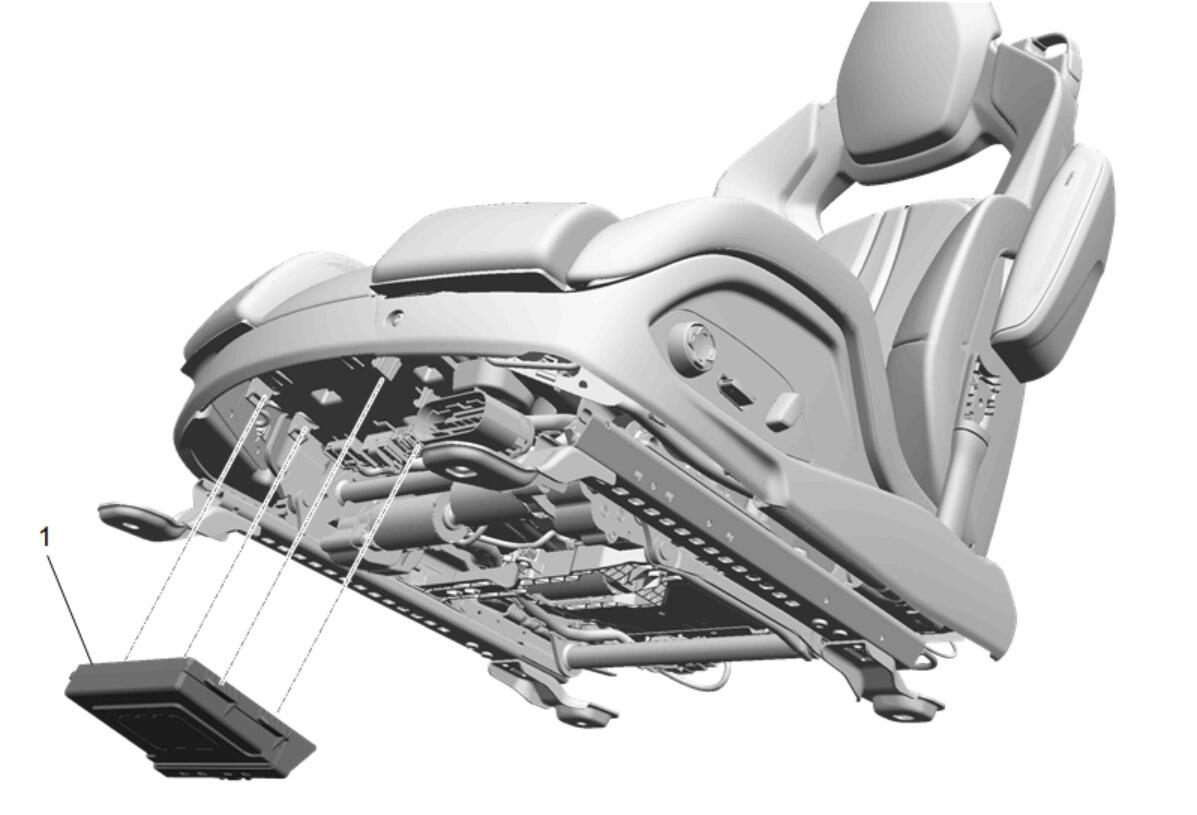

GM5367576Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Seat Removal and Installation
1 Driver or Passenger Seat Adjuster Memory Module

Procedure

  1. Release the retaining tabs.
  2. Disconnect all electrical connectors.
  3. Perform the necessary programming and setup procedure:Control Module References
