Front Side Door Window Front Channel Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Lower window all the way down. Front Side Door Trim Replacement Outside Rearview Mirror Applique Replacement

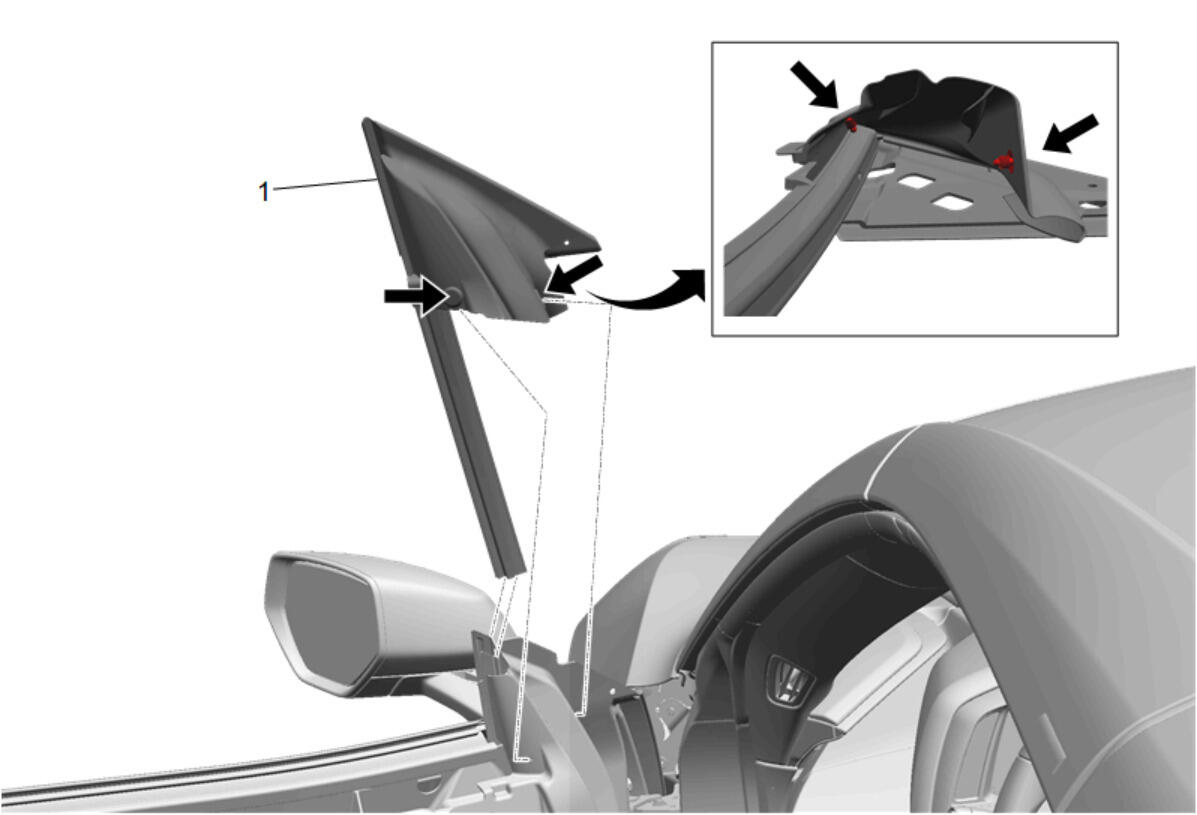

1	Front Side Door Window Front Channel NOTE: Apply a soapy water solution to the channel to help slide channel in position. Procedure Pull out the bottom of the channel to release the 2 retainers. Pull the channel up to remove from front side door window front channel retainer.

Callout

Component Name

Preliminary Procedures

Front Side Door Window Front Channel

NOTE:

Apply a soapy water solution to the channel to help slide channel in position.

Procedure

Pull out the bottom of the channel to release the 2 retainers.
Pull the channel up to remove from front side door window front channel retainer.
