Liftgate Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

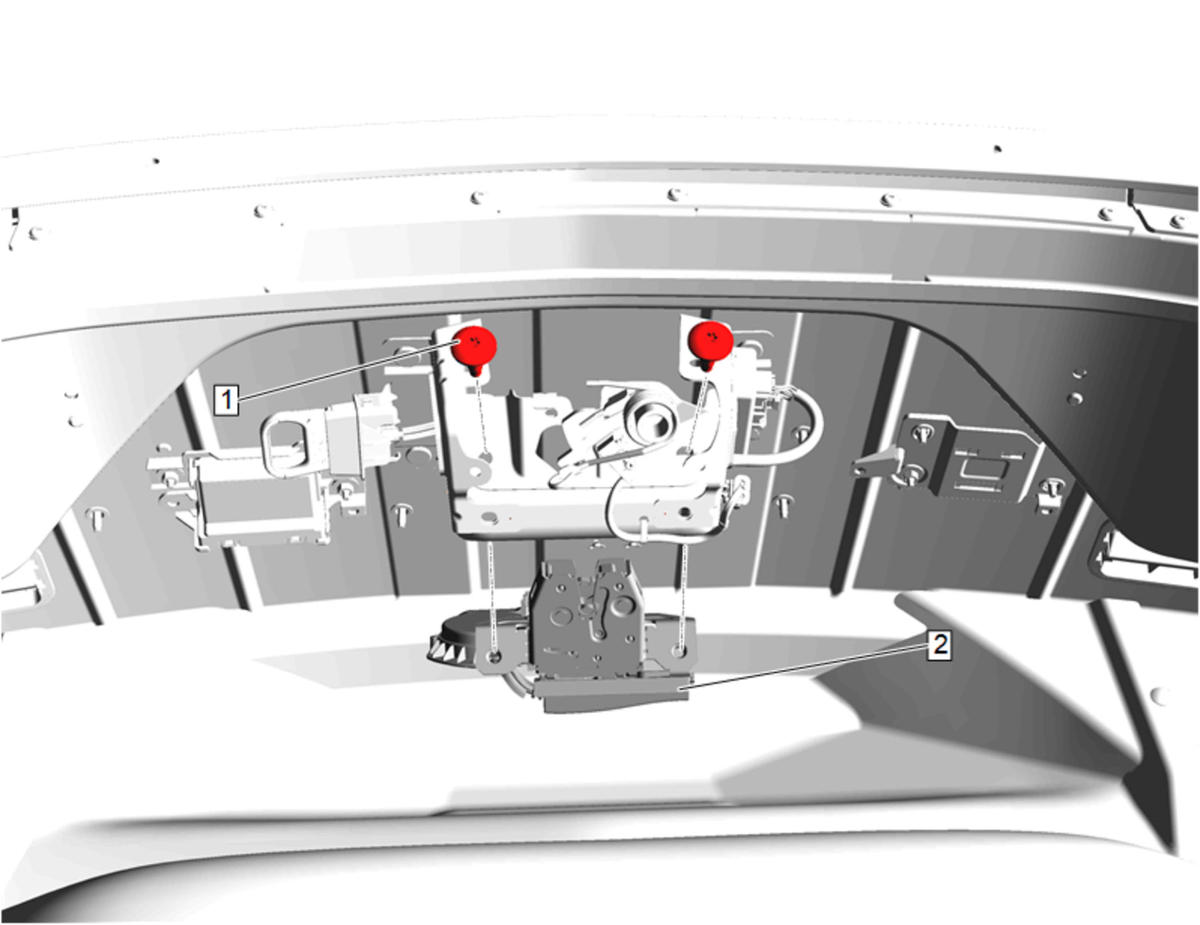

Callout	Component Name
Preliminary Procedure Rear Compartment Lid Lock Cylinder Replacement
1	Rear Compartment Lid Latch Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Compartment Lid Latch Procedure Disconnect the electrical connector. Release the auxiliary rear compartment latch release handle cable from the rear compartment latch.

Callout

Component Name

Rear Compartment Lid Latch Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Compartment Lid Latch

Procedure

Disconnect the electrical connector.
Release the auxiliary rear compartment latch release handle cable from the rear compartment latch.
