Rearview Driver Information Camera Replacement

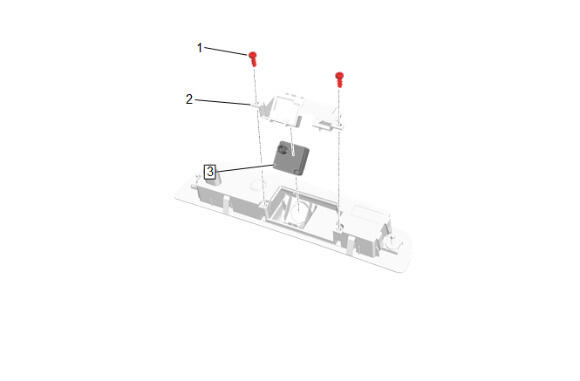

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear License Plate Lamp Module Replacement |
|
| 1 | Rearview Driver Information Camera Bracket Screw [2x]
CAUTION:
Refer to Fastener Caution . Tighten 0.52 N.m (5 lb in) |
| 2 | Rearview Driver Information Camera Bracket |
| 3 | Rearview Driver Information Camera
NOTE:
Observe the mounting and location of the camera to ensure proper reinstallation. |
