Installation Procedure

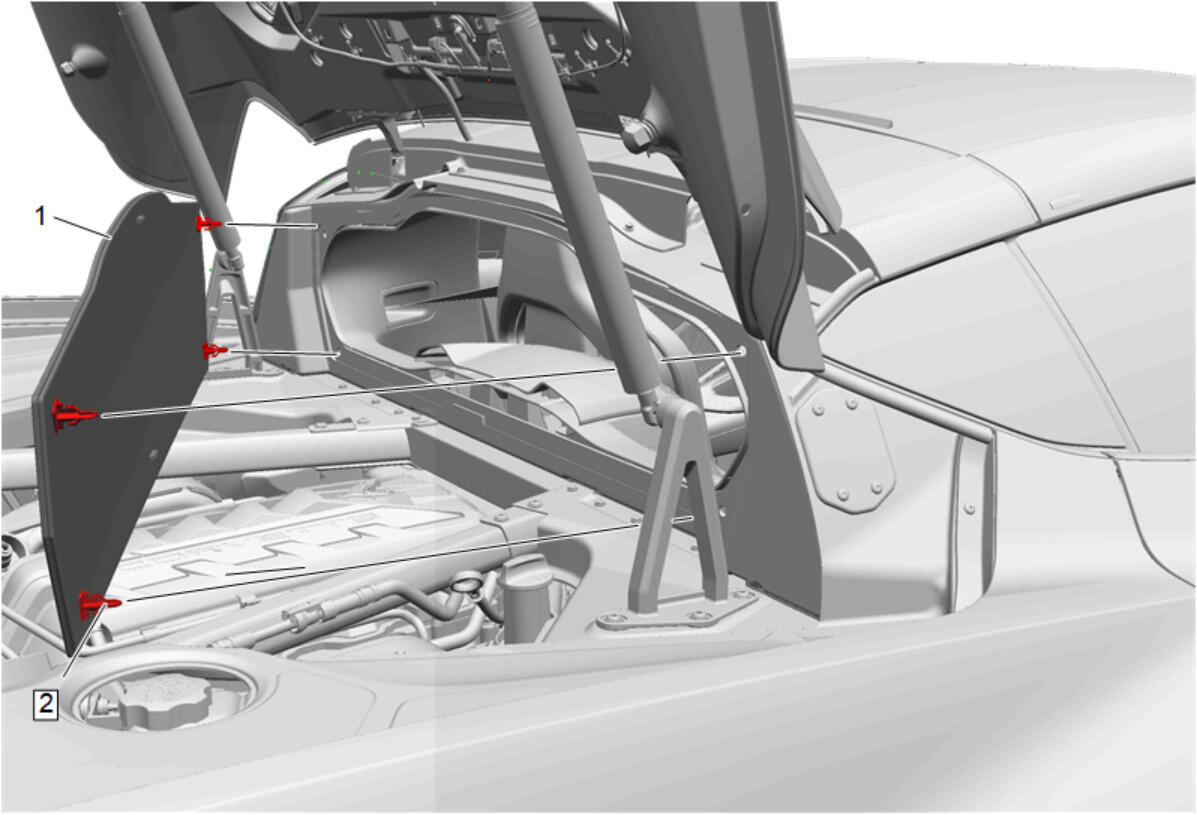

  1. GM5375344Courtesy of GENERAL MOTORS COMPANY

    Install the intermediate window (1). Adhesive Installation of Encapsulated Stationary Windows

  2. Remove the double layer of masking tape around the perimeter of the painted surfaces.
  3. Remove any remaining adhesive residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Wipe the surface dry with a clean lint-free towel.
  4. Close the rear compartment lid.
