Installation Procedure

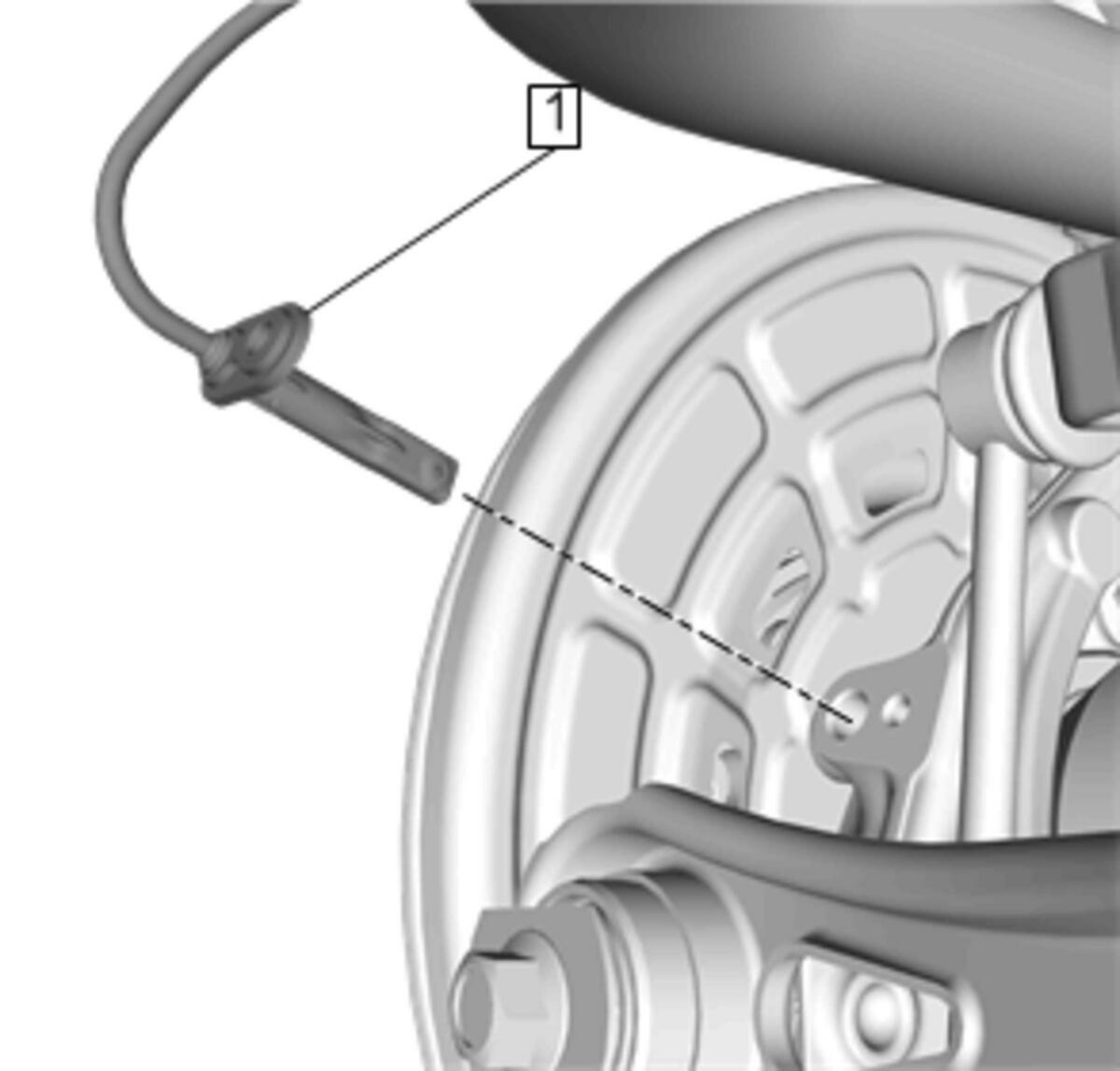

  1. GM4115878Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor (1) - Install

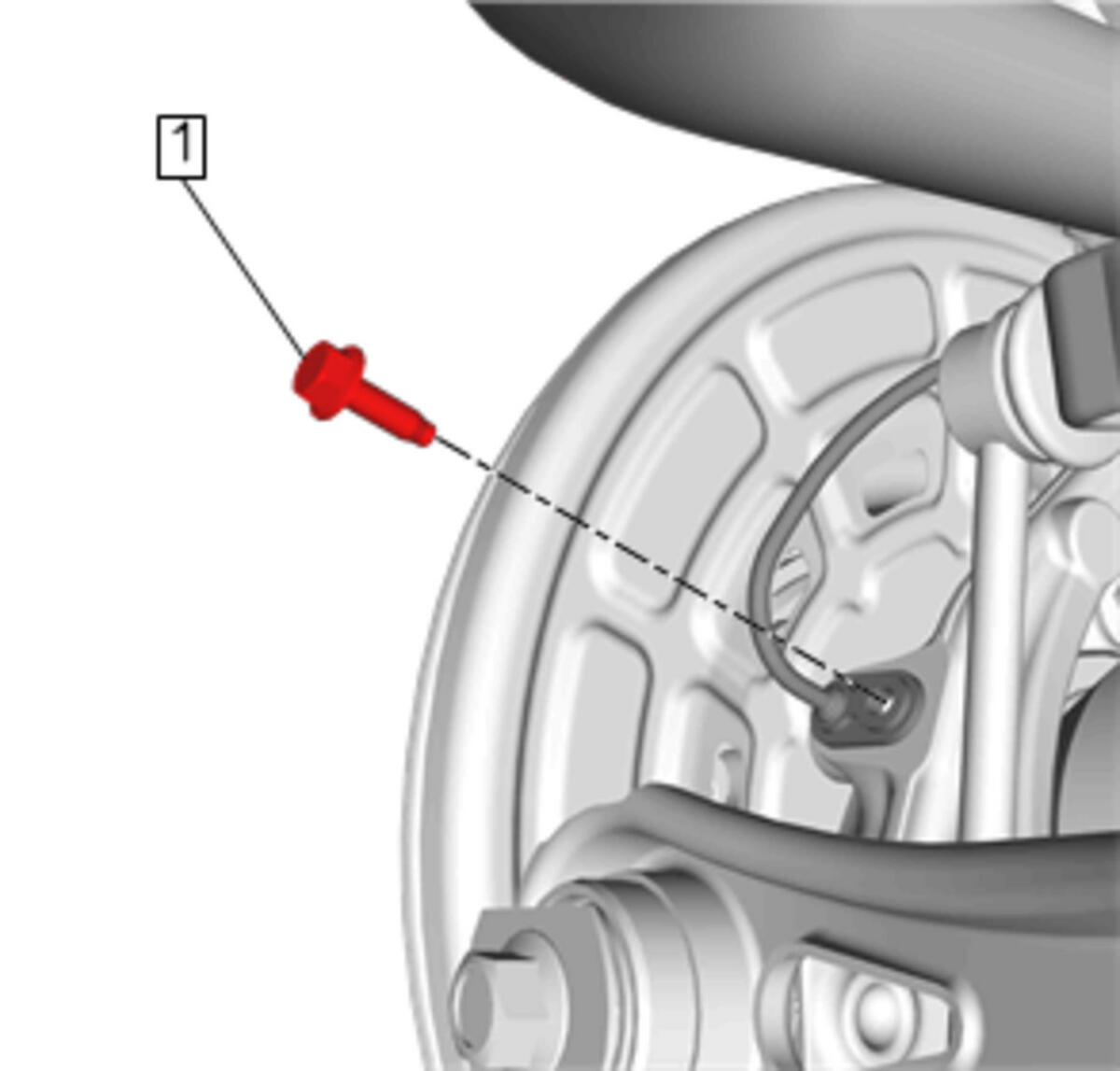

  2. GM4115875Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Rear Wheel Speed Sensor Bolt (1) - Install and tighten 10 N.m (89 lb in)

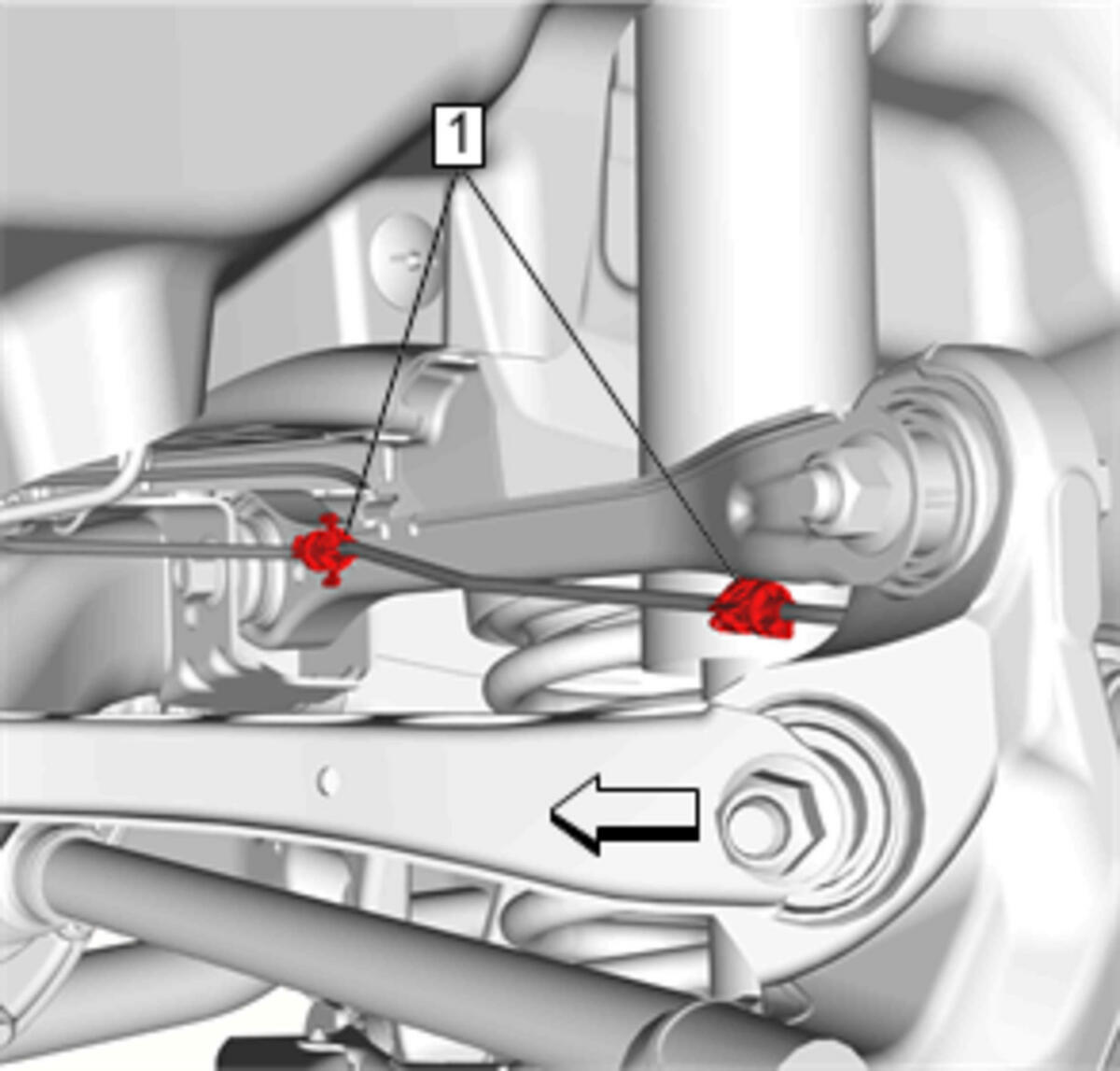

  3. GM4115871Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Secure [2x]

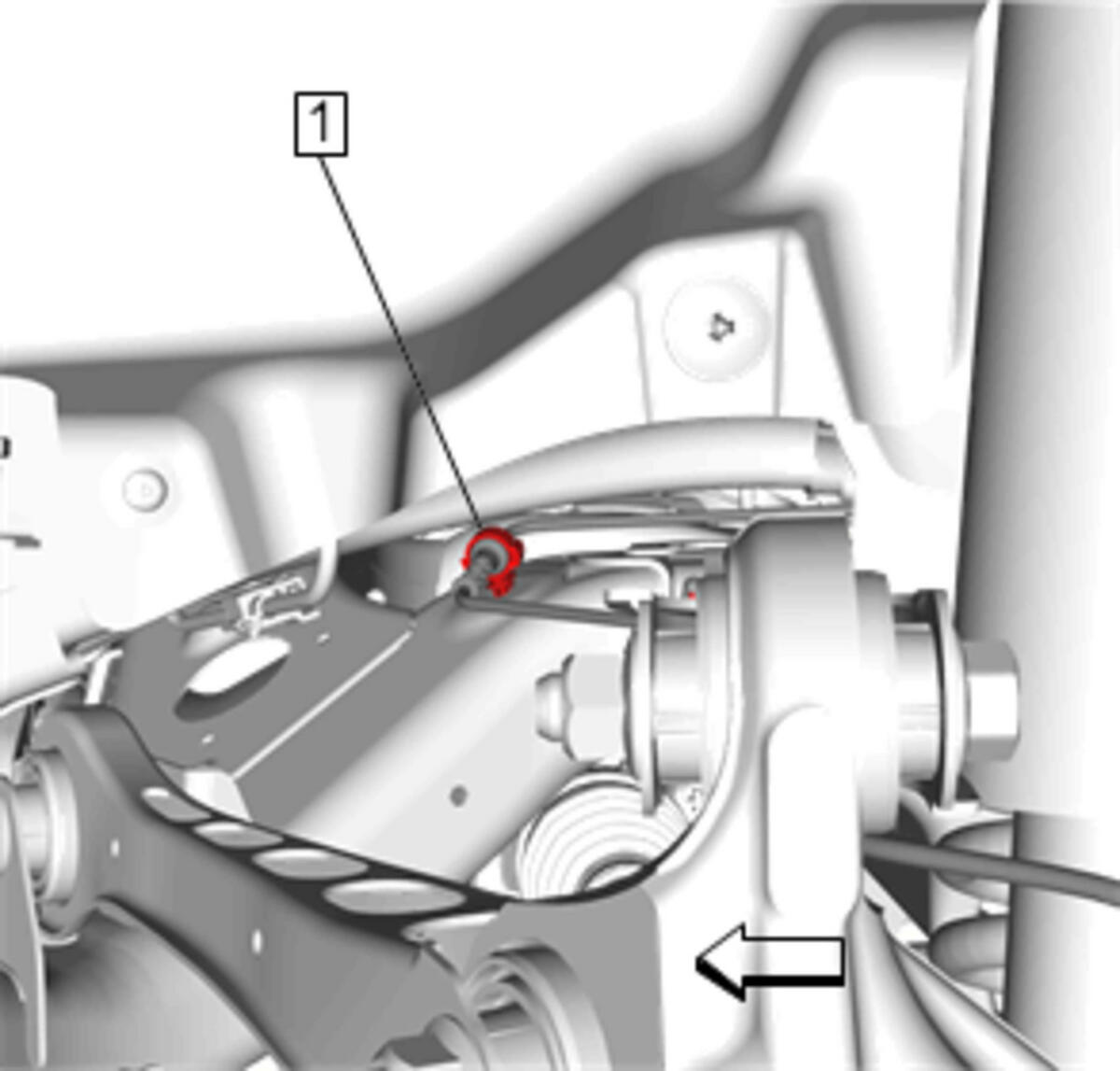

  4. GM4115864Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Secure

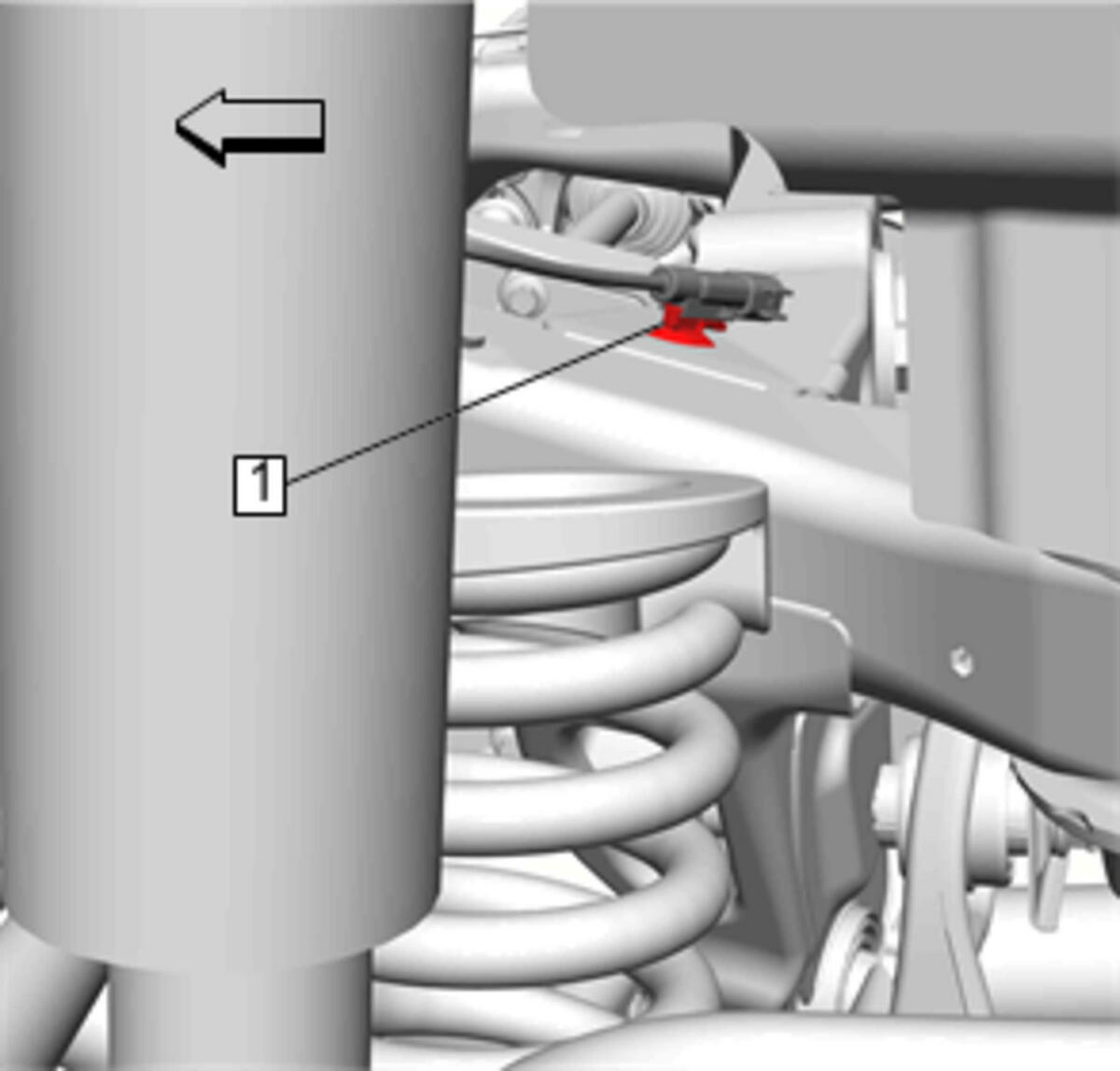

  5. GM4115861Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor Electrical Connect or Retainer (1) - Secure

  6. Rear Wheel Speed Sensor Electrical Connector - Connect
  7. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  8. Perform the diagnostic system check. Diagnostic System Check - Vehicle
