Removal Procedure

WARNING:

Refer to SIR Warning

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning

  1. Disable the SIR system. SIR Disabling and Enabling
  2. GM4780360Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag (1) - Remove - Steering Wheel Airbag Replacement

  3. Disconnect the electrical connectors.

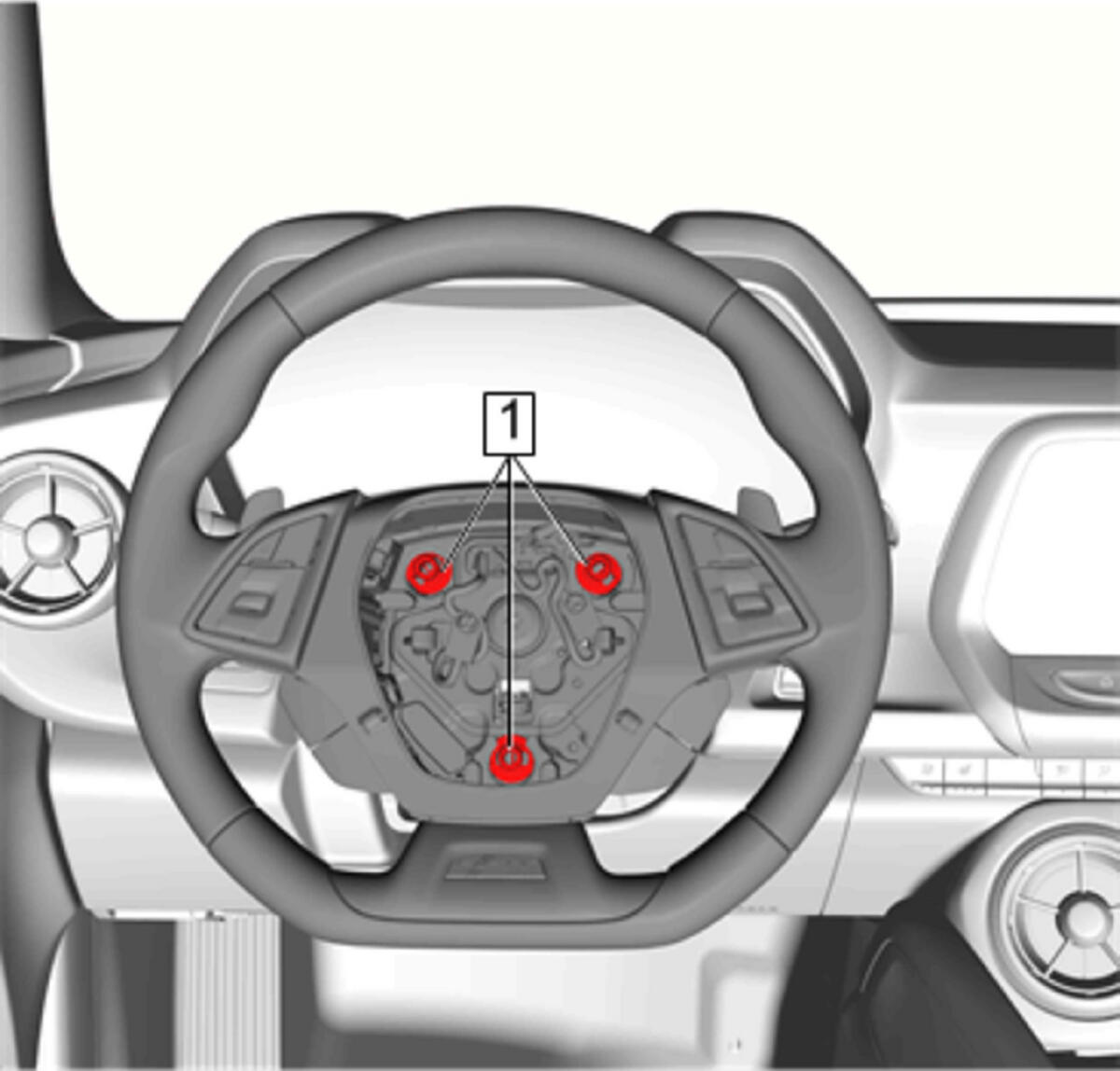

  4. GM4780072Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    When removing the Drivers Airbag (DAB), the airbag guide sleeves may get stuck in the steering wheel armature. Failure to remove the guide sleeves from the armature and properly reinstall them onto the DAB may result in damage or inoperable components related to airbag retention to the steering wheel. DAB retention failure during airbag deployment could cause injury.

    Ensure the airbag guide sleeves (1) are removed with the steering wheel airbag and not stuck in the steering wheel armature.

  5. GM4780087Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Bolt (1) - Remove

  6. Install the steering wheel bolt until 2 to 3 threads are engaged.
  7. Wiggle the steering wheel until the wheel disengages completely.
  8. Steering Wheel Bolt (1) - Remove
  9. Steering Wheel (2) - Remove
  10. Transfer components as necessary.
