Intermediate Steering Shaft Boot Replacement

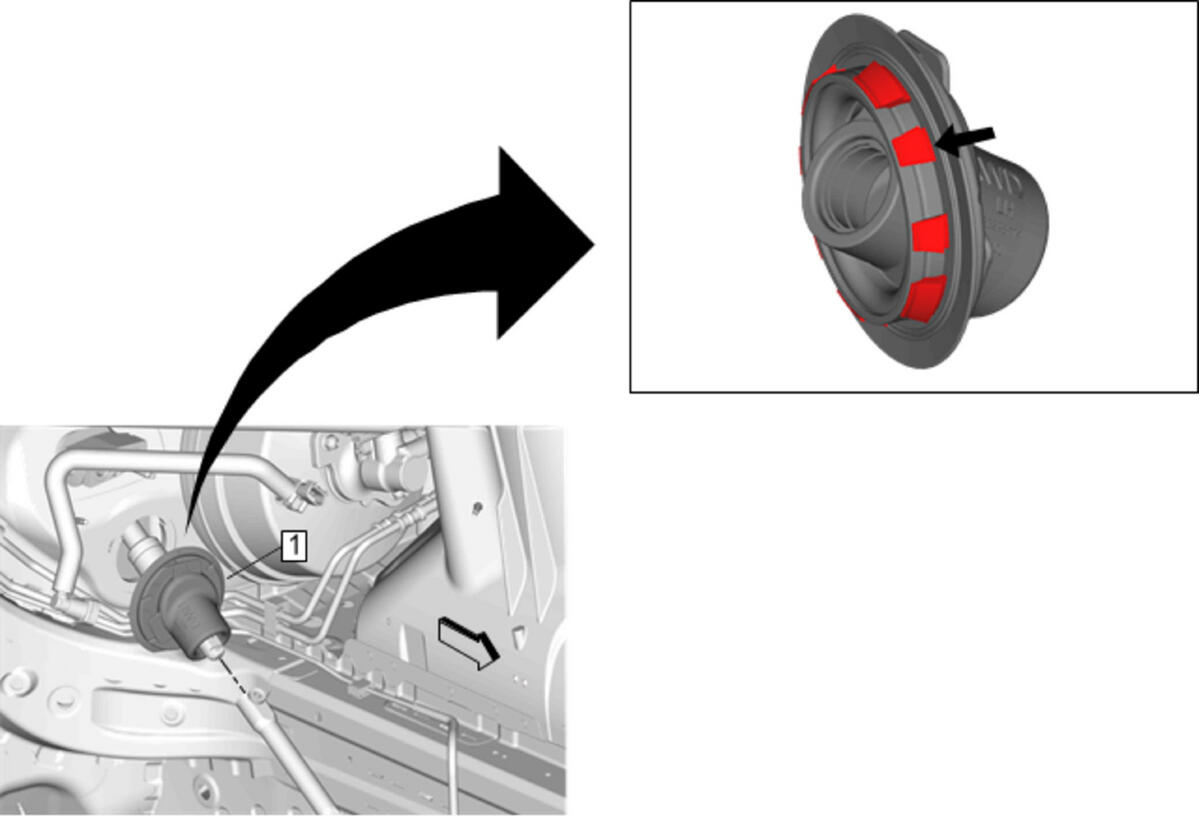

GM4212779Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Upper Intermediate Steering Shaft @ Mid Intermediate Steering Shaft - Separate - Upper Intermediate Steering Shaft Replacement
1 Intermediate Steering Shaft Boot

Procedure

  1. To remove the intermediate steering shaft boot, lift the lip of the boot and use an appropriate tool to release the plastic clips holding the boot in place.
  2. Slide the intermediate steering shaft boot down and off of the upper intermediate steering shaft.
  3. When installing the intermediate steering shaft boot, ensure the boot is aligned under the hood by using the arrow on the boot as a guide.
